Simpson Anchors | SKU:
DIAB75C

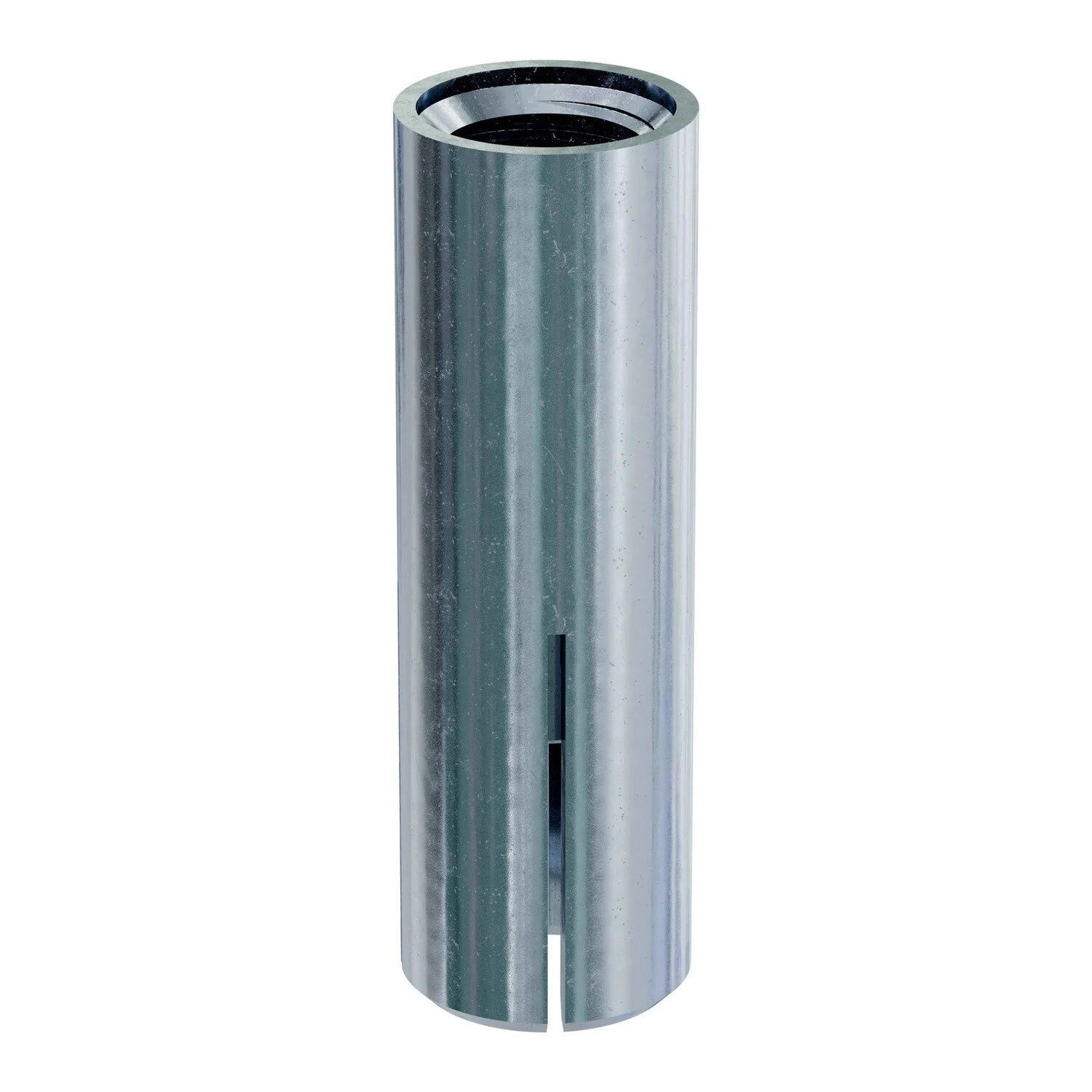

Simpson Strong-Tie DIAB75C (3-1/8") Coil-Thread Drop-In (DIAB) Carbon Steel Internally Threaded Anchorr (20 Pack)
$72.38
$75.52
Unit price
/
Unavailable
Description
Description
Simpson DIAB75C Description
The Simpson DIAB75C Drop-In Anchor is designed for 3/4-inch coil-thread rods, featuring a zinc-plated finish for durability and corrosion resistance.
Simpson DIAB75C Includes
- (20) Drop-In Anchor for 3/4-inch Rod
Simpson DIAB75C Features
- Positive-set marking system indicates when anchor is properly set
- Lipped drop-in version available for flush installation
- Hand- and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
- Available in coil-thread version for 1/2" and 3/4" coil-thread rod
Simpson DIAB75C Applications
- Mechanical anchoring for electrical, plumbing, and general construction
- Securing threaded rods in concrete and masonry
- Suitable for overhead installations without cleaning debris
Simpson DIAB75C Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit or fixed-depth bit
- Insert the anchor into the hole and tap with a hammer until flush against the surface
- Using the designated Drop-In setting tool, drive the expander plug towards the bottom of the anchor
- Insert bolt or threaded rod ensuring minimum thread engagement equal to the nominal diameter of the threaded insert
Simpson DIAB75C Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Rod Diameter | 3/4" |
| Length | 3-1/8" |
| Drill Bit Diameter | 1" |
| Quantity | 20 |
NOTE: Oversized holes will reduce the anchor's load capacity.
