Simpson Anchors | SKU:
DIABL50

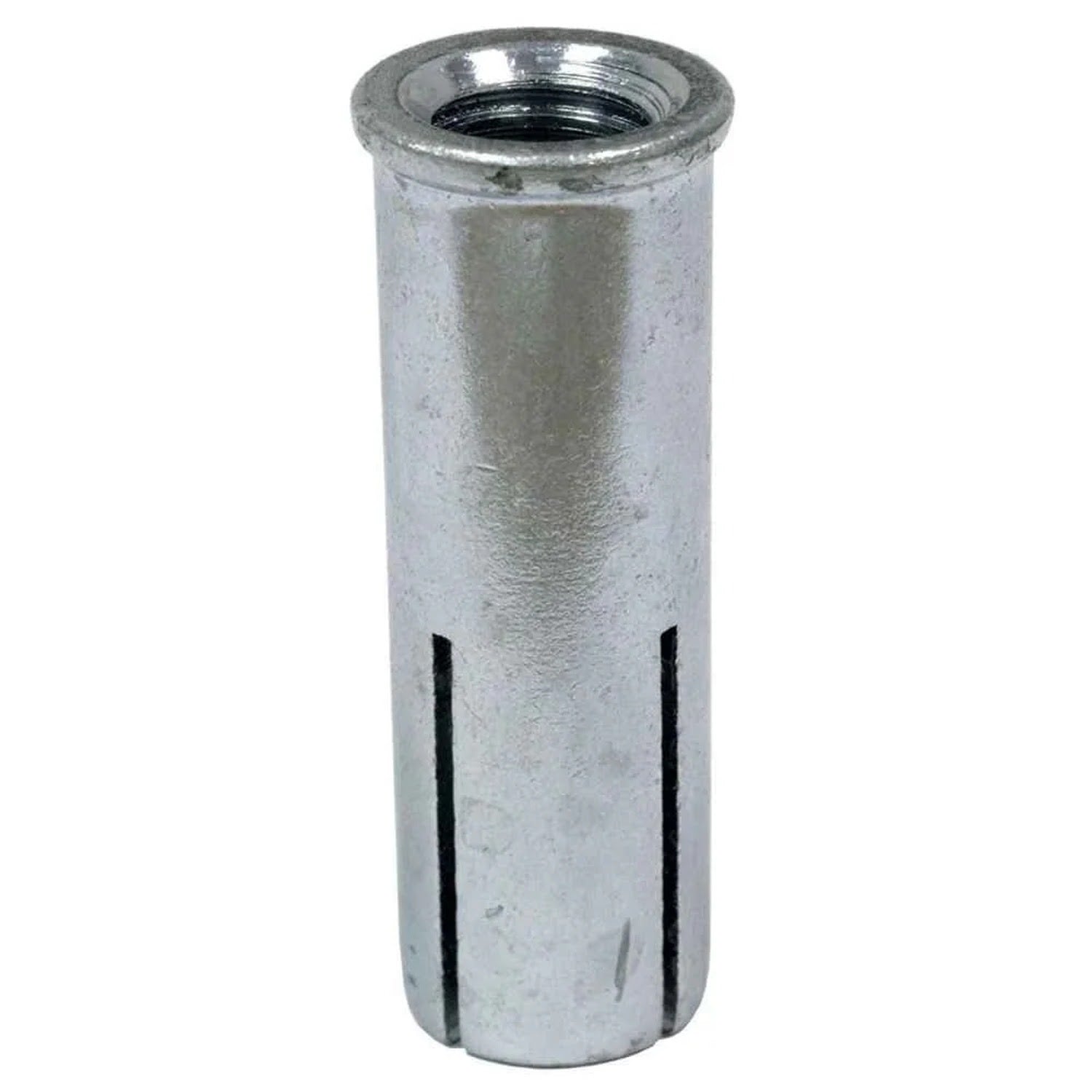

Simpson Strong-Tie DIABL50 (1/2") Lipped Drop-In (DIAB) Carbon Steel Internally Threaded Anchor (50 Pack)
$39.82
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DIABL50 Description
The Simpson Strong-Tie DIABL50 Lipped Drop-In Anchor is designed for secure and flush installation, featuring a zinc-plated finish and compatibility with 1/2-inch rods.
Simpson Strong-Tie DIABL50 Includes
- (50) Lipped Drop-In Anchor
Simpson Strong-Tie DIABL50 Features
- Positive-set marking system indicates when anchor is properly set
- Lipped drop-in version available for flush installation
- Hand- and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
- Available in coil-thread version for 1/2" and 3/4" coil-thread rod
Simpson Strong-Tie DIABL50 Applications
- Mechanical installations requiring secure anchoring
- Electrical setups needing reliable anchor points
- Plumbing systems requiring flush-mounted anchors
Simpson Strong-Tie DIABL50 Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit or fixed-depth bit.
- Insert the anchor into the hole and tap with a hammer until flush against the surface.
- Using the designated Drop-In setting tool, drive the expander plug towards the bottom of the anchor until properly set.
- Insert bolt or threaded rod ensuring minimum thread engagement equal to the nominal diameter of the threaded insert.
Simpson Strong-Tie DIABL50 Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Length | 2" |
| Accepts rod size | 1/2" |
| Drill bit size | 5/8" |
| Thread length | 3/4" |
| Type | Lipped |
NOTE: Oversized holes will reduce the anchor's load capacity.
