Simpson Anchors | SKU:
DSP

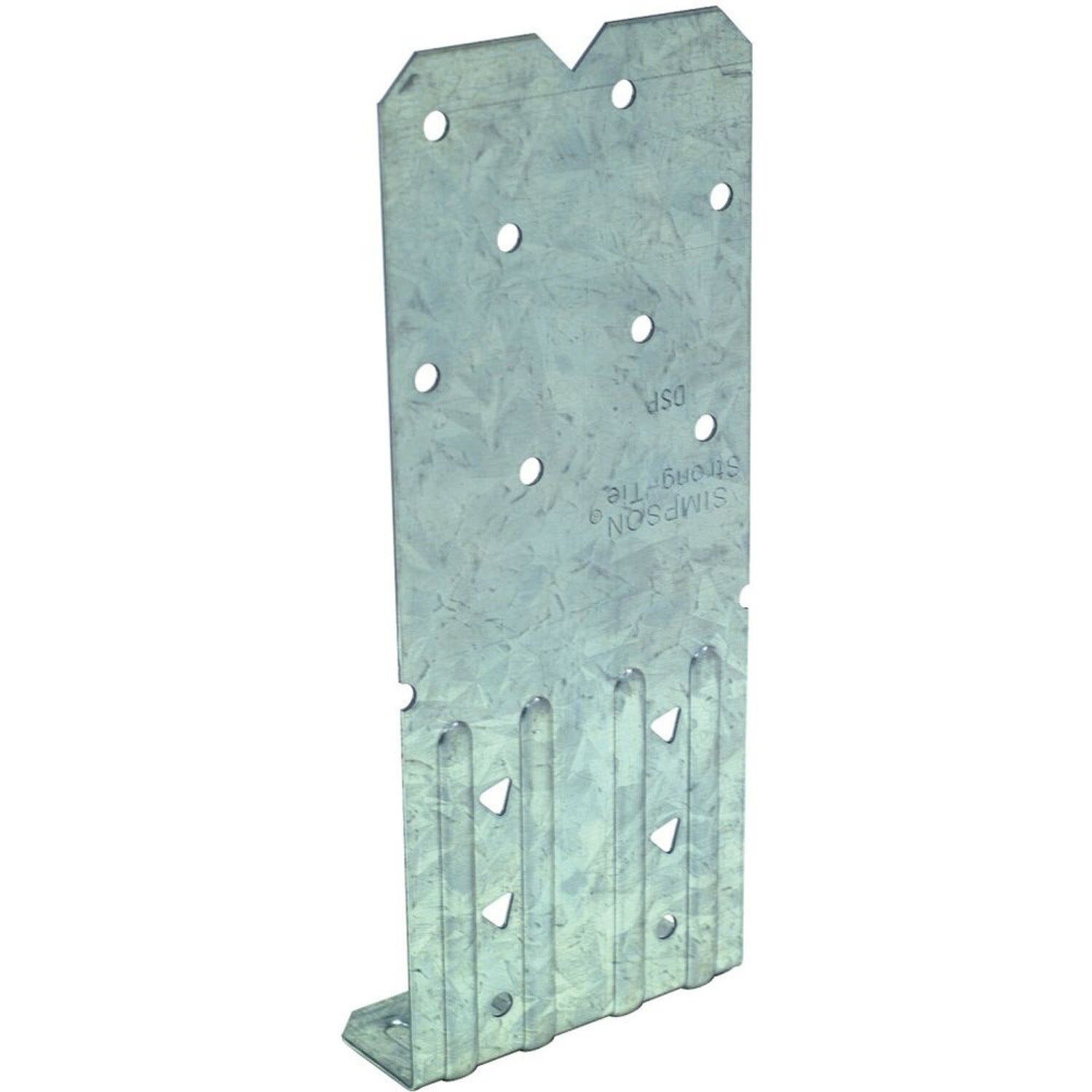

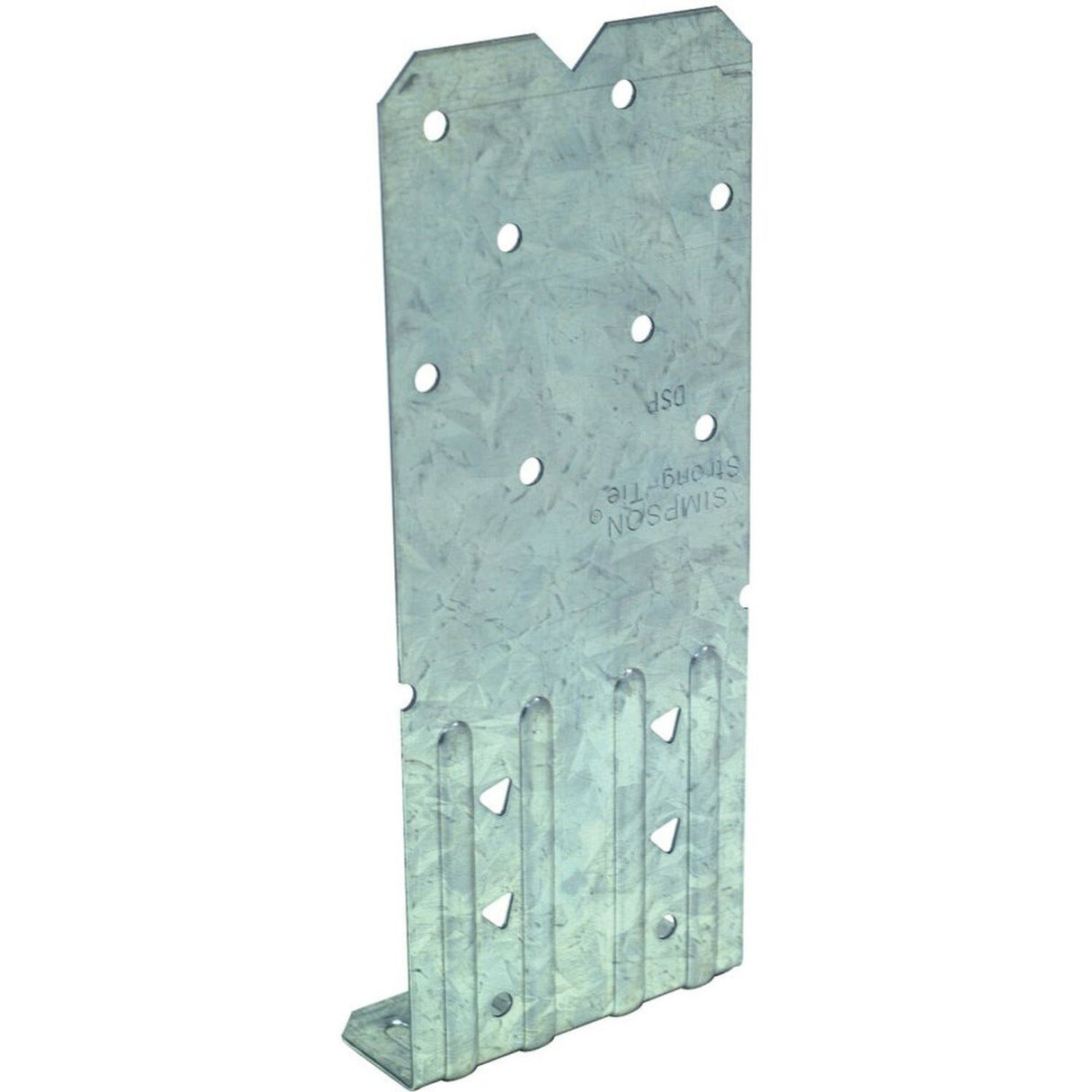

Simpson Strong-Tie DSP (18-Gauge Galvanized) Double-Stud Plate Tie
$2.02
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DSP Description
The DSP Double-Stud Plate Tie is a versatile connector designed for cold-formed steel applications, featuring a galvanized finish and 18-gauge material for durability.
Simpson Strong-Tie DSP Includes
- (1) DSP Double-Stud Plate Tie
Simpson Strong-Tie DSP Features
- Embossments provide strength at the bend
- Can be installed before or after placement of wall
Simpson Strong-Tie DSP Applications
- Cold-Formed Steel: Ideal for structural connections in steel framing
Simpson Strong-Tie DSP Installation Overview
- Use all specified fasteners as per guidelines
- Top plate installation: Fill all round and triangle holes
- Sill plate installation: Fill all round holes
Simpson Strong-Tie DSP Specifications
| Material | 18 gauge |
| Finish | Galvanized or ZMAX coating |
| Width | 2 3/4 in. |
| Length | 6 11/16 in. |
| Coating/Material | Zinc Galvanized, G90 |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
