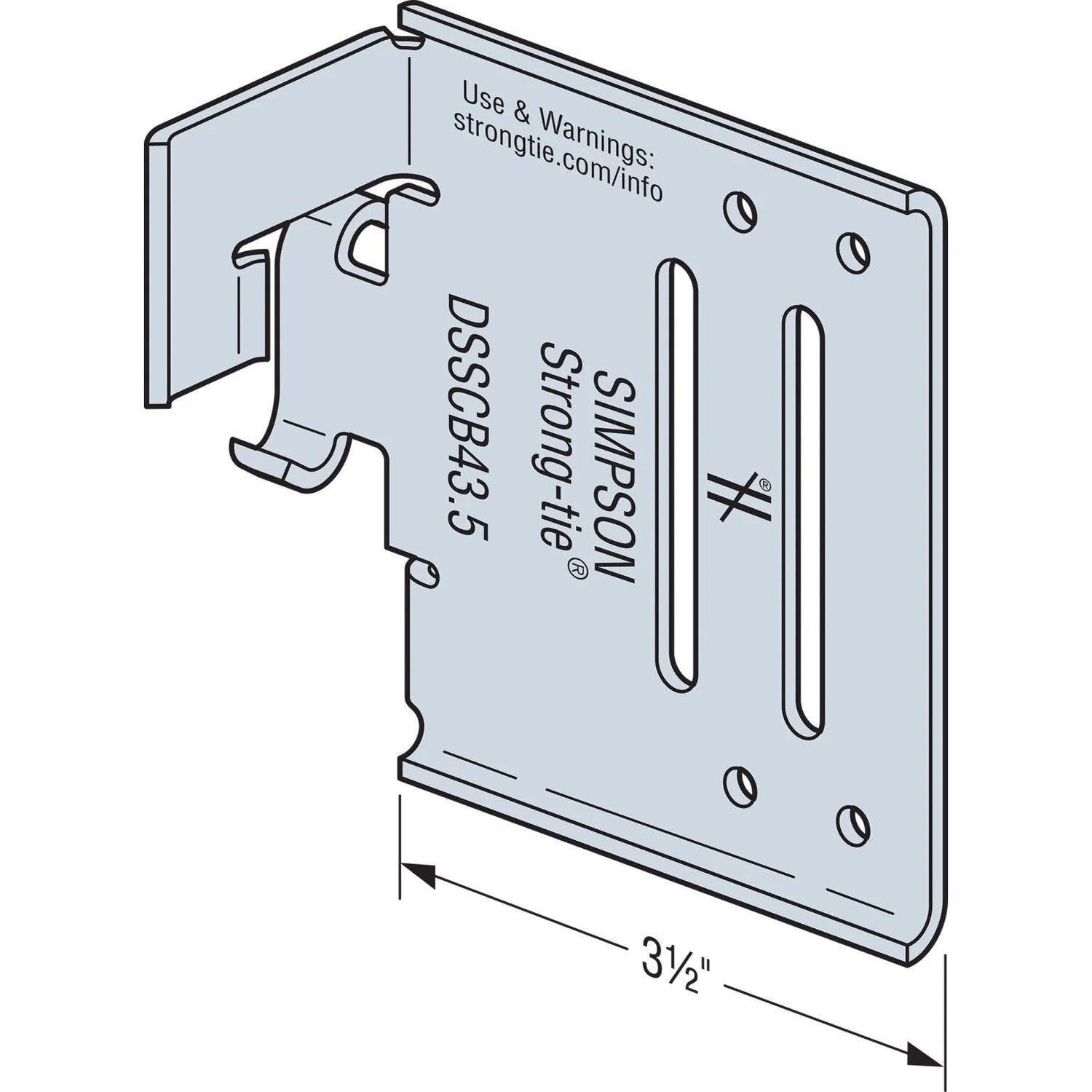

Simpson Strong-Tie DSSCB43.5-KT25 Description
The DSSCB43.5-KT25 Bypass Framing Drift Strut Connector Kit is designed for cold-formed steel construction, providing reliable anchorage and accommodating horizontal building drift.
Simpson Strong-Tie DSSCB43.5-KT25 Includes
- (25) connectors
- (55) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie DSSCB43.5-KT25 Features
- Prepunched slots for upward and downward deflection
- Precision-manufactured shouldered screws to prevent overdriving
- Compatible with 7/8" and 1 5/8" strut channels
- Maximum slide-clip standoff distance of 3 1/8" for 7/8" struts
- Pre-engineered design solutions for channel strut anchorage
Simpson Strong-Tie DSSCB43.5-KT25 Applications
- Cold-formed steel construction anchorage
- Panelized construction for simplified installation
- Slide-clip and fixed-clip applications
Simpson Strong-Tie DSSCB43.5-KT25 Installation Overview
- Use the specified type and number of fasteners
Simpson Strong-Tie DSSCB43.5-KT25 Specifications
| Material | Carbon Steel |
| Finish | Galvanized (G90) |
| Thickness | 97 mil (12 ga.) |
| Weight | 13.3 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
819302
