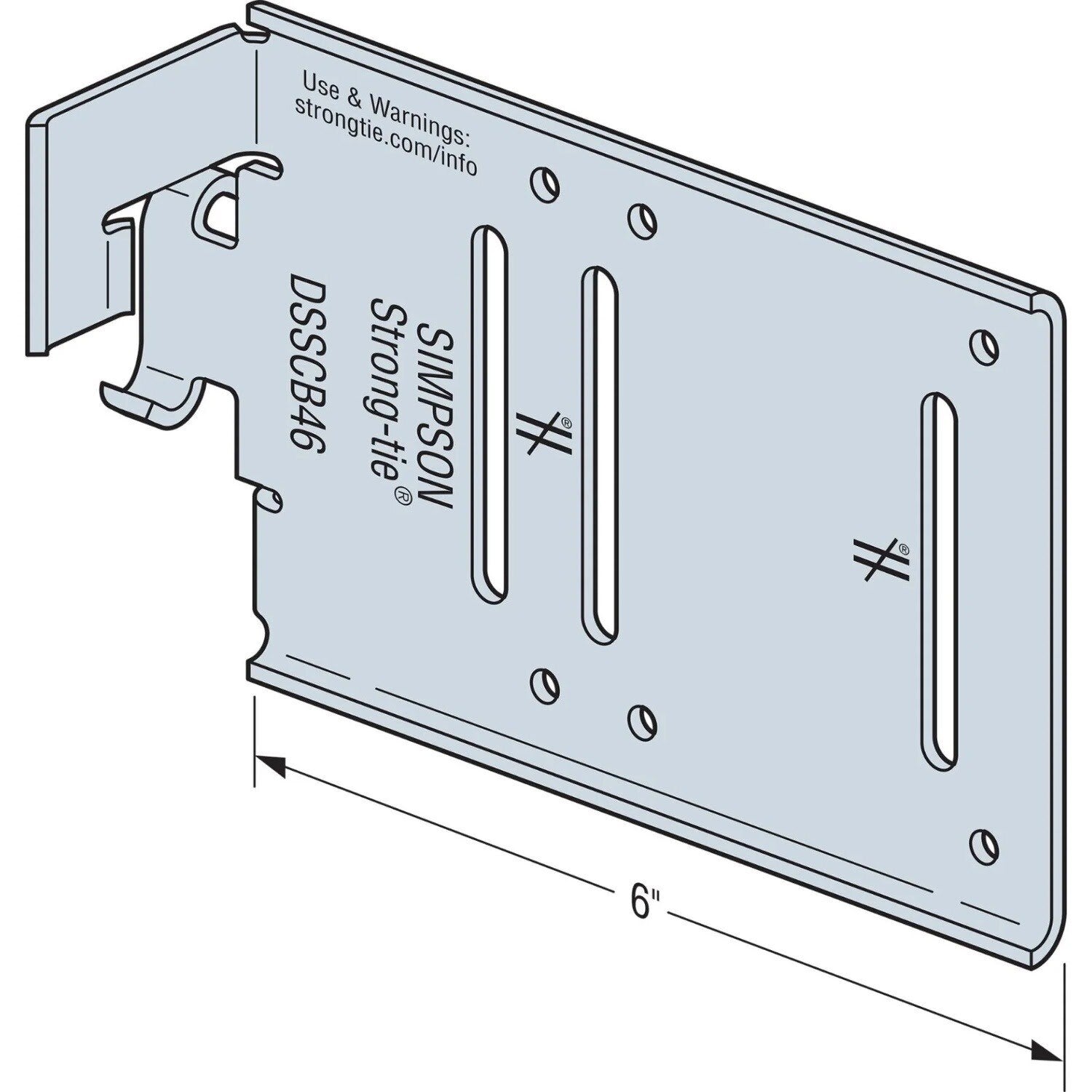

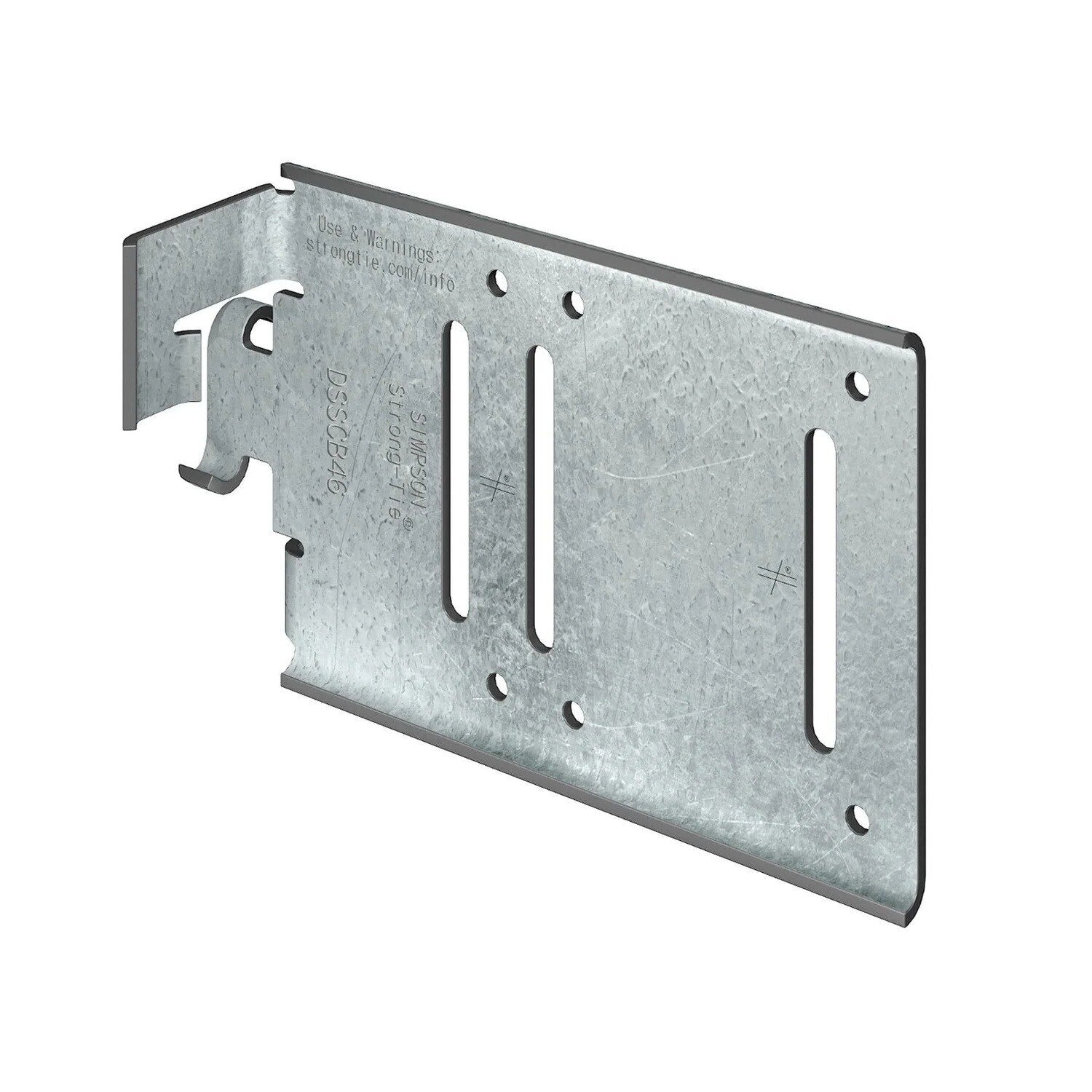

Simpson Strong-Tie DSSCB46-KT25 Description
The DSSCB46-KT25 is a bypass framing drift strut connector kit designed for cold-formed steel construction, providing reliable anchorage and accommodating horizontal building drift.
Simpson Strong-Tie DSSCB46-KT25 Includes
- (25) connectors
- (83) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie DSSCB46-KT25 Features
- Prepunched slots for upward and downward deflection
- Precision-manufactured shouldered screws to prevent overdriving
- Compatible with 7/8" and 1 5/8" strut channels
- Optional pre-cast concrete inserts for flush mounting
- Pre-engineered design solutions for channel strut anchorage
Simpson Strong-Tie DSSCB46-KT25 Applications
- Cold-formed steel construction anchorage
- Panelized construction for bypass framing
- Horizontal building drift accommodation
Simpson Strong-Tie DSSCB46-KT25 Installation Overview
- Use the specified type and number of fasteners
Simpson Strong-Tie DSSCB46-KT25 Specifications
| Material | Carbon Steel |
| Finish | Galvanized (G90) |
| Thickness | 97 mil (12 ga.) |
| Packaging Quantity | 25 |
| Weight | 21.1 lb |
Toolup Part # :
819301
