Simpson Anchors | SKU:
DSVT212R80

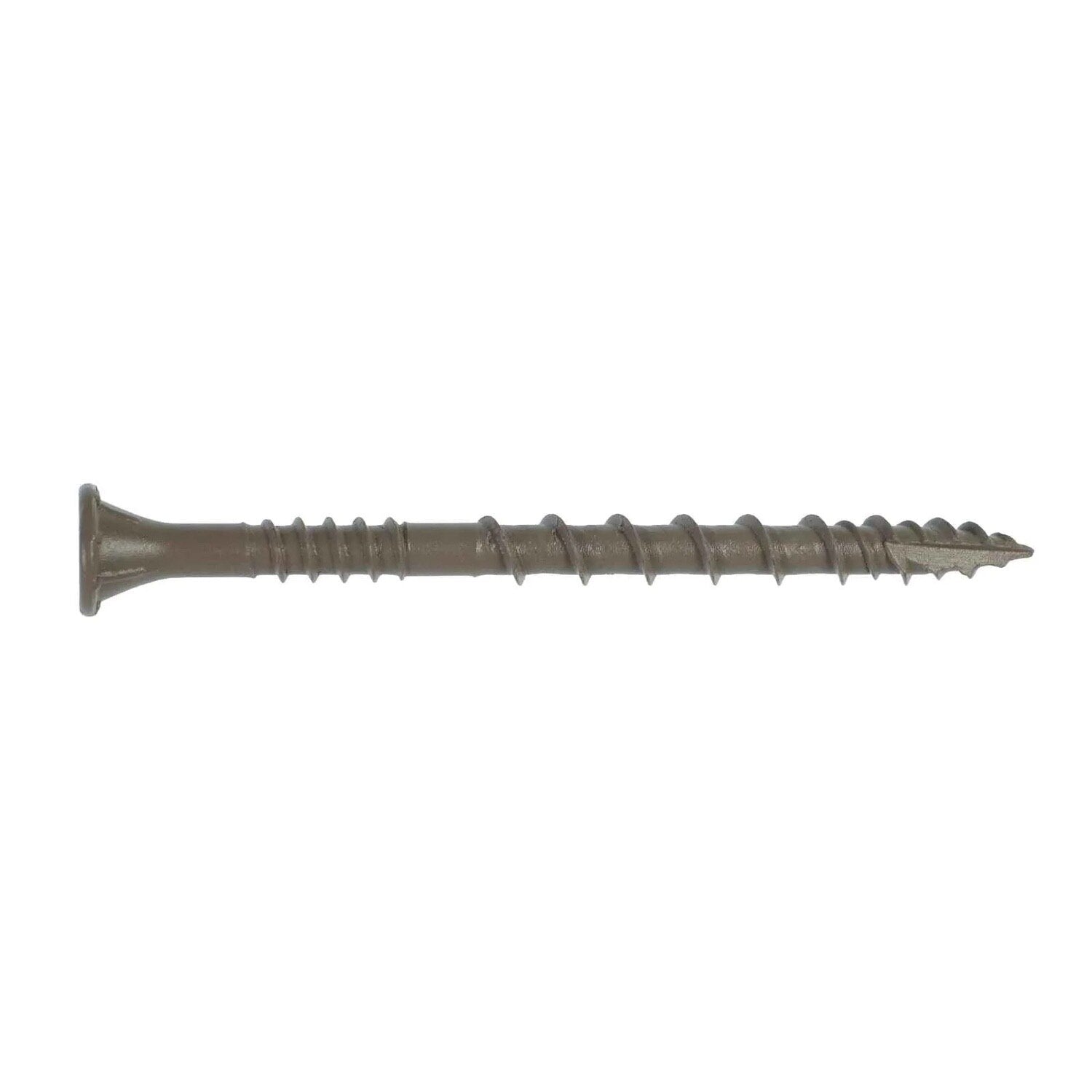

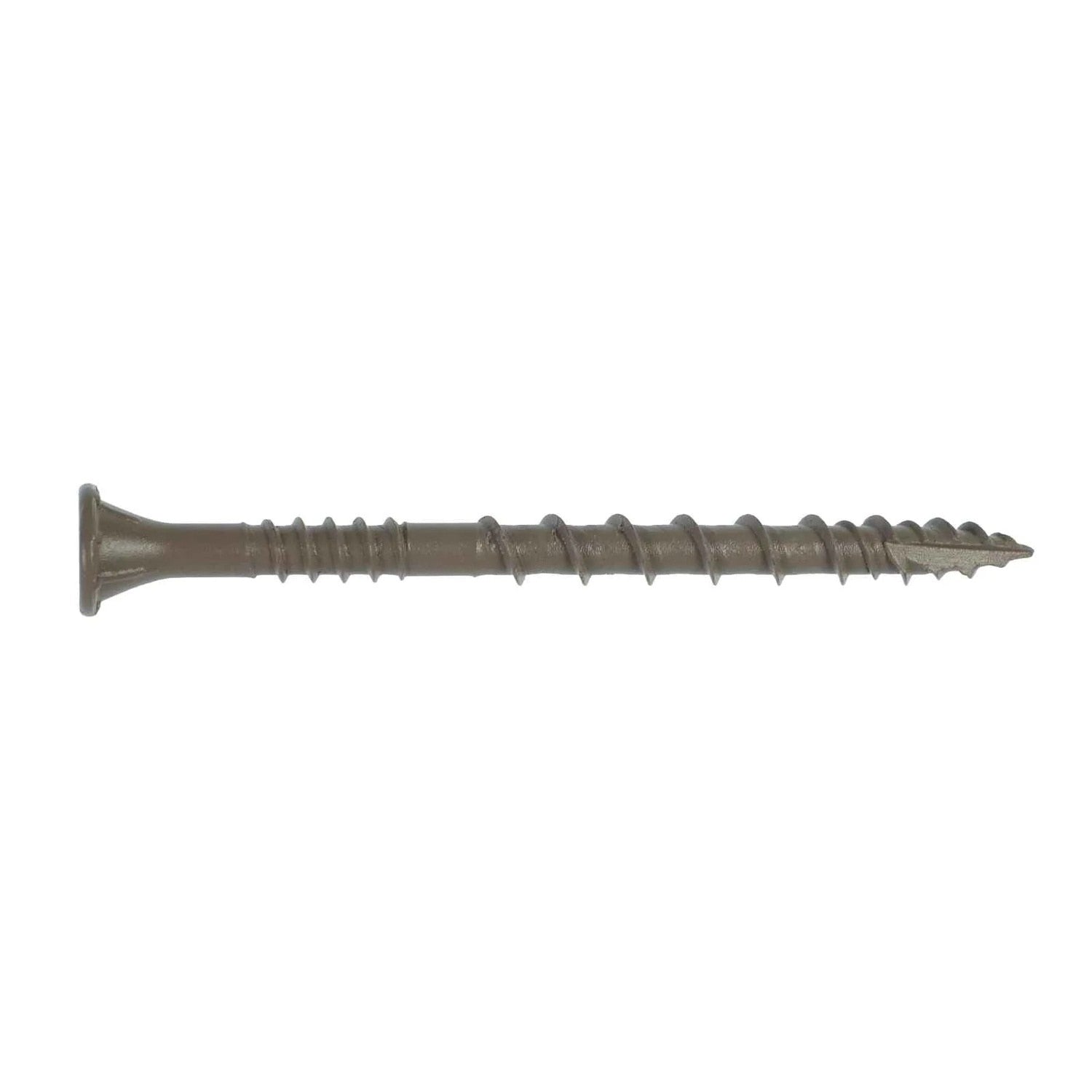

Simpson Strong-Tie DSVT212R80 Deck-Drive (#10 x 2-1/2") T25 DSV Quik Guard Wood Screw, Flat Head, Tan (80 Pack)
$8.62
Unit price
/
Unavailable
Description
Description
Simpson DSVT212R80 Description
The Deck-Drive DSV Wood Screw is designed for fastening preservative-treated decking, offering corrosion resistance and a clean finish.
Simpson DSVT212R80 Includes
- (80) #10 x 2-1/2 in. Tan T-25 DSV Wood Screw
Simpson DSVT212R80 Features
- Load rated for shear, pull-through, and withdrawal resistance
- Low-torque threads for efficient battery usage

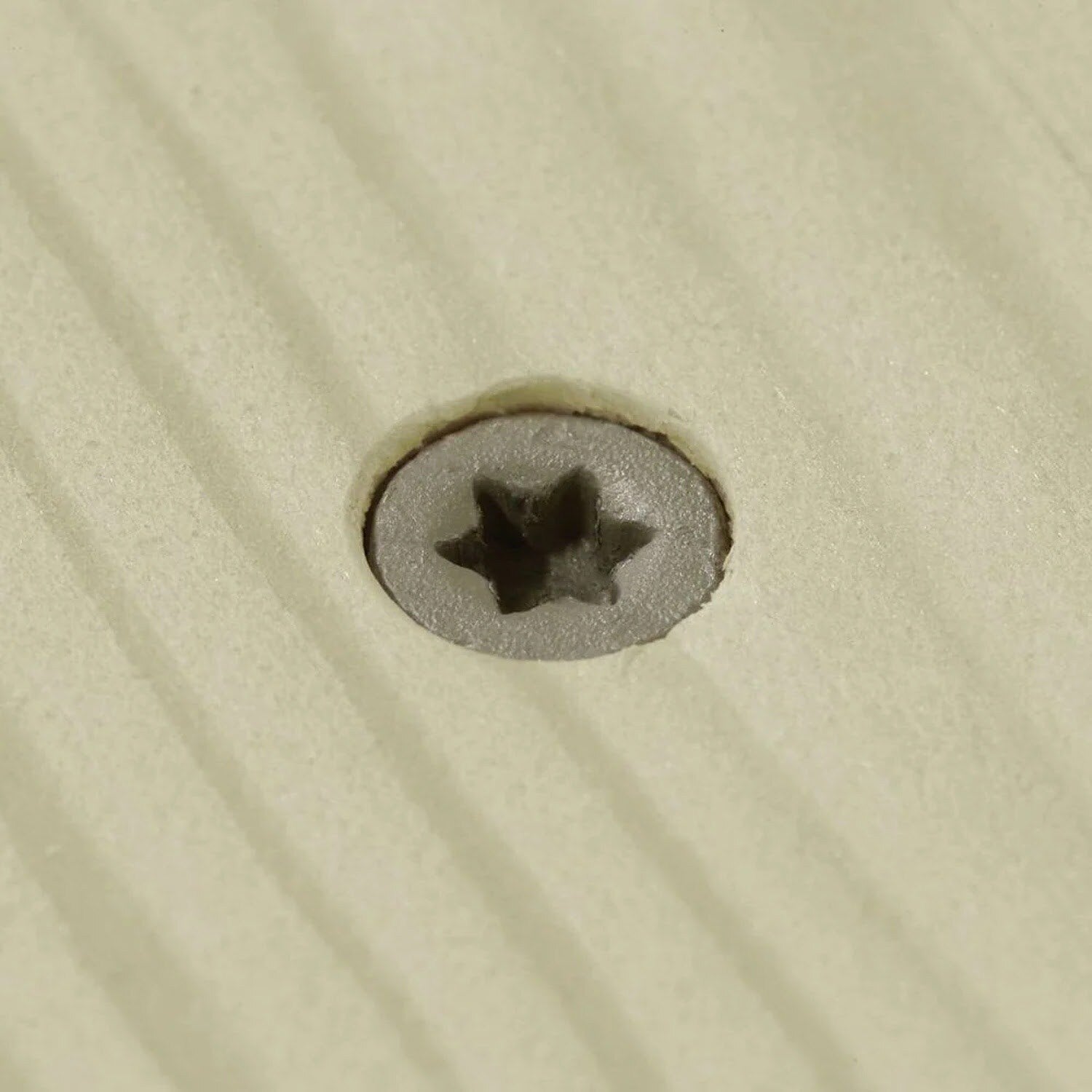

- Rimmed flat head with nibs for easy countersinking
- High-low tip threads with Type-17 point for fast starts
- Optimized threads for dimensional lumber
- Quik Guard coating for corrosion resistance
- Tan color blends with wood decking
- Includes T25 6-lobe driver bit
Simpson DSVT212R80 Applications
- Preservative-treated decking
- Exterior wood applications
- Engineered wood applications
Simpson DSVT212R80 Installation Overview
- Verify dimensions and alignment of the wood members.
- Position the screw at the desired location.
- Drive the screw using a T25 driver bit.
- Ensure the screw is countersunk for a clean finish.
Simpson DSVT212R80 Specifications
| Diameter | #10 |
| Finish | Quik Guard Coating |
| Length | 2-1/2" |
| Material | Carbon Steel |
| Color | Tan |
| Drive type | T25 Star Drive |
| Head type | Flat Head |
| Point type | Fast Start |
| Quantity | 80 |
| Thread type | Variable |
NOTE: Ensure the screws are installed with the correct specifications to achieve optimal load values
