Simpson Anchors | SKU:
DSVT3R5LB

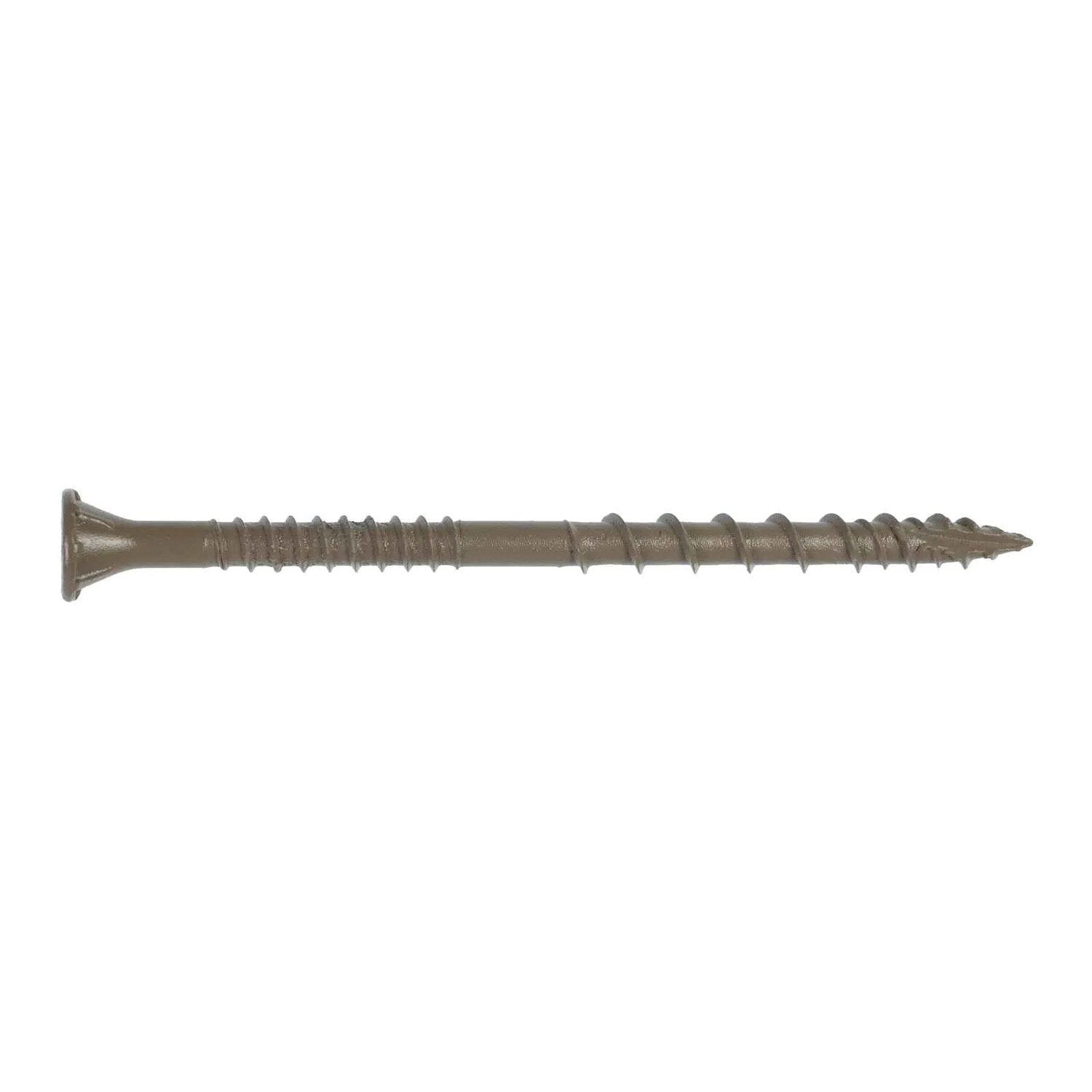

Simpson Strong-Tie DSVT3R5LB Deck-Drive (#10 x 3") T25 DSV Quik Guard Wood Screw, Flat Head, Tan (5 lb. Tub)
$47.64
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DSVT3R5LB Description
The Deck-Drive DSV Wood screw is a powerful fastening solution for preservative-treated decking applications. With its underhead nibs and fast-start tip, the DSV is ideally suited to be driven and countersunk into today’s wood deck boards.
Simpson Strong-Tie DSVT3R5LB Includes
- (1) 5 lb. Box of Deck-Drive DSV Wood Screws
Simpson Strong-Tie DSVT3R5LB Features
- Load rated for shear, pull-through, and withdrawal resistance
- Low-torque threads allow up to 35% more screws to be driven on a battery charge

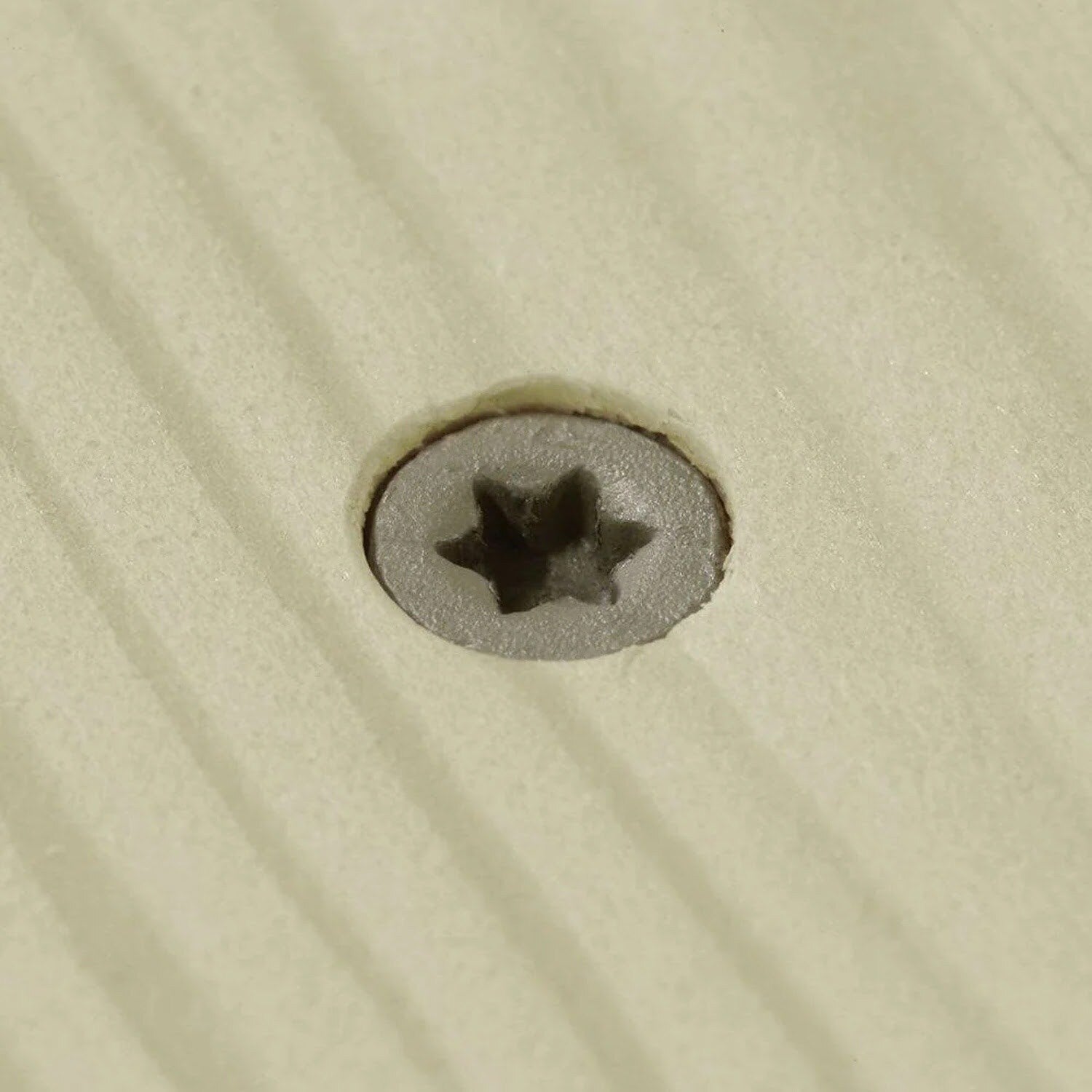

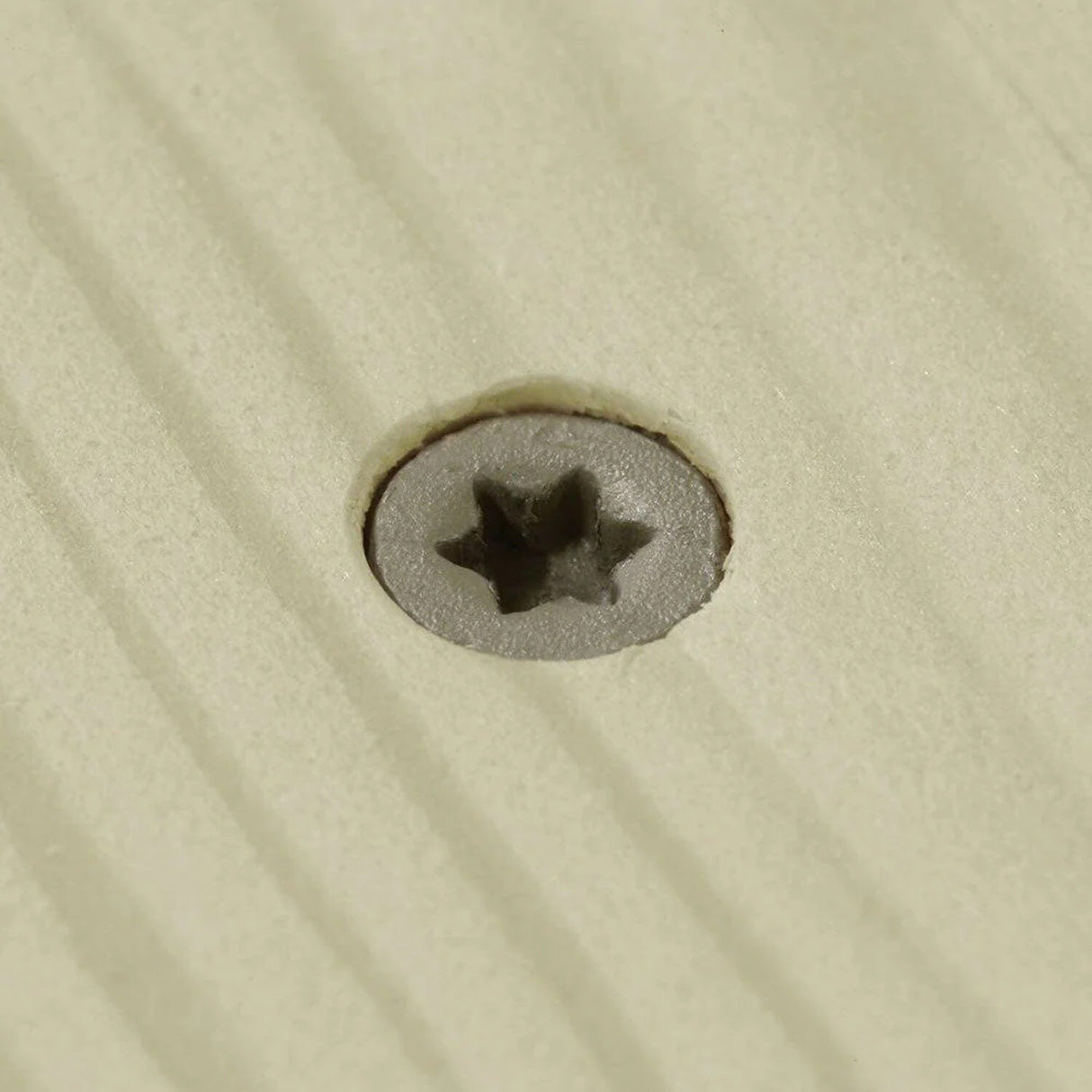

- Rimmed flat head with nibs countersinks easily and provides a clean, finished appearance
- High-low tip threads with Type-17 point provide fast starts
- Optimized threads for dimensional lumber
- Quik Guard coating provides corrosion resistance for exterior and certain preservative-treated wood applications
- Color blends with wood decking
- T25 6-lobe driver bit included
Simpson Strong-Tie DSVT3R5LB Applications
- Preservative-treated decking
- Exterior wood applications
- Engineered wood applications
Simpson Strong-Tie DSVT3R5LB Specifications
| Diameter | #10 |
| Finish | Quik Guard Coating |
| Length | 3" |
| Material | Carbon Steel |
| Color | Tan |
| Drive type | T25 Star Drive |
| Head type | Ribbed Flat Head |
| Point type | High-Low Threaded Tip |
| Quantity | 5 lb. (Approx 76 Fasteners Per lb.) |
| Thread type | Variable Thread |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
