Simpson Anchors | SKU:
DTT1Z-KT
Simpson Strong-Tie DTT1Z-KT (1-1/2" x 7-1/8") 14 Gauge Deck Tension Tie - ZMAX Finish (4 Pack)
$42.28
Unit price
/
Unavailable
Description
Description
Simpson DTT1Z-KT Description
The DTT1Z-KT Deck Tension Tie Kit includes connectors and screws designed for deck construction, meeting code requirements and providing reliable lateral load connections.

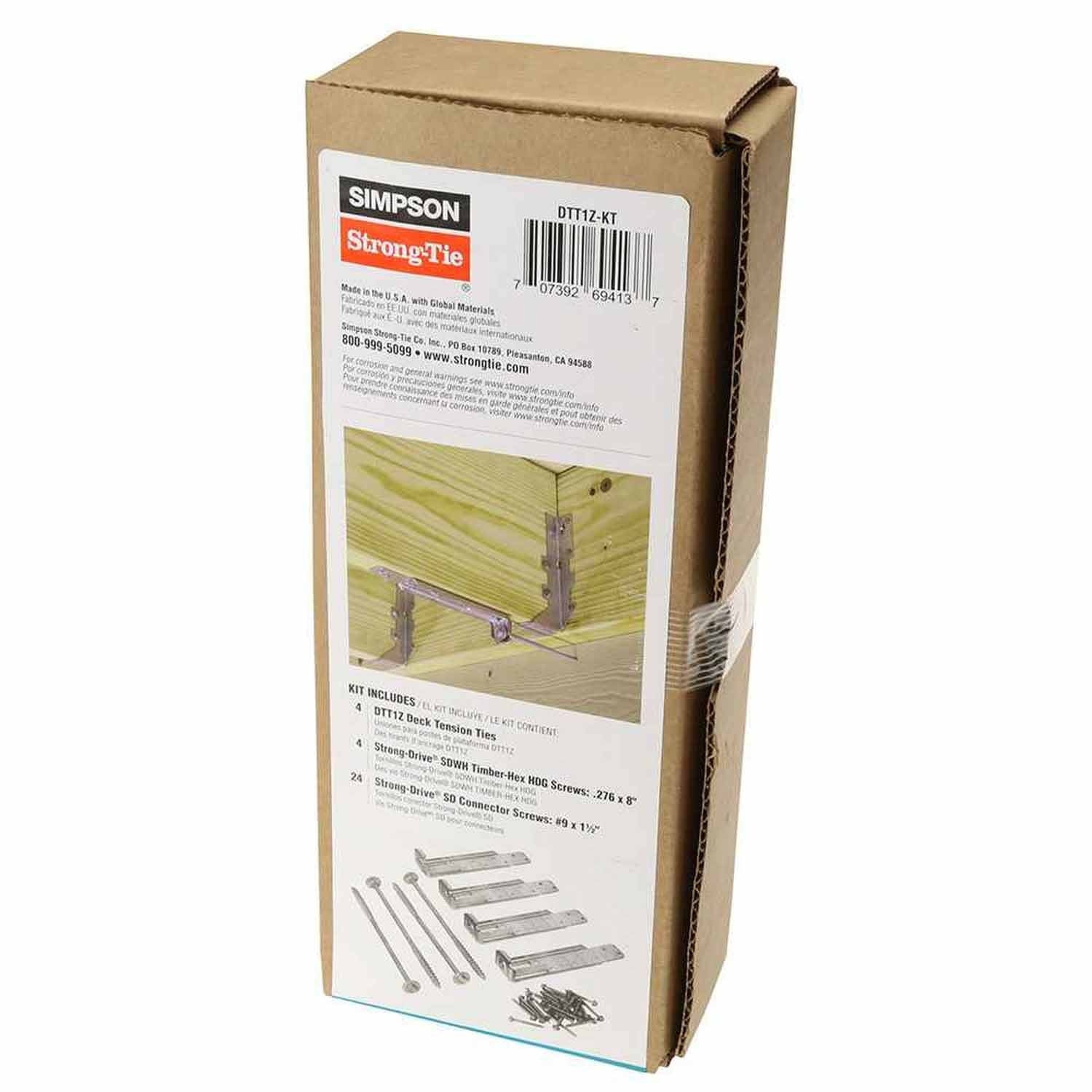

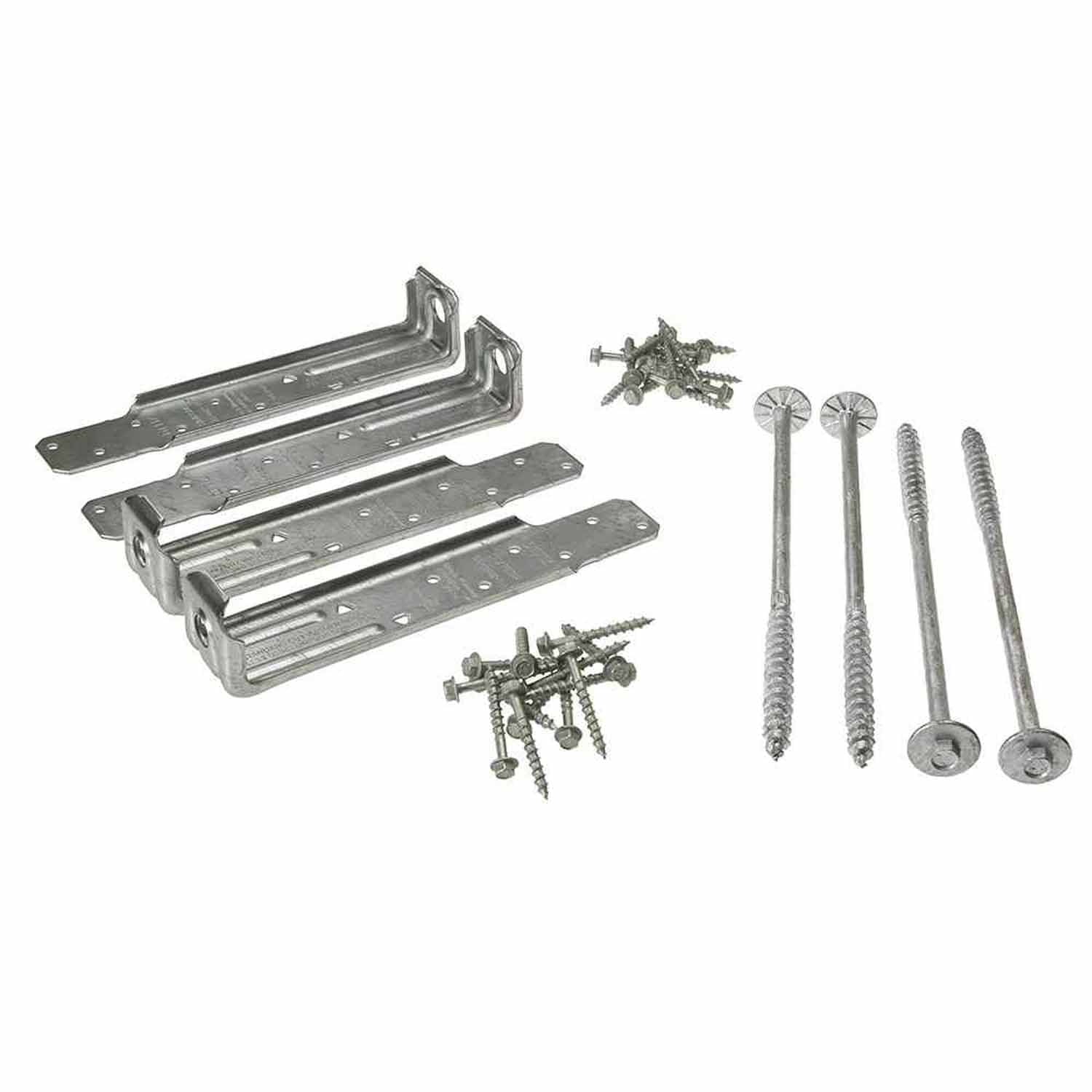

Simpson DTT1Z-KT Includes
- (4) DTT1Z connectors
- (4) Strong-Drive SDWH Timber-Hex HDG screws
- (26) SD #9 x 1-1/2 in. screws
Simpson DTT1Z-KT Features
- ZMAX Galvanized finish for corrosion resistance
- Includes all necessary fasteners for installation
- Load rated for light-duty shearwalls and braced wall panels
- Meets 2015 IRC provision for 750 lbs. lateral load connection
- Versatile use for new construction or existing decks
Simpson DTT1Z-KT Applications
- Deck construction requiring lateral load connections
- Light-duty shearwalls
- Braced wall panel applications
- Code-compliant deck upgrades

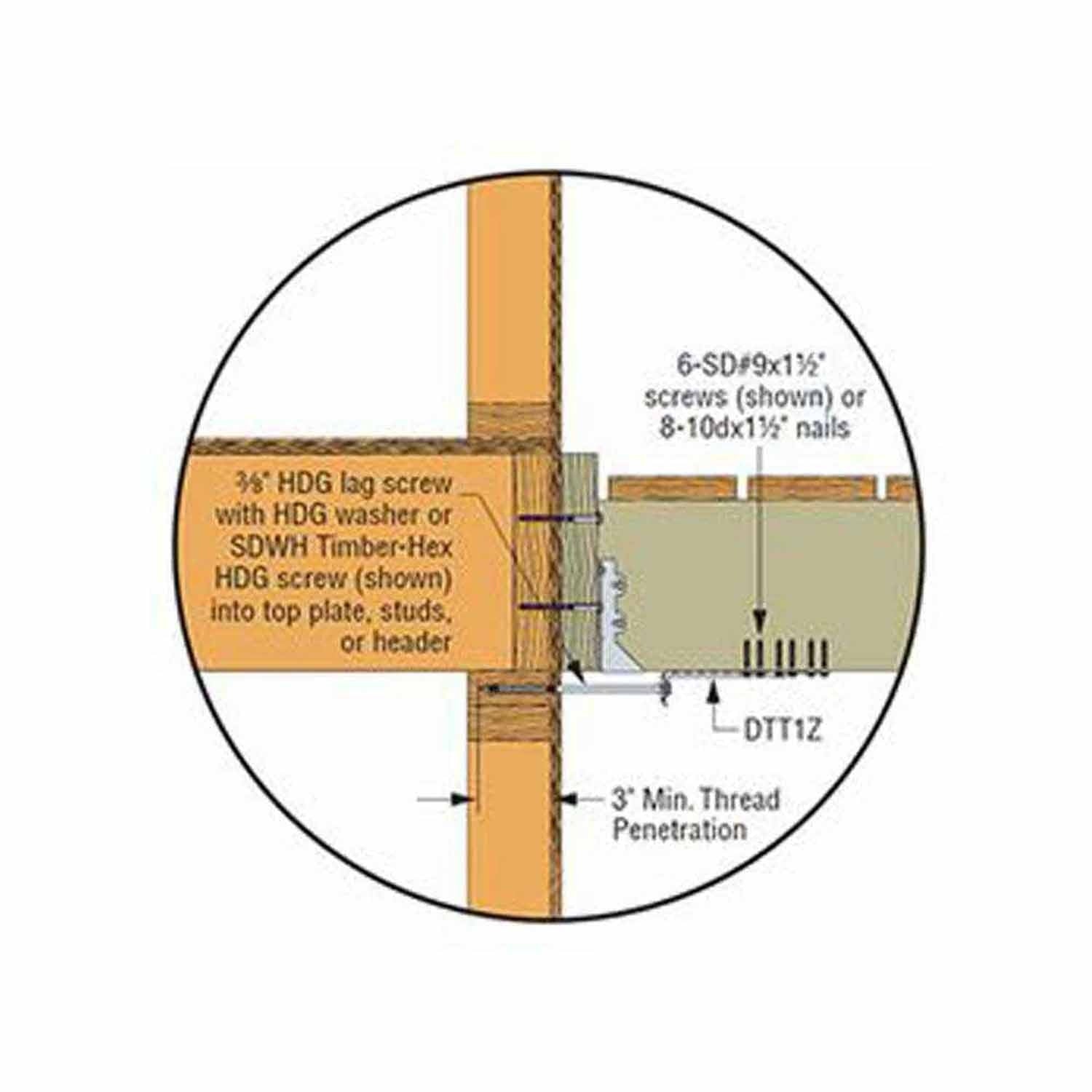

Simpson DTT1Z-KT Installation Overview
- Use all specified fasteners
- Install standard cut washer between nut and seat
- Use low-speed high-torque drill for SDS screws
- Use 1/4" hex-head driver for SD screws
- Use 3/8" hex-head driver for SDWH screws
Simpson DTT1Z-KT Specifications
| Material | 14 gauge |
| Finish | ZMAX Galvanized |
| Weight | 2.1 lb |
| Width | 1 1/2 in. |
| Height | 7 1/8 in. |
| Depth | 1 7/16 in. |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
