Simpson Anchors | SKU:
Simpson Strong-Tie DTT2Z Deck Tension Tie with 1.5" SDS Screws
$12.61
$19.04
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson DTT2Z Description
The Simpson DTT2Z Deck Tension Tie is a reliable and cost-effective connector designed for deck construction and light-duty shearwalls, featuring ZMAX finish and 1.5" SDS screws.

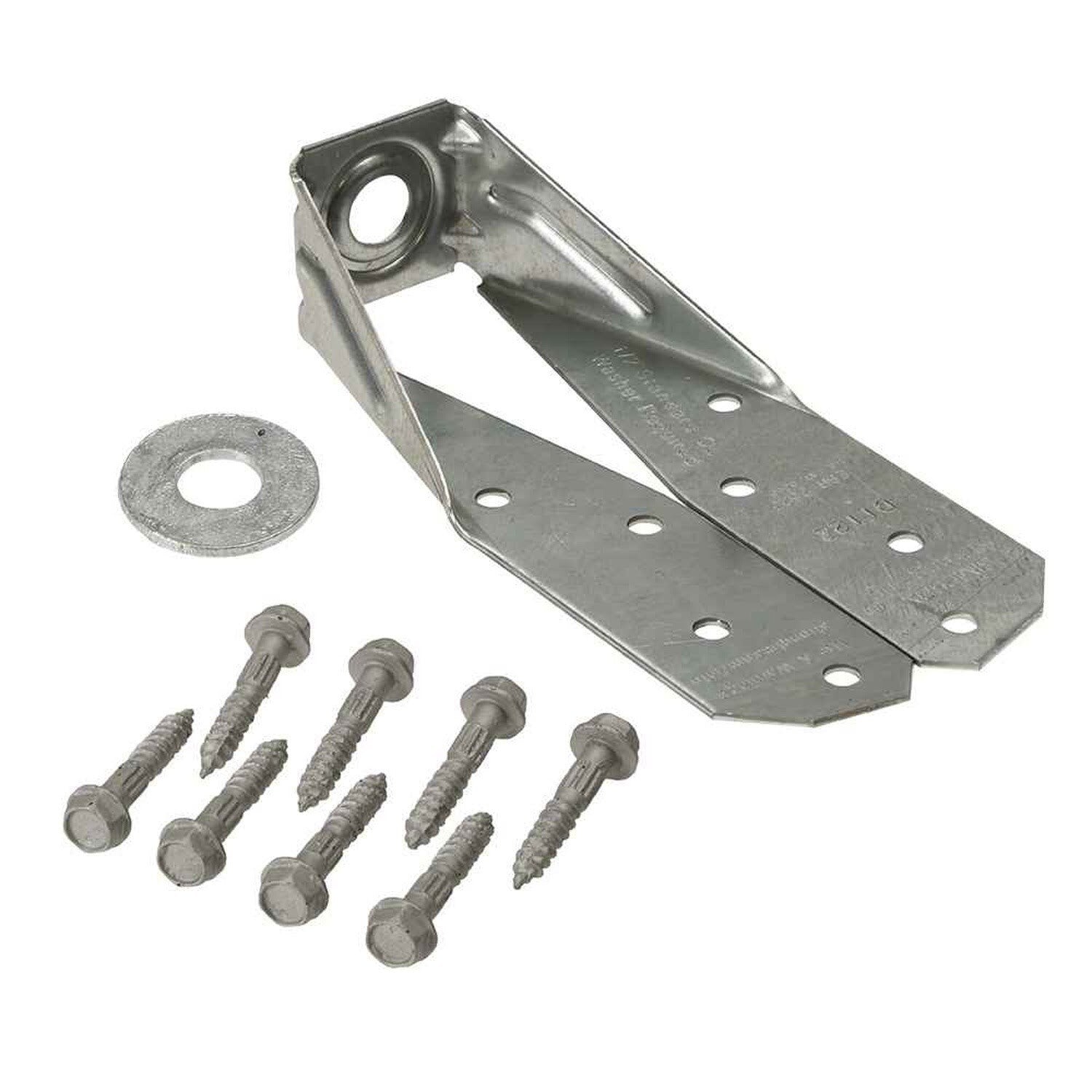

Simpson DTT2Z Includes
- (1) Deck Tension Tie
- (1) 1.5" SDS Screws
Simpson DTT2Z Features
- Safe and cost-effective connector for deck construction
- Load rated for light-duty shearwalls and braced wall panels
- ZMAX finish for enhanced corrosion resistance
- Includes 1.5" SDS screws for secure installation
Simpson DTT2Z Applications

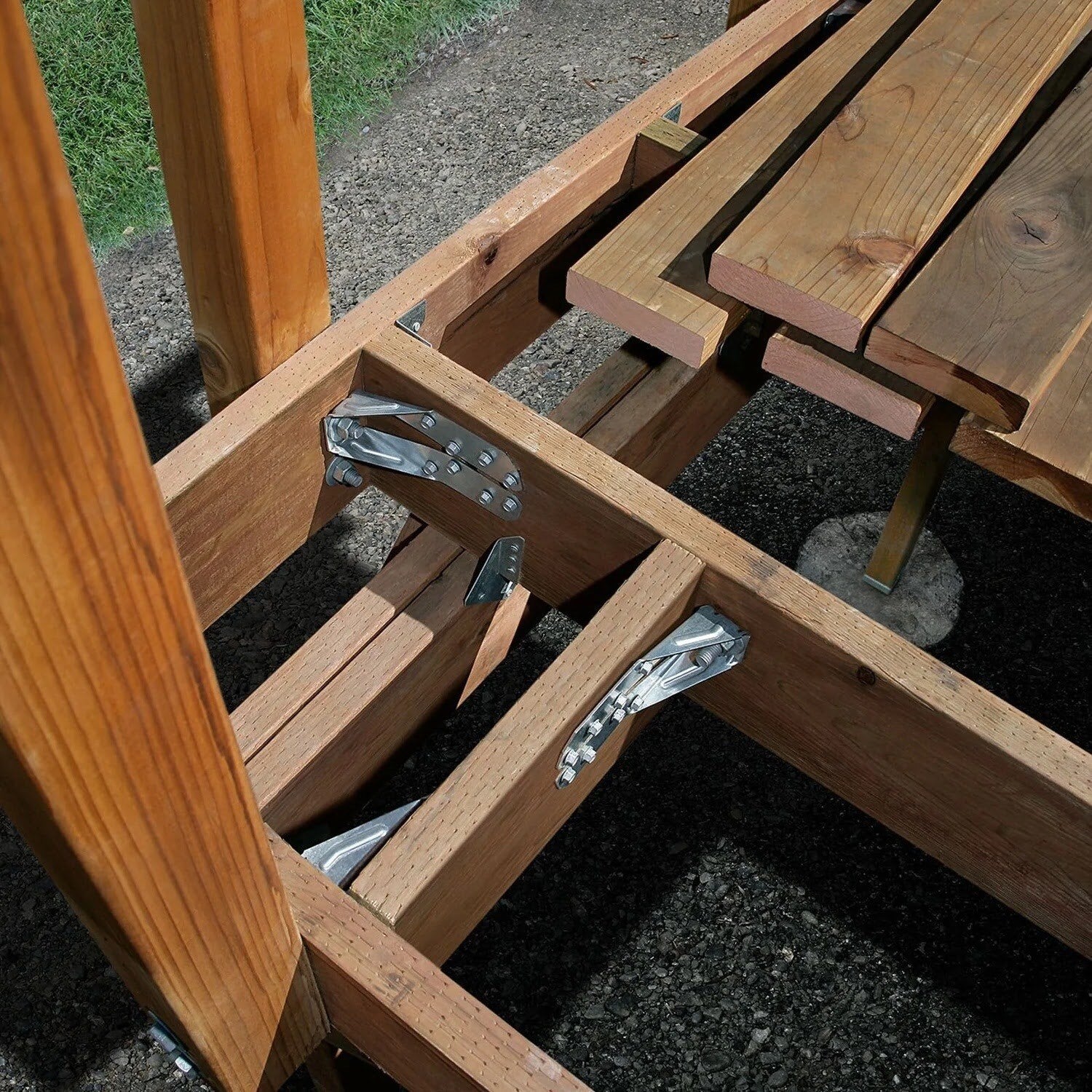

- Deck construction: Ensures structural integrity and compliance with code requirements
- Light-duty shearwalls: Provides reliable holdown support
- Braced wall panels: Enhances stability and load-bearing capacity

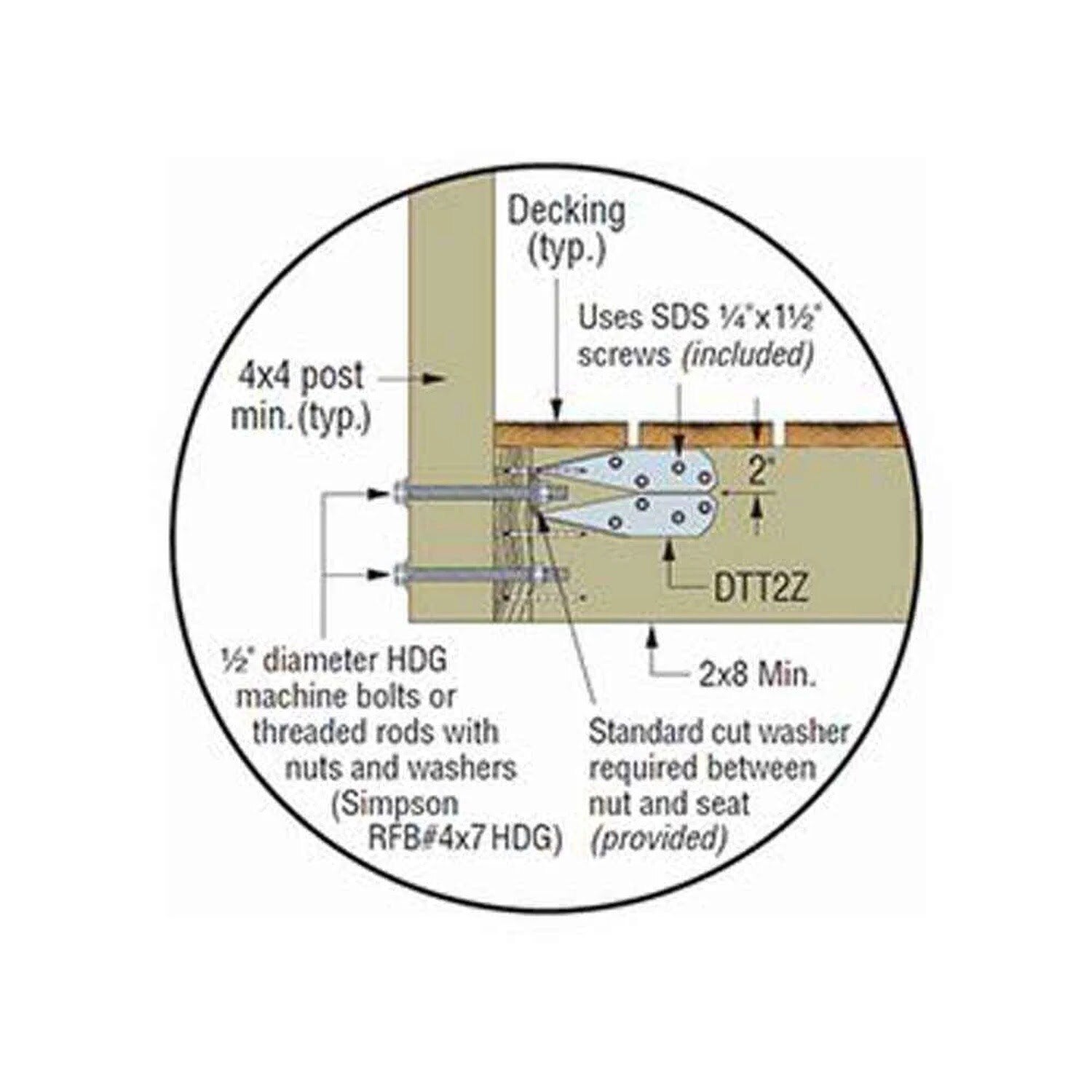

Simpson DTT2Z Installation Overview
- Use all specified fasteners
- Install a standard cut washer between the nut and the seat
- Use a low-speed high-torque drill with a 3/8" hex head driver for SDS screws
- Install SD Connector screws with a 1/4" hex head driver
- Use a 3/8" hex head driver for SDWH Timber-Hex HDG screws
Simpson DTT2Z Specifications
| Finish | ZMAX |
| Weight | 0.7 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
