Simpson Anchors | SKU:
E1B1414R100

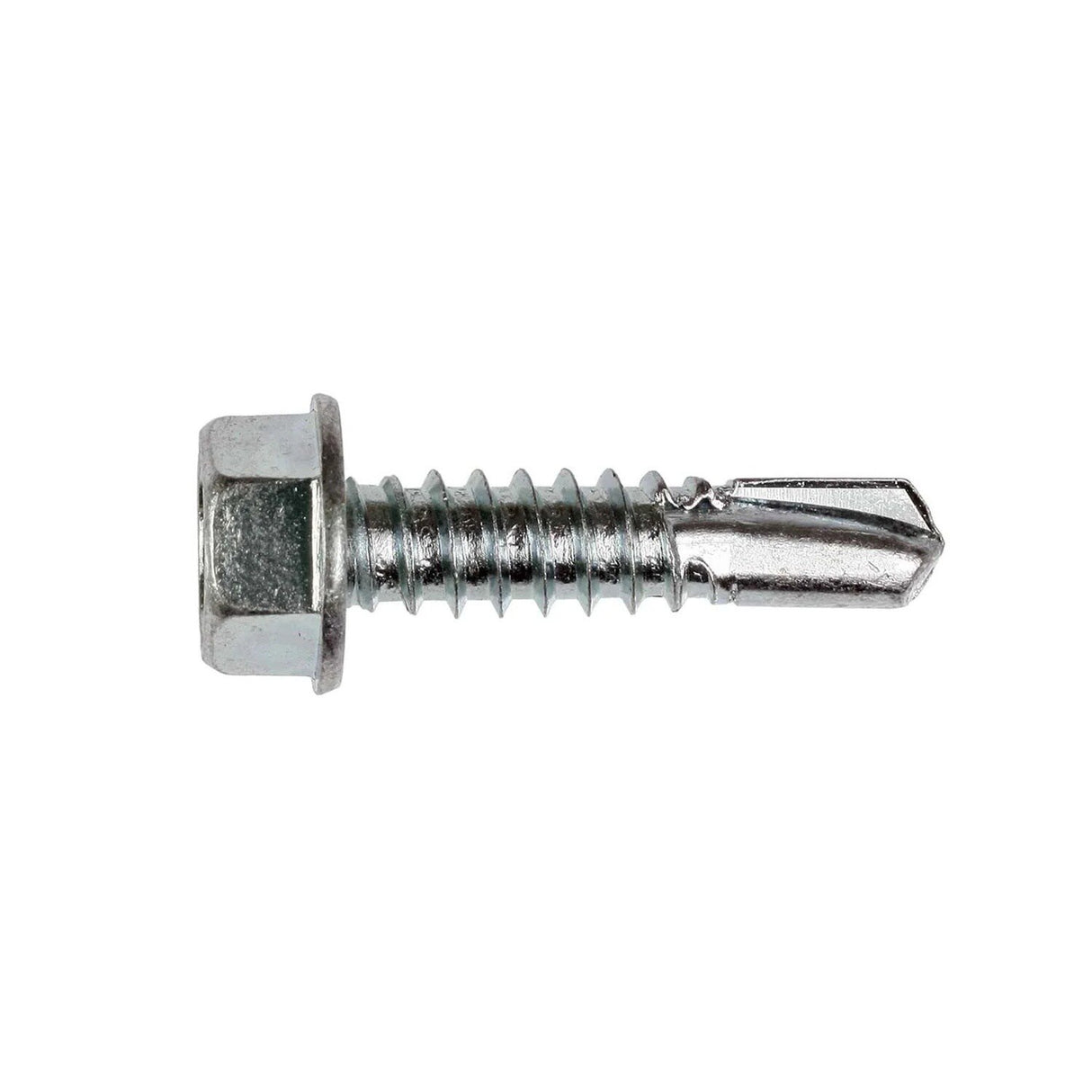

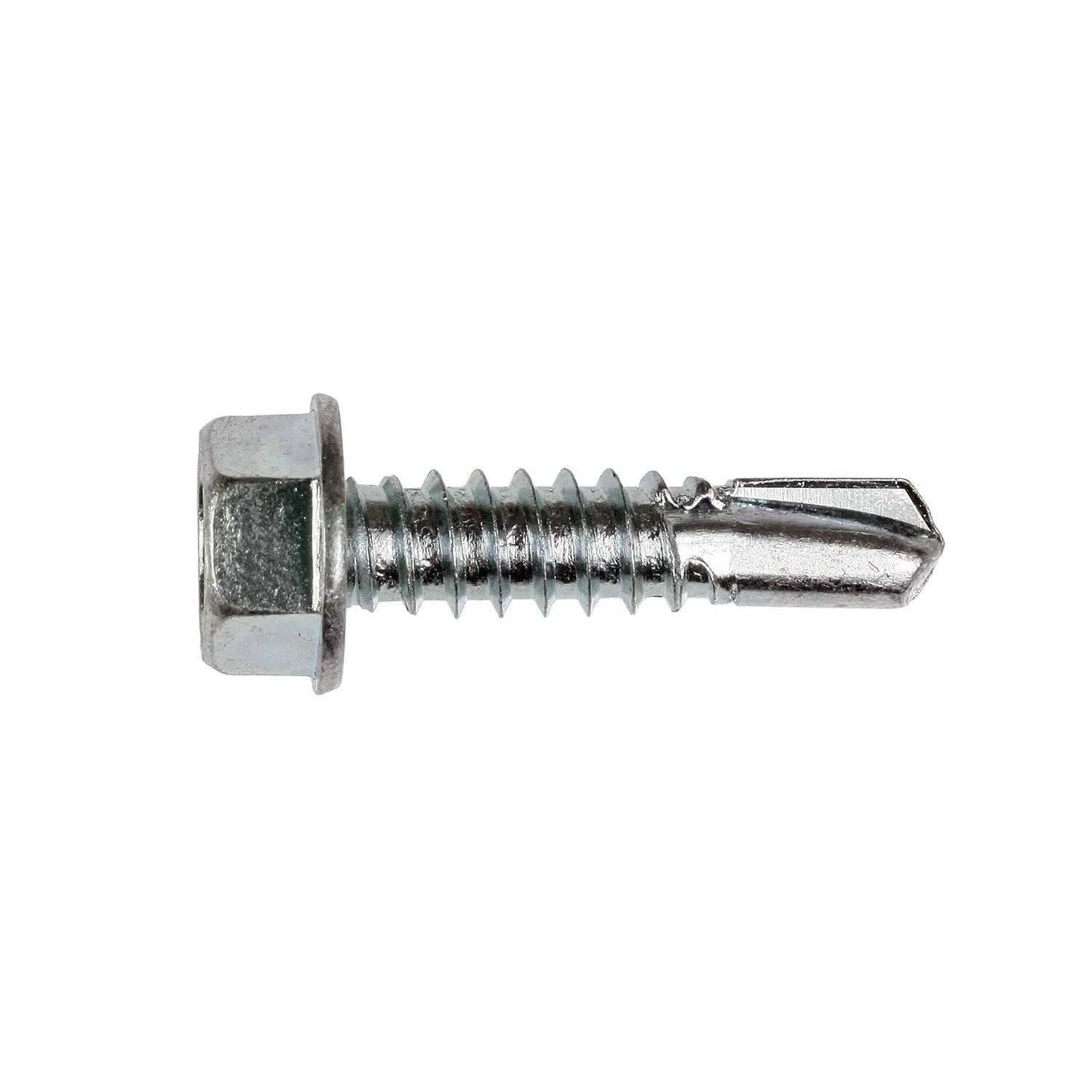

Simpson Strong-Tie E1B1414R100 Self-Drilling E Metal Screw Clear-Zinc Coating (100 Pack)
$13.97
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie E1B1414R100 Description
The Simpson Strong-Tie Self-Drilling E Metal screw is designed for cold-formed steel framing, featuring a #3 drill point and a clear zinc finish for durability and aesthetic appeal.
Simpson Strong-Tie E1B1414R100 Includes
- (100) Self-Drilling E Metal Screw
- (1) Drill Bit
Simpson Strong-Tie E1B1414R100 Features

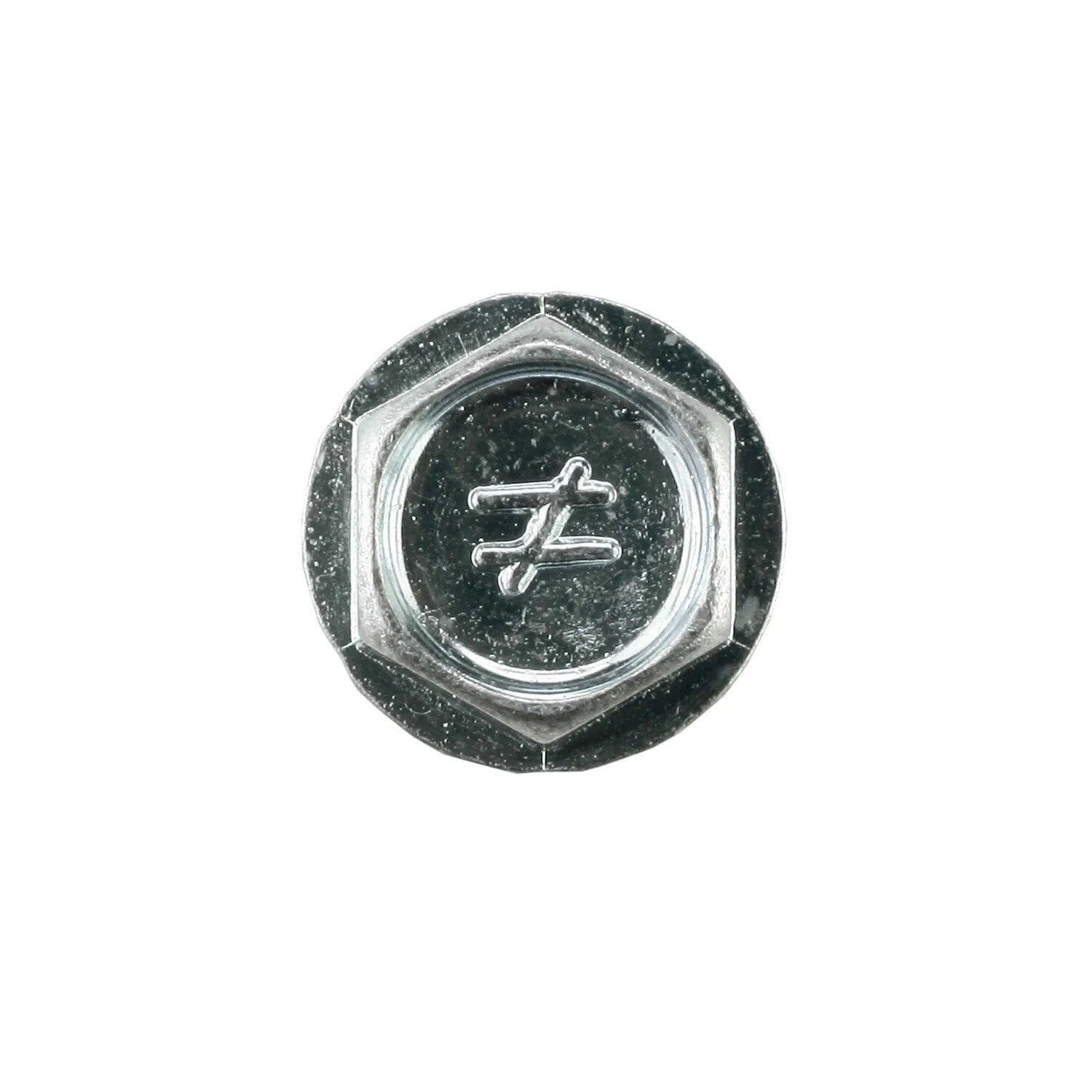

- Hex-washer head for easy installation and secure driving
- Clear zinc finish for a clean and professional aesthetic
- #3 drill point with maximum total drilling thickness of 0.35"
- Driver bit included in each box
- Designed for dry, interior and noncorrosive environments
Simpson Strong-Tie E1B1414R100 Applications
- Cold-formed steel framing
Simpson Strong-Tie E1B1414R100 Specifications
| Diameter | #14 |
| Finish | Zinc |
| Length | 1" |
| Material | Carbon Steel |
| Drive type | 3/8" Hex |
| Head type | Hex Washer Head |
| Point type | Drill Point |
| Quantity | 100 |
NOTE: Ensure screws extend through the connection with a minimum of three exposed threads per AISI General Provisions Standard Section D1.3.
