Simpson Anchors | SKU:
ECB88
Simpson Strong-Tie ECB88 (8" x 8") Elevated Column Base, Gray Paint
$161.18
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECB88 Description

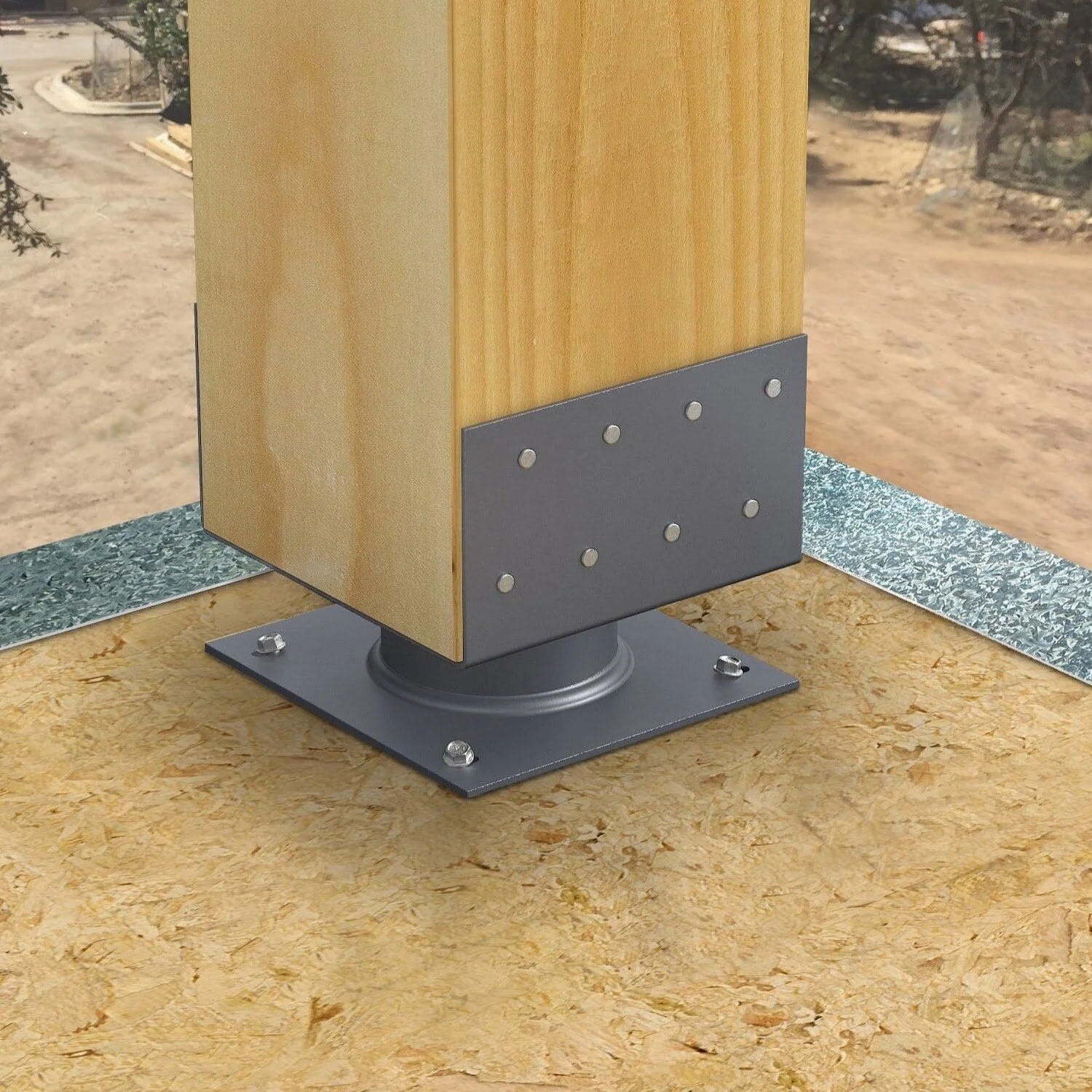

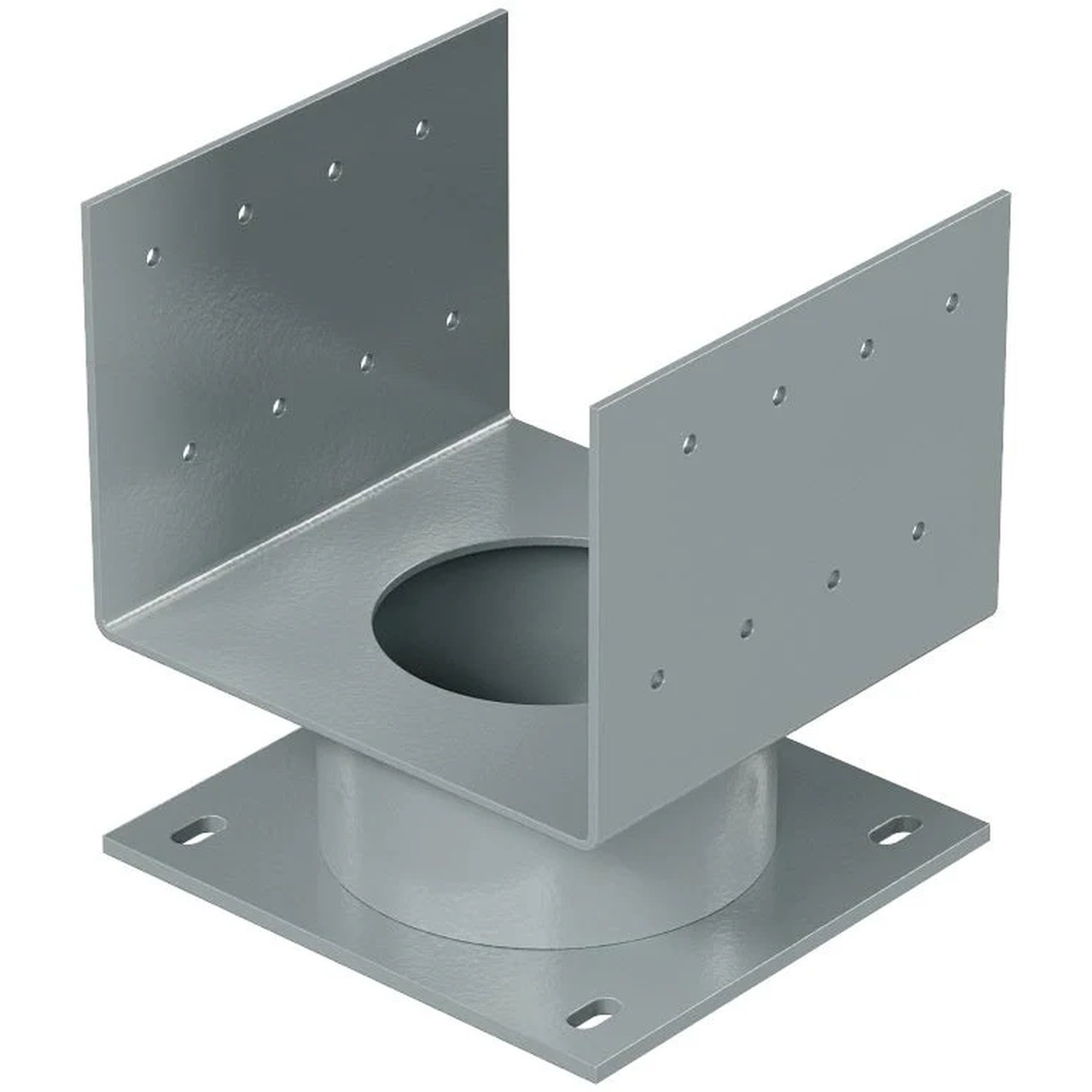

The ECB88 Elevated Column Base by Simpson Strong-Tie is designed to provide a secure and elevated connection for 8x8 posts or columns to concrete or wood foundations.
Simpson Strong-Tie ECB88 Includes
- (1) ECB88 Elevated Column Base
Simpson Strong-Tie ECB88 Features
- 2" elevated base accommodates moisture barrier and surface material while still providing 1" standoff
- Can be used with hollow columns or solid sawn posts
- Flexible anchorage options – 4 corner holes (screw down to wood) or 1 center hole (anchor to concrete)
Simpson Strong-Tie ECB88 Applications
- Fastening wood-to-concrete or masonry
- Providing elevated support for 8x8 posts or columns
Simpson Strong-Tie ECB88 Installation Overview
- Use all specified fasteners; see General Notes
- If using the single-anchor option (center hole), (2) 1/2" standard cut washers are required between the 1/2" anchor bolt or nut and the post base
- If using the four-anchor option (corner holes), install anchors into slotted holes at slight angle, as close to vertical as post base geometry will allow
- Concrete anchor options include Titen HD, Stainless-Steel Titen HD, SET-3G, or Titen Turbo; wood anchor options include Strong-Drive SDS Heavy-Duty Connector screw

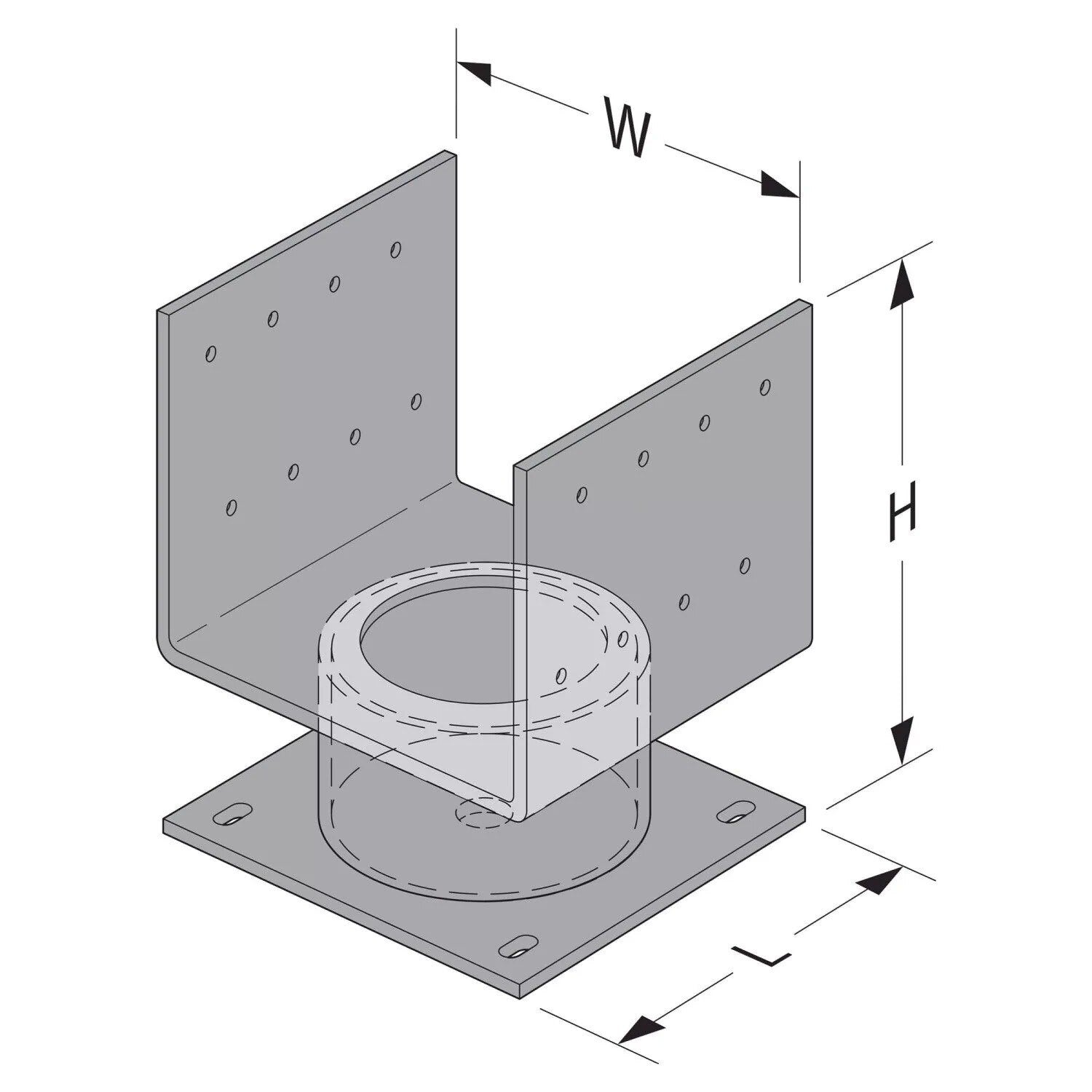

Simpson Strong-Tie ECB88 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Post Size | 8x8 |
| Height | 6-1/4" |
| Width | 7-1/4" |
| Length | 7" |
NOTE: Post bases do not provide adequate resistance to prevent members from rotating about the base, and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
