Simpson Anchors | SKU:
ECC44ROT

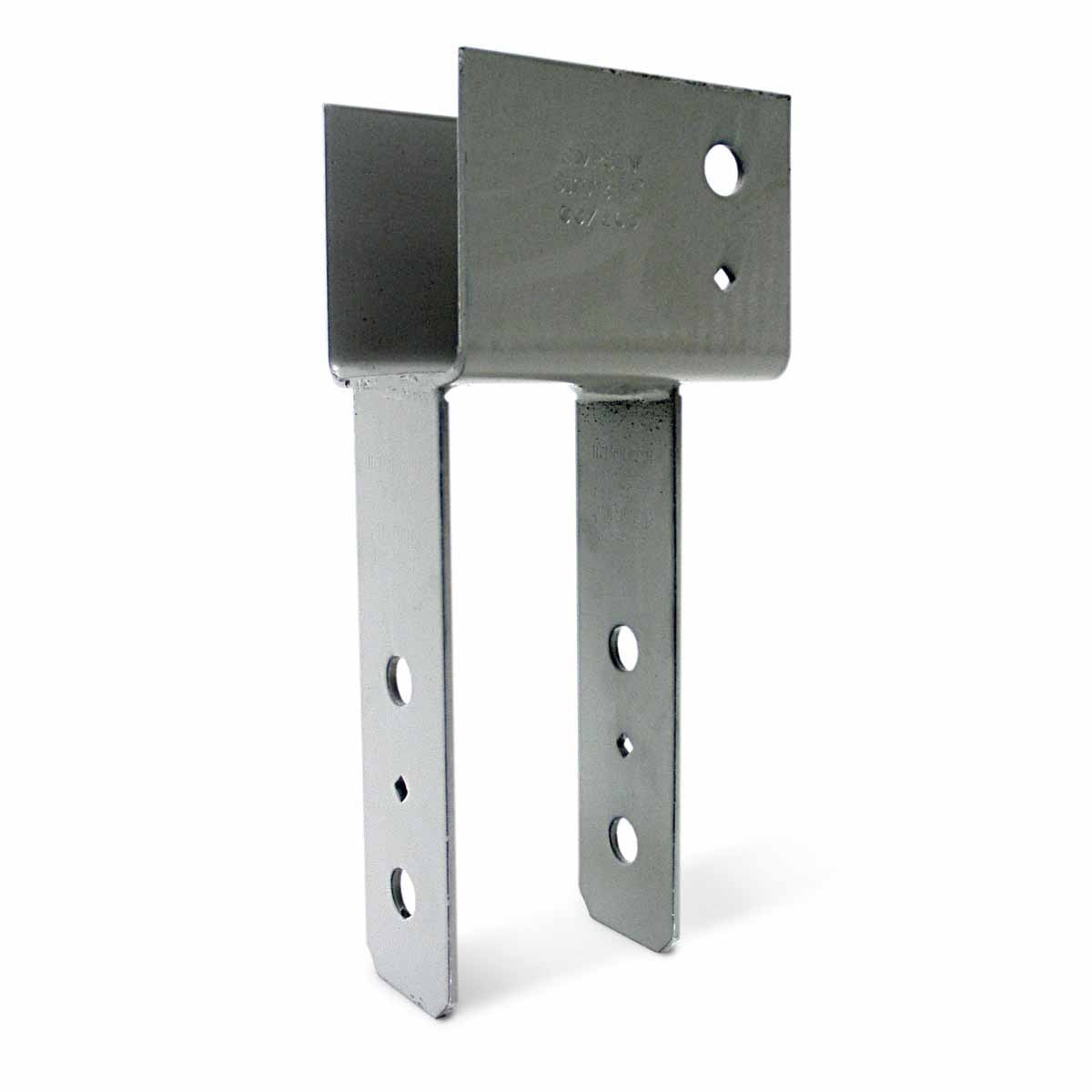

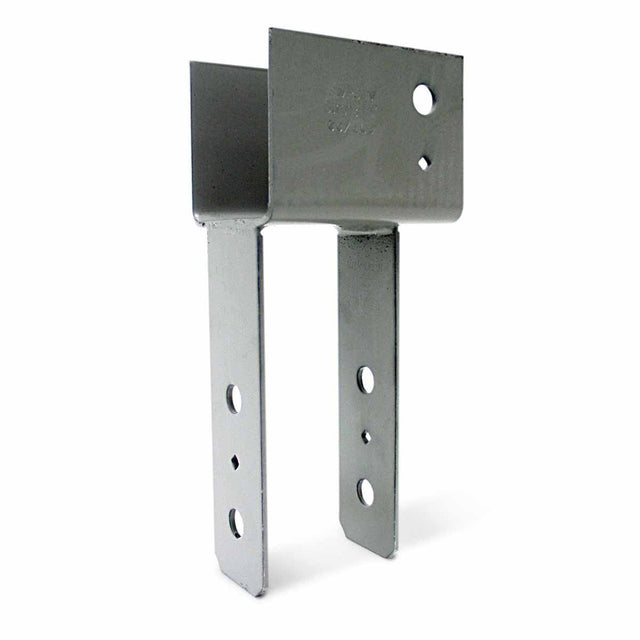

Simpson Strong-Tie ECC44ROT End Column Cap 90 Degree Rotated Straps Gray Paint for 4x Beam and 4x Post
$70.58
$101.50
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC44ROT Description
The Simpson ECC44ROT End Column Cap enhances the strength and stability of construction projects, providing durable column-to-beam connections for wood construction.
Simpson Strong-Tie ECC44ROT Includes
- (1) Simpson ECC44ROT End Column Cap
Simpson Strong-Tie ECC44ROT Features
- Provides strong end-of-beam connection for column-to-beams.
- Extended area of the column seat offers additional surface area of bearing to distribute the load.
- Made from heavy-gauge steel for durability.
- Finished with Gray Paint coating.
- Certified welds for strength and loading.
- Increased uplift loads for earthquake or wind loading.
- Features diamond holes for temporary fastening during installation.
- Bolt spacing meets NDS code requirements.
Simpson Strong-Tie ECC44ROT Applications
- Column-to-beam connections in wood construction.
- End-of-beam applications requiring enhanced support.
- Projects requiring increased uplift loads for earthquake or wind loading.

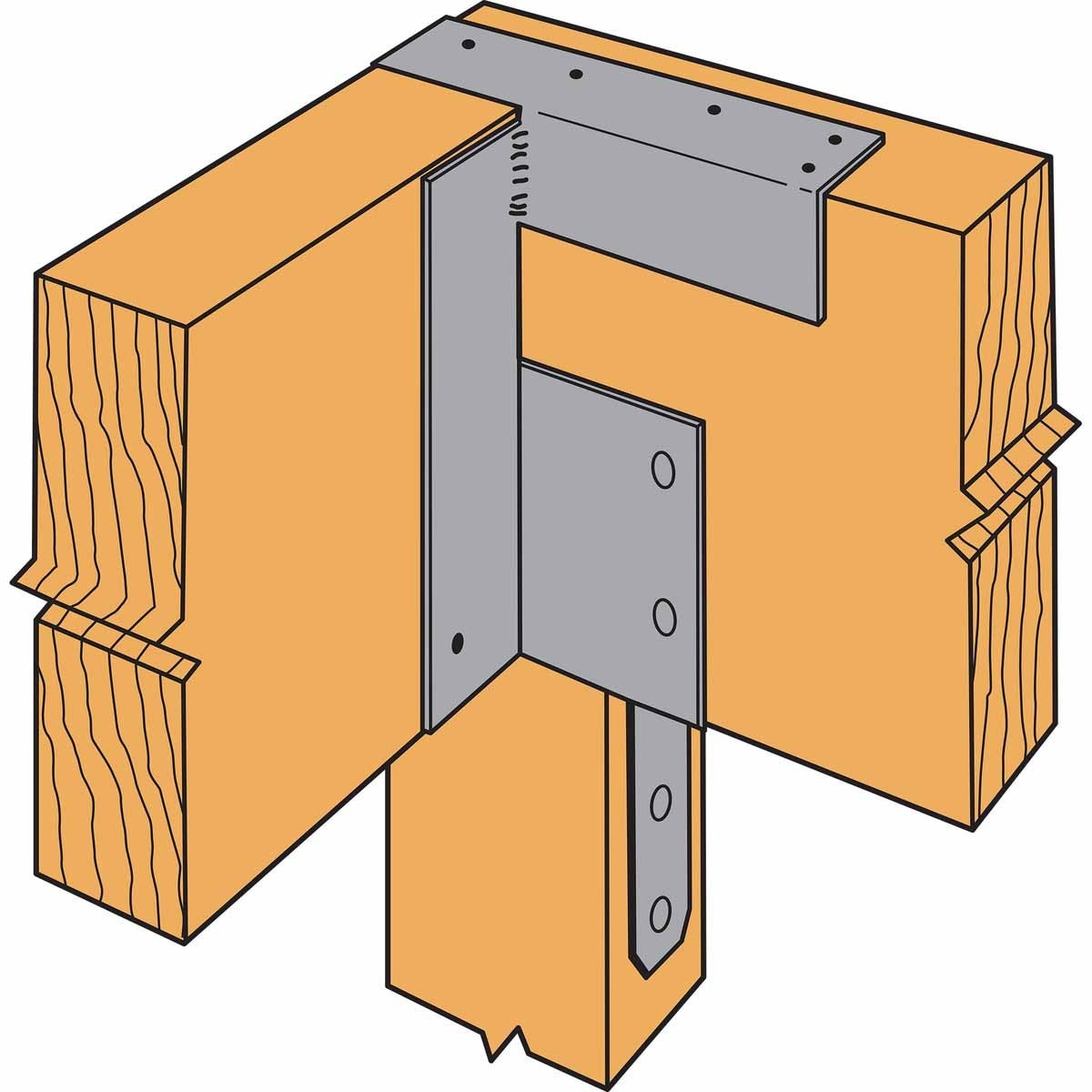

Simpson Strong-Tie ECC44ROT Installation Overview
- Position the column cap on the post and beam.
- Secure temporarily using diamond holes.
- Fasten using specified machine bolts.
- Ensure bolt spacing meets NDS code requirements.
- Verify stability and alignment of the connection.
Simpson Strong-Tie ECC44ROT Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 4x |
| Fasteners required | Beam - (1) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 7 Gauge |
