Simpson Anchors | SKU:
ECC44TC
Simpson Strong-Tie ECC44TC End Column Cap for 4x Beam and 4x Post, Gray Paint
$110.92
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC44TC Description

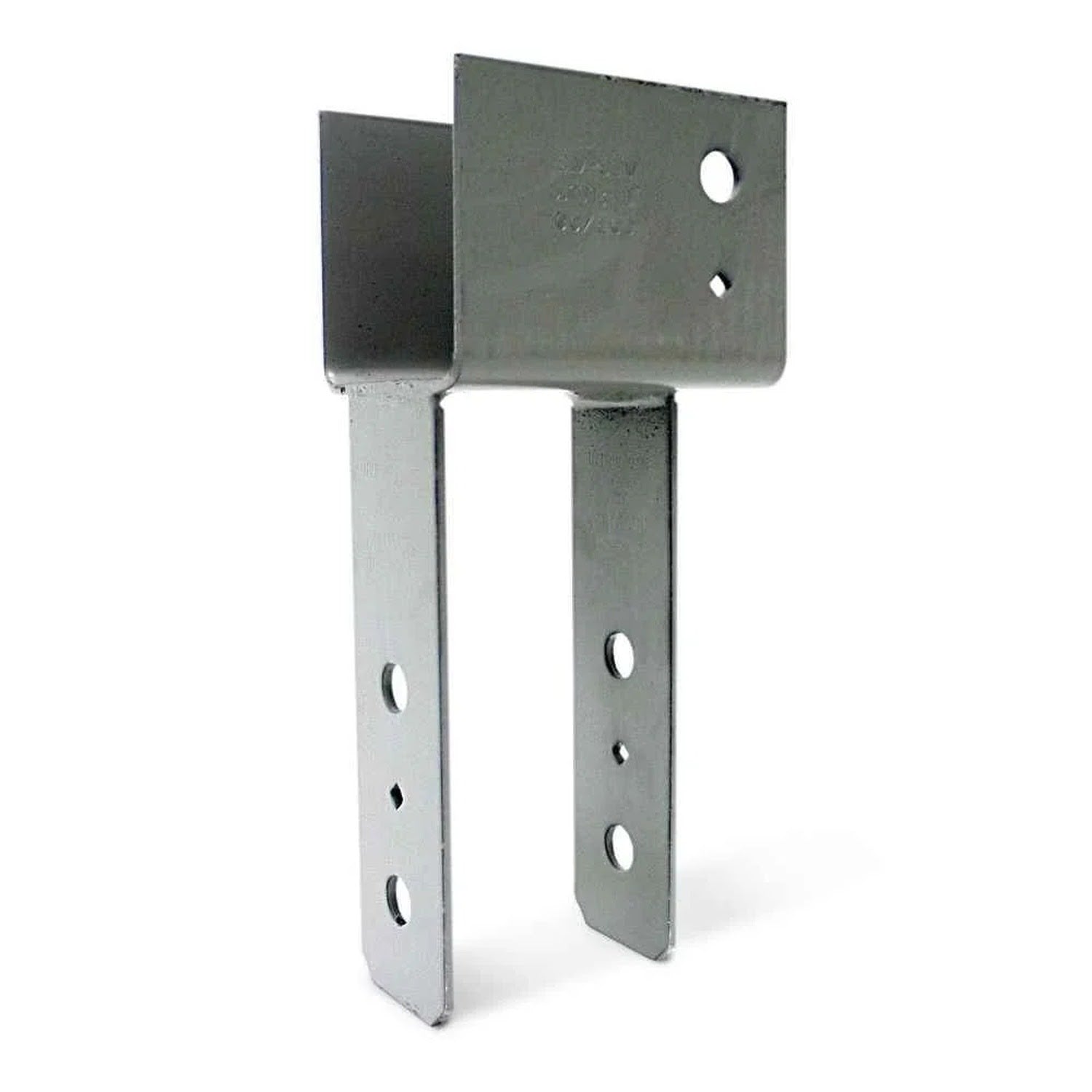

The Simpson ECC44TC End Column Cap enhances the strength and stability of your construction projects. Designed for 4x beams and posts, it features a durable steel construction with a gray paint finish.
Simpson Strong-Tie ECC44TC Includes
- (1) End Column Cap
Simpson Strong-Tie ECC44TC Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability and finished with Gray Paint coating
- Certified welds for strength and loading with increased uplift loads for earthquake or wind loading
- Features diamond holes to provide temporary fastening during installation
Simpson Strong-Tie ECC44TC Applications

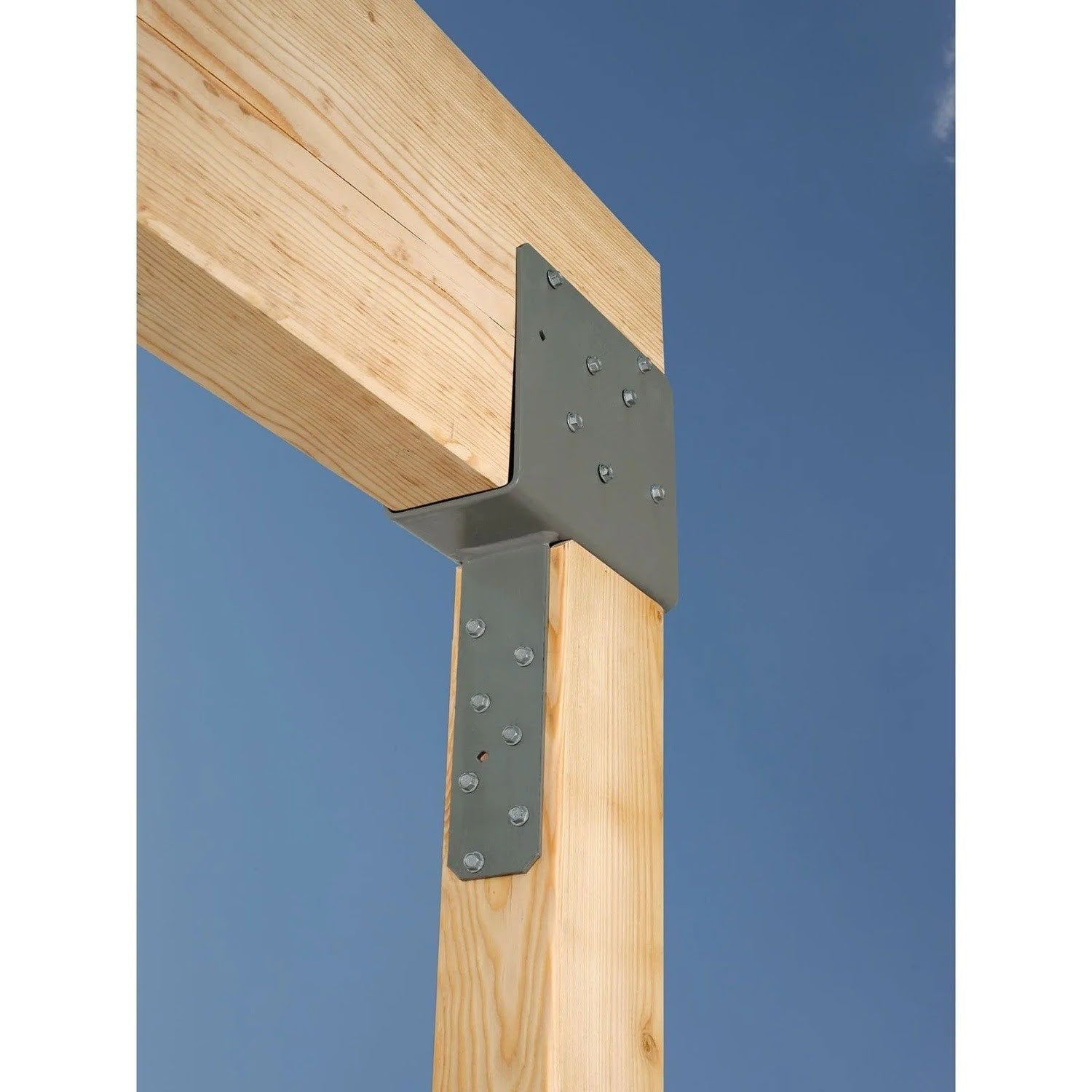

- Column-to-beam connections in end-of-beam applications for wood construction
- Suitable for 4x posts or columns
Simpson Strong-Tie ECC44TC Installation Overview
- Align the column cap with the beam and post
- Secure using the specified fasteners: Beam - (1) 5/8" Machine Bolt; Post - (2) 5/8" Machine Bolts
- Ensure proper alignment and secure fastening
Simpson Strong-Tie ECC44TC Specifications
| Finish | Gray Paint |
| Length | 5-1/2" |
| Material | Steel |
| Beam size | 4x |
| Fasteners required | Beam - (1) 5/8" Machine Bolts; Post - (2) 5/8" Machine Bolts |
| Height | 4" |
| Post size | 4x |
| Quantity | 1 |
| Thickness | 7 Gauge |
| Width | 3-5/8" |
NOTE: This item is made to order and is non-returnable.
