Simpson Anchors | SKU:
ECC46
Simpson Strong-Tie ECC46 End Column Cap (4x Beam, 6x Post)
$104.22
$149.87
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC46 Description

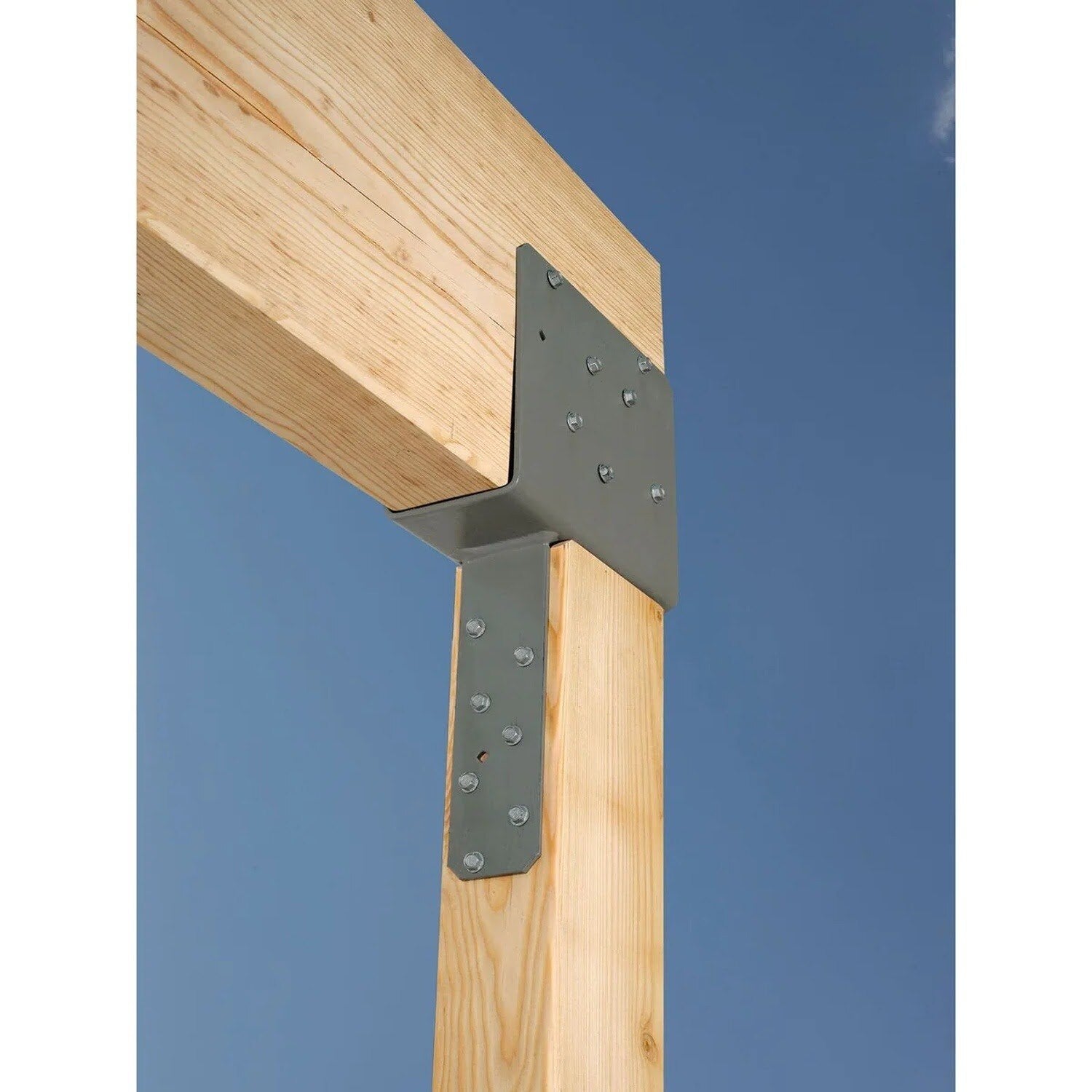

The Simpson ECC46 End Column Cap enhances the strength and stability of your construction projects, providing a durable column-to-beam connection for wood construction.
Simpson Strong-Tie ECC46 Includes
- (1) End Column Cap Gray Paint for 4x Beam, 6x Post
Simpson Strong-Tie ECC46 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability and finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECC46 Applications
- Column-to-beam connections in end-of-beam applications for wood construction
- Use with 6x posts or columns
- Suitable for 4x beams
Simpson Strong-Tie ECC46 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 4x |
| Fasteners required | Beam - (2) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 7 Gauge |
