Simpson Anchors | SKU:
ECC48

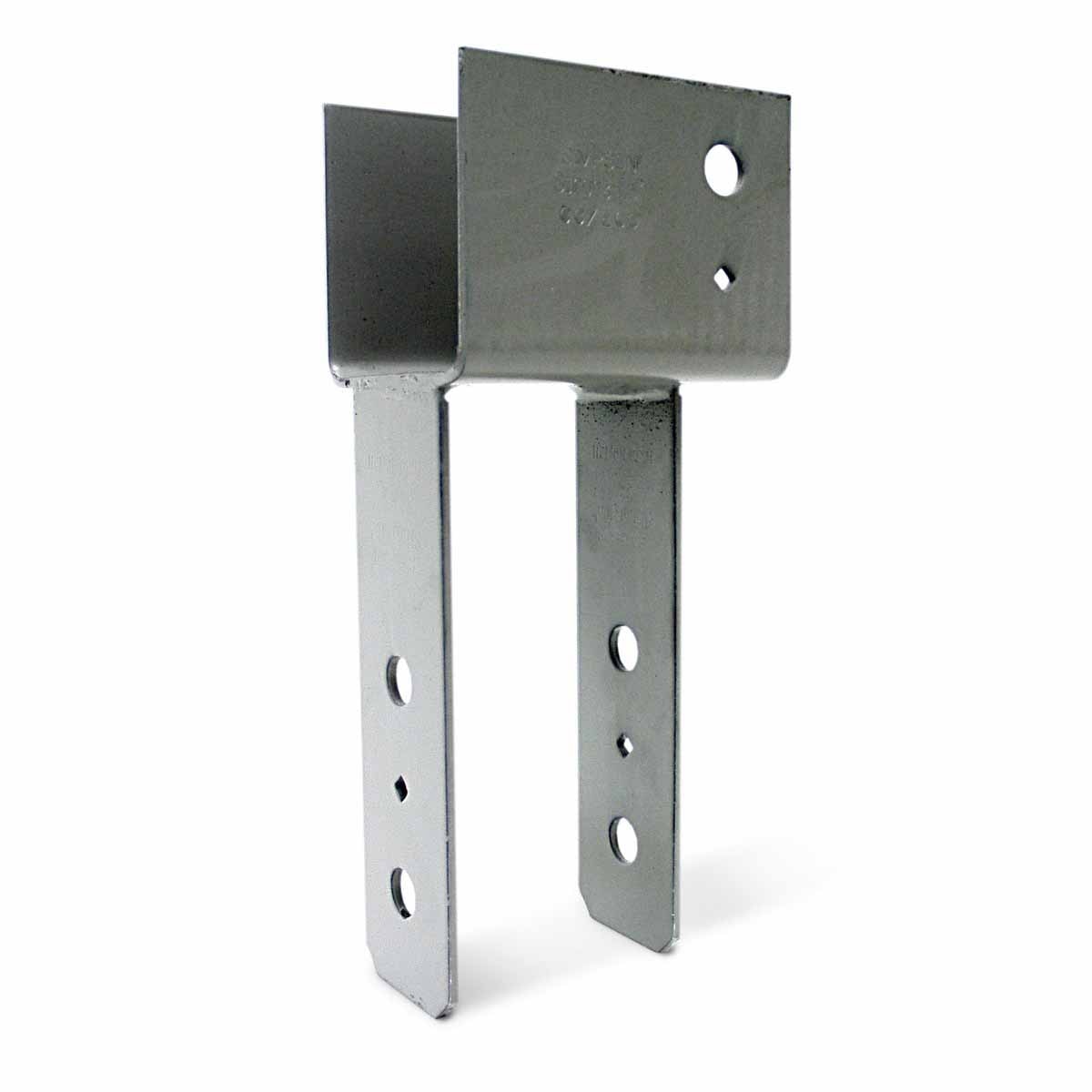

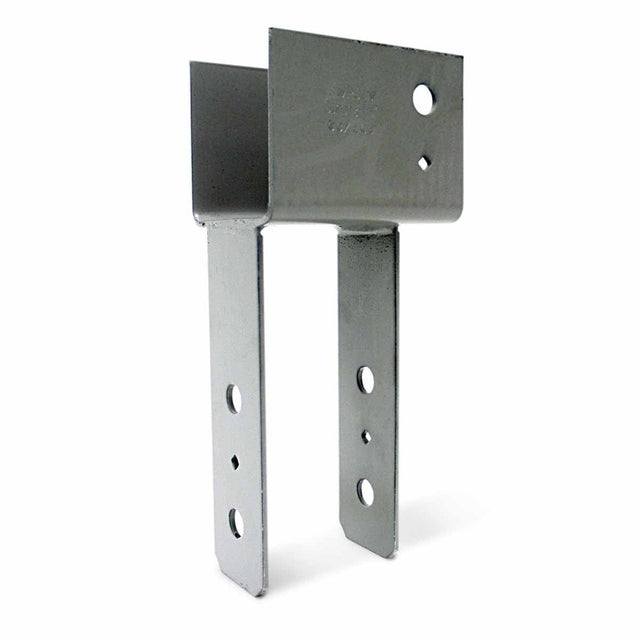

Simpson Strong-Tie ECC48 (4x Beam, 8x Post) End Column Cap - Heavy-Duty Steel Wood Connector
$104.22
$149.87
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC48 Description
The Simpson ECC48 End Column Cap enhances the strength and stability of your construction projects, providing a durable and reliable column-to-beam connection.
Simpson Strong-Tie ECC48 Includes
- (1) End Column Cap
Simpson Strong-Tie ECC48 Features
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Durable steel construction with gray paint finish
Simpson Strong-Tie ECC48 Applications

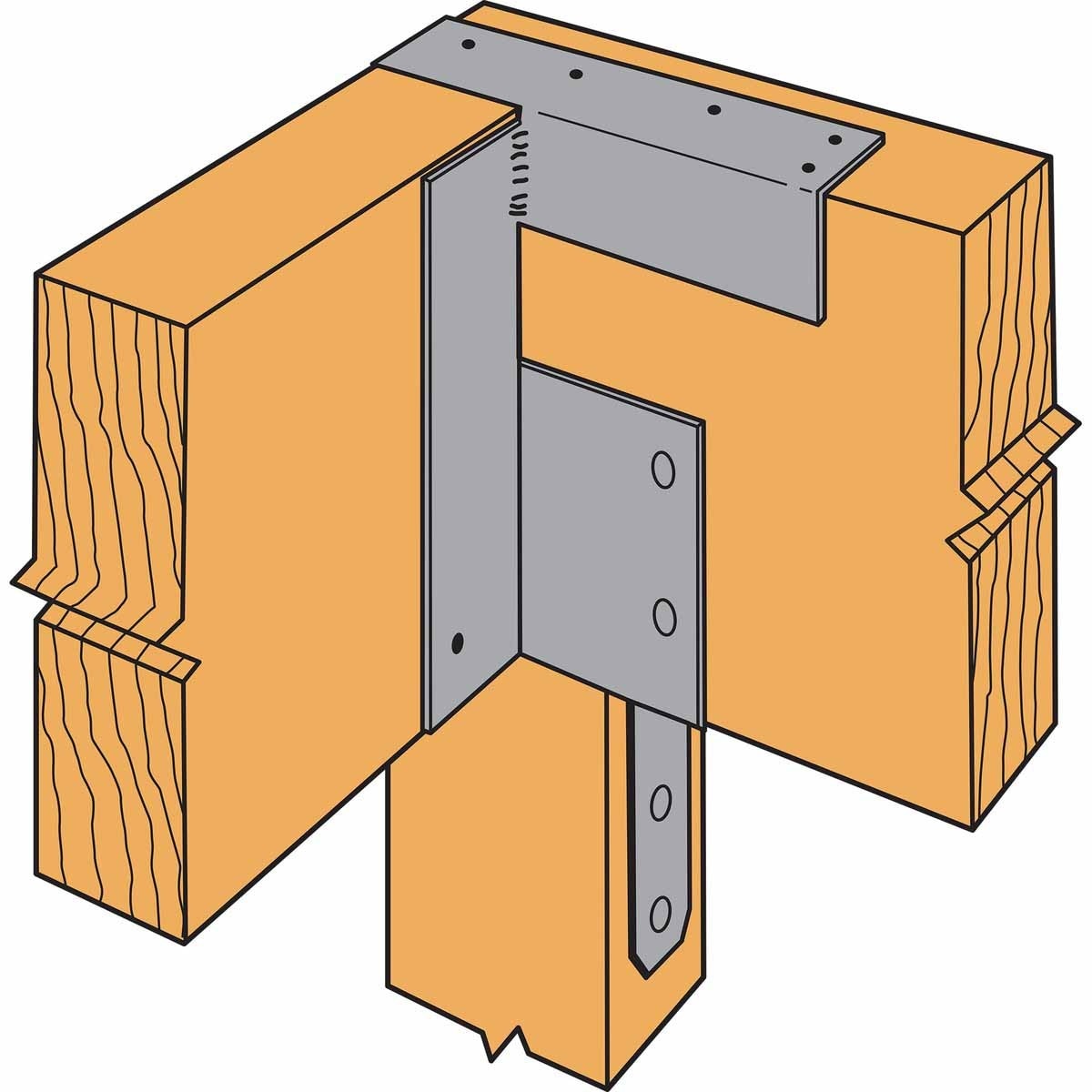

- Provides strong end-of-beam connection for column-to-beams
- Distributes load effectively with extended column seat area
- Suitable for wood construction projects
Simpson Strong-Tie ECC48 Installation Overview
- Use all specified fasteners as per guidelines
- Drill bolt holes from one side through the beam to maintain tolerances
- Contact engineered wood manufacturers for non-standard connections
Simpson Strong-Tie ECC48 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Beam size | 4x |
| Post size | 8x |
| Thickness | 7 Gauge |
| Height | 6-1/2" |
| Length | 8-1/2" |
| Fasteners required | Beam - (2) 5/8" Machine Bolts; Post - (2) 5/8" Machine Bolts |
NOTE: This item is made to order and is non-returnable.
