Simpson Anchors | SKU:
ECC5 1/4-6

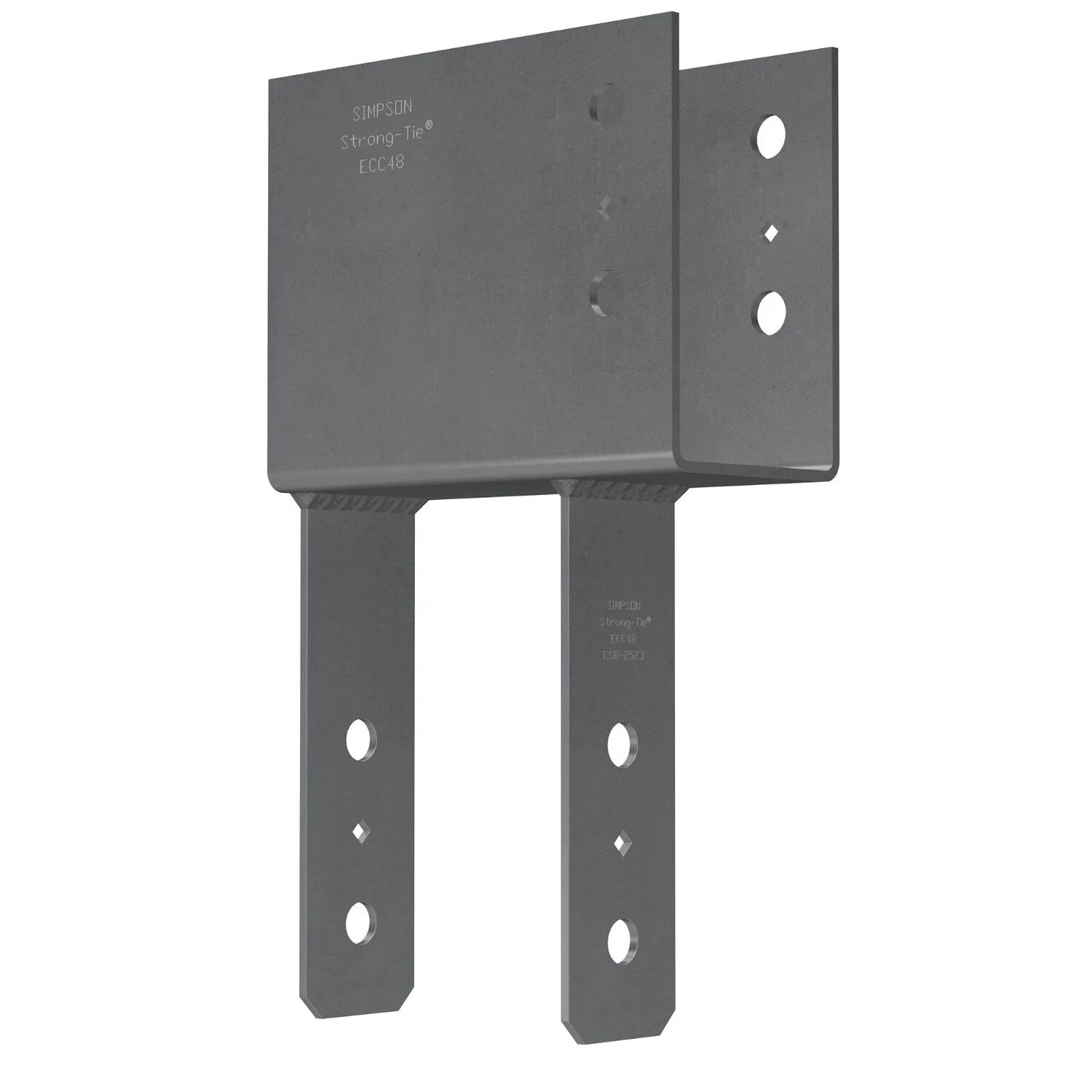

Simpson Strong-Tie ECC5 1/4-6 (5-1/8" Beam, 6x Post) ECC End Column Cap
$161.18
$231.80
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC5 1/4-6 Description

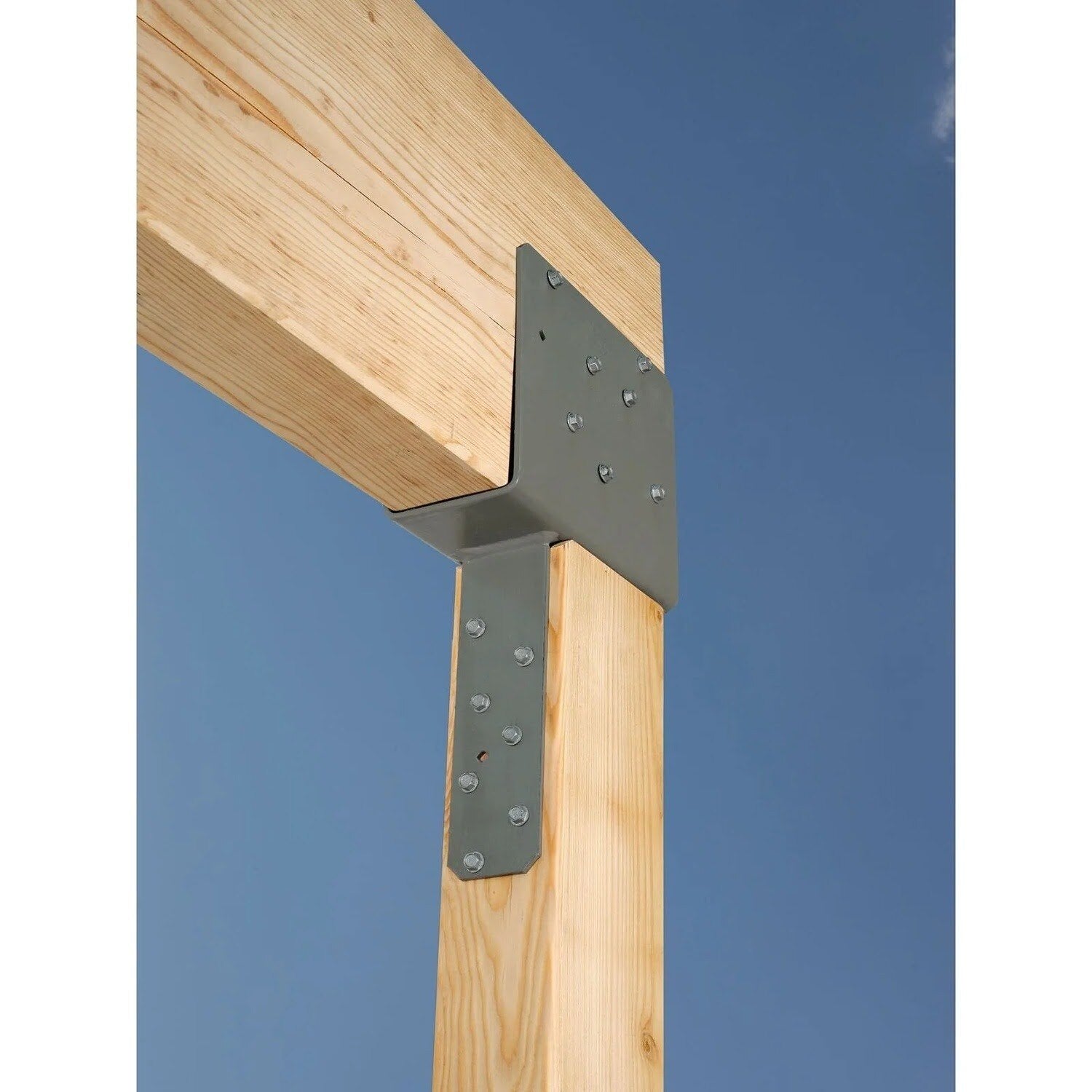

The Simpson ECC5 1/4-6 End Column Cap enhances the strength and stability of your construction projects, providing a durable column-to-beam connection for wood construction.
Simpson Strong-Tie ECC5 1/4-6 Includes
- (1) End Column Cap
Simpson Strong-Tie ECC5 1/4-6 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from heavy-gauge steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECC5 1/4-6 Applications
- Column-to-beam connections in wood construction
- End-of-beam applications requiring enhanced load distribution
Simpson Strong-Tie ECC5 1/4-6 Installation Overview
- Align the column cap with the beam and post
- Secure using the specified fasteners
- Ensure proper alignment and secure fastening
Simpson Strong-Tie ECC5 1/4-6 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 5-1/8x |
| Fasteners required | Beam - (2) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 3 Gauge |
