Simpson Anchors | SKU:
ECC5 1/4-6ROT

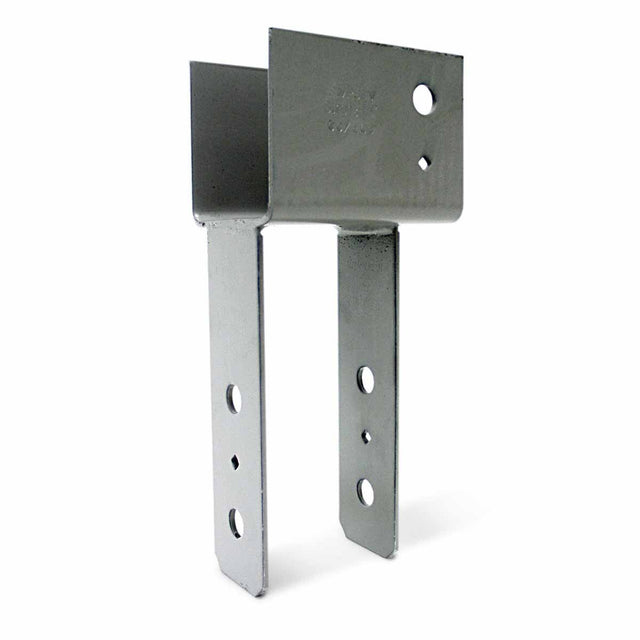

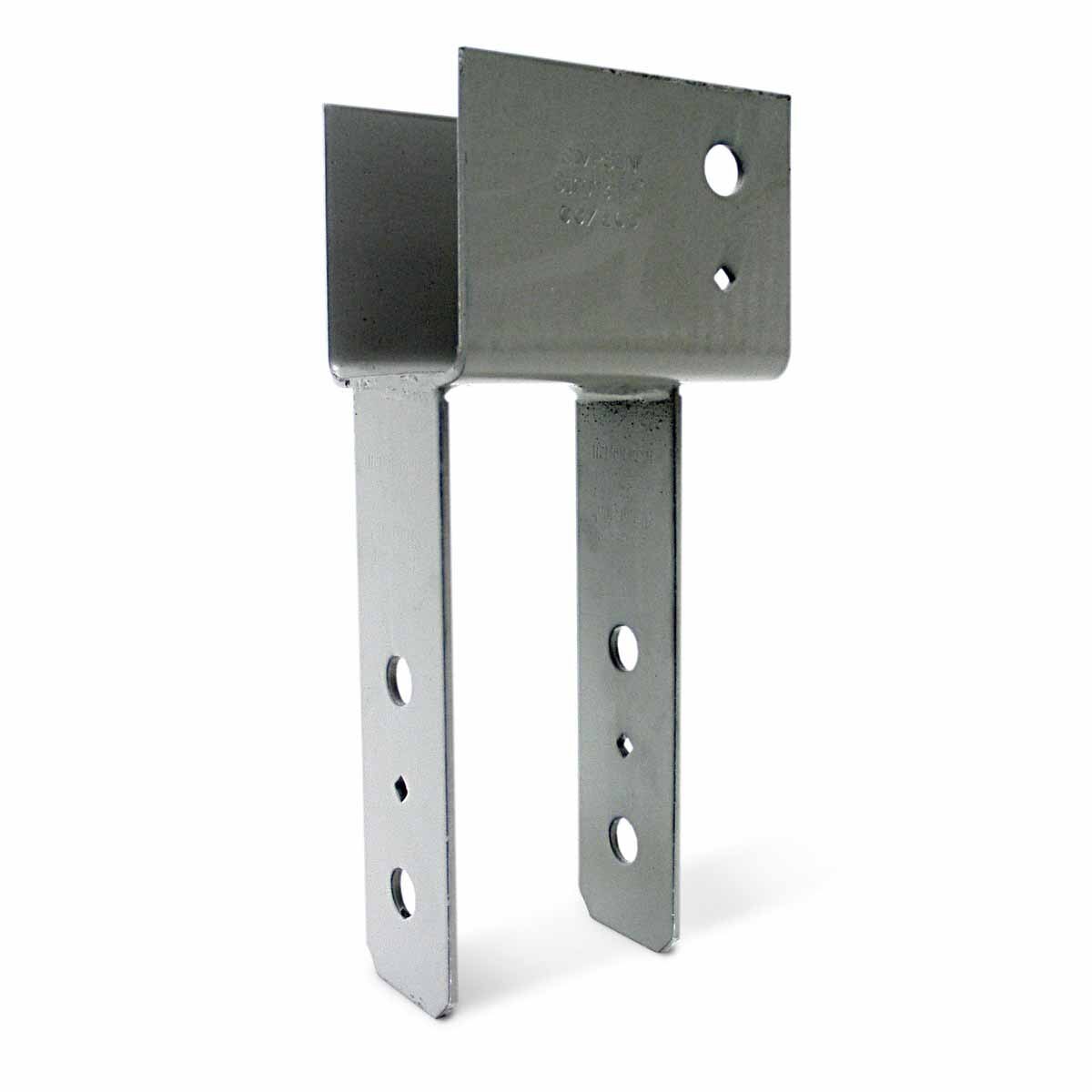

Simpson Strong-Tie ECC5 1/4-6ROT End Column Cap 90 Degree Rotated Straps Gray Paint for 5-1/8" Beam and 6x Post
$161.18
$231.80
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC5 1/4-6ROT Description
The Simpson ECC5 1/4-6ROT End Column Cap enhances the strength and stability of construction projects, providing a durable column-to-beam connection for wood construction.
Simpson Strong-Tie ECC5 1/4-6ROT Includes
- (1) Simpson ECC5 1/4-6ROT End Column Cap
Simpson Strong-Tie ECC5 1/4-6ROT Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from steel for durability
- Finished with gray paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECC5 1/4-6ROT Applications
- Column-to-beam connections in end-of-beam applications for wood construction
- Suitable for use with 6x posts or columns
- Provides enhanced support for structural connections

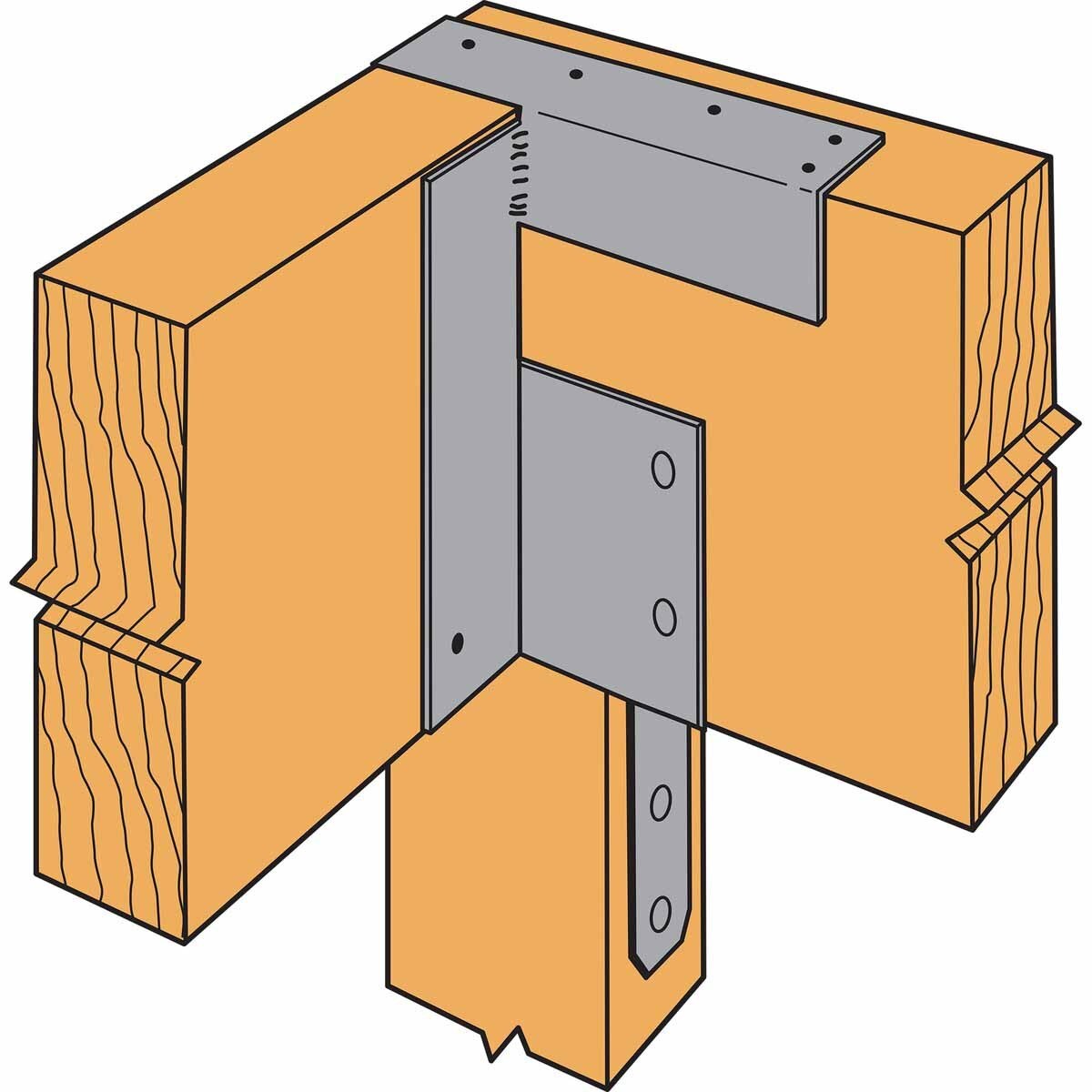

Simpson Strong-Tie ECC5 1/4-6ROT Installation Overview
- Align the column cap with the beam and post as per the design specifications
- Secure the cap using the specified fasteners: (2) 3/4" machine bolts for the beam and (2) 3/4" machine bolts for the post
- Ensure all bolts are tightened to the required torque specifications
Simpson Strong-Tie ECC5 1/4-6ROT Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 5-1/8x |
| Fasteners required | Beam - (2) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
