Simpson Anchors | SKU:
ECC5 1/4-8

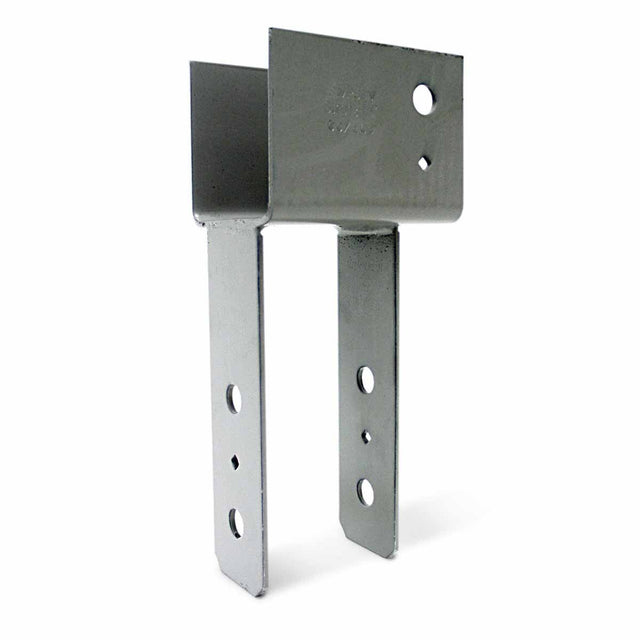

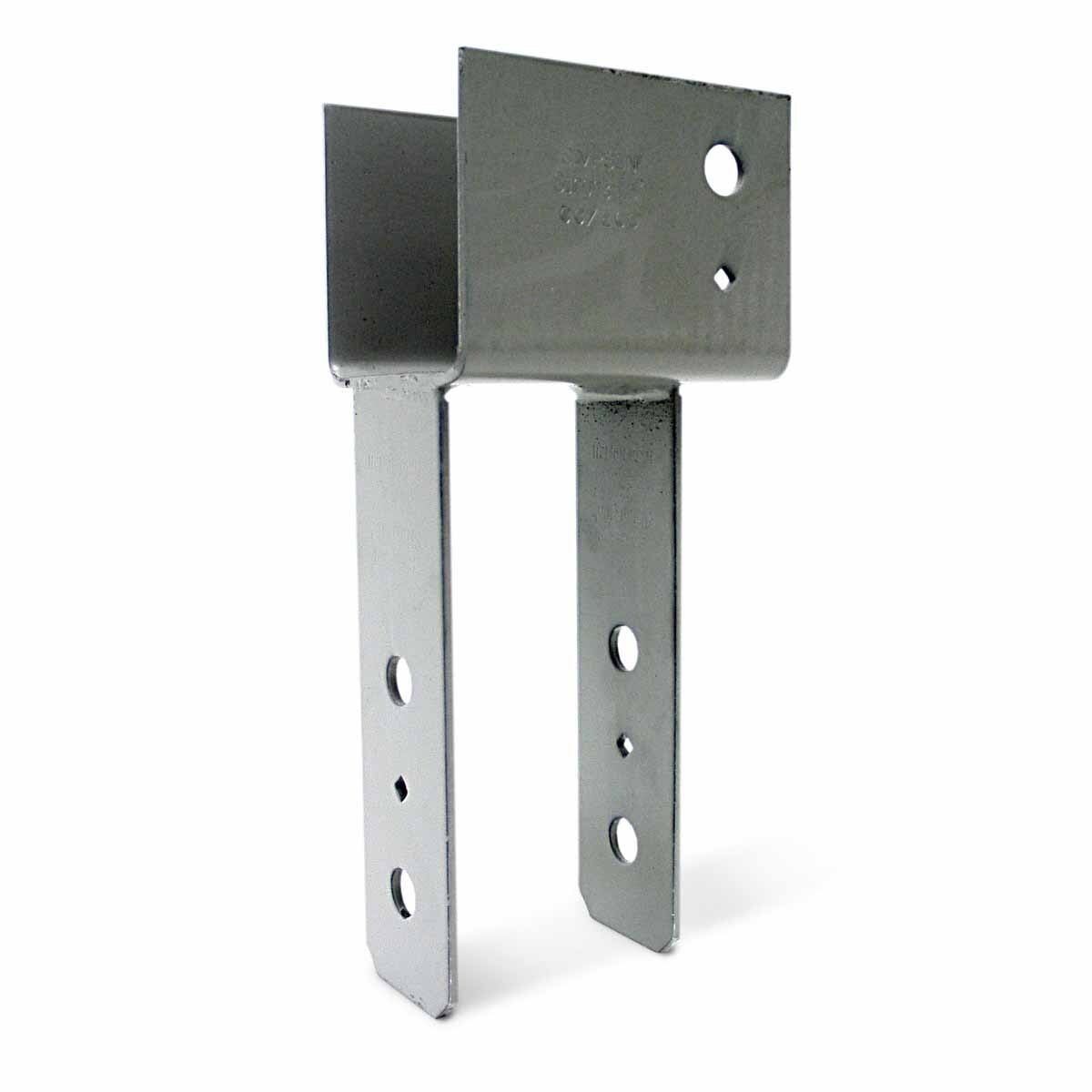

Simpson Strong-Tie ECC5 1/4-8 (5-1/8" x 8") End Column Cap for Beam and Post - Heavy-Duty Steel, Gray Paint
$161.18
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC5 1/4-8 Description
The Simpson ECC5 1/4-8 End Column Cap enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in end-of-beam applications for wood construction.
Simpson Strong-Tie ECC5 1/4-8 Includes
- (1) ECC5 1/4-8 End Column Cap
Simpson Strong-Tie ECC5 1/4-8 Features
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Durable heavy-gauge steel construction
- Gray paint finish for corrosion resistance
Simpson Strong-Tie ECC5 1/4-8 Applications

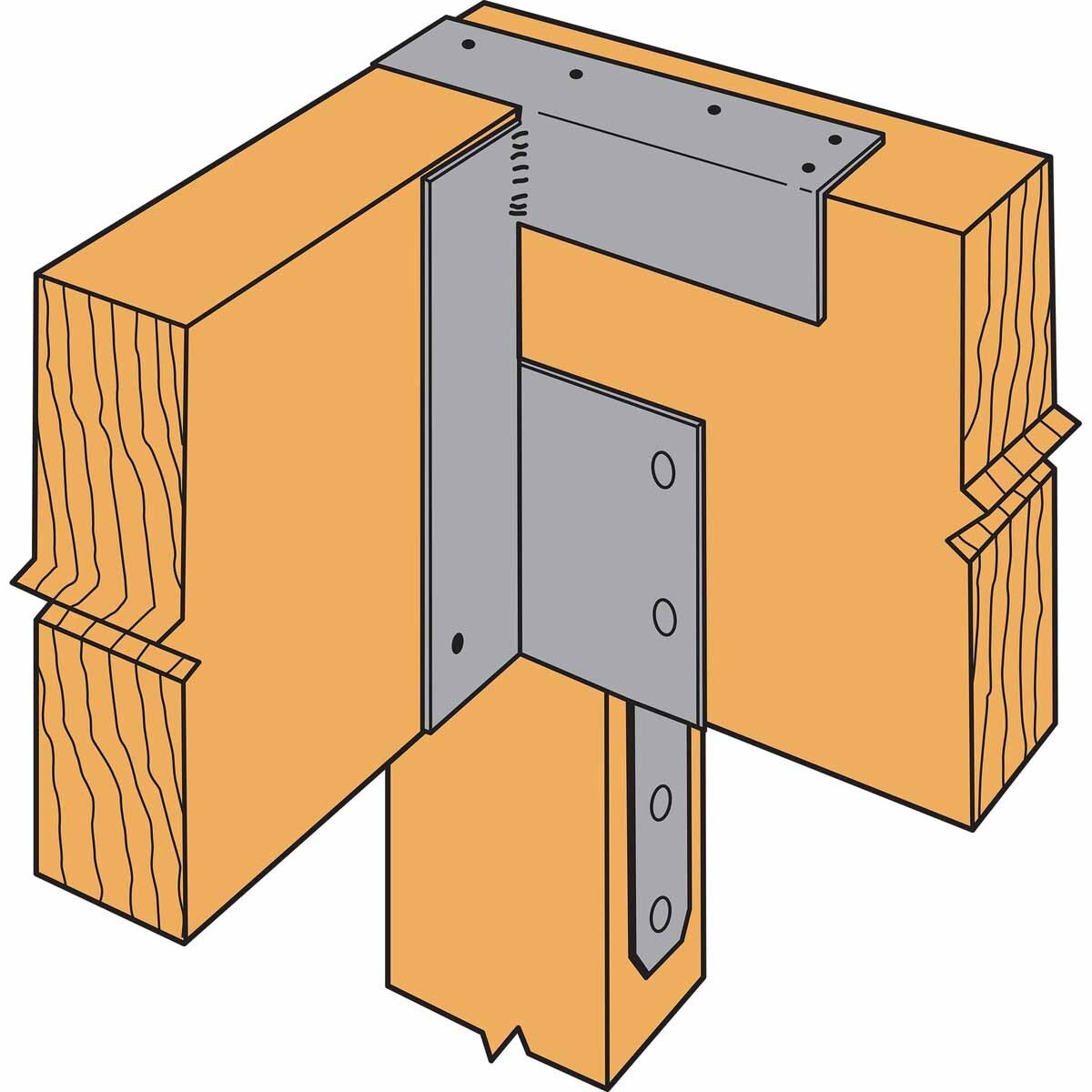

- Provides strong end-of-beam connection for column-to-beams
- Distributes load from the beam with extended column seat area
- Suitable for wood construction projects
Simpson Strong-Tie ECC5 1/4-8 Installation Overview
- Use all specified fasteners as per guidelines
- Drill bolt holes from one side through the beam to maintain tolerances
- Contact engineered wood manufacturers for non-standard connections
Simpson Strong-Tie ECC5 1/4-8 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 5-1/8x |
| Fasteners required | Beam - (2) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 8x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
