Simpson Anchors | SKU:
ECC64
Simpson Strong-Tie ECC64 (6x Beam, 4x Post) End Column Cap - Heavy-Duty Steel, Gray Paint
$110.92
$159.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC64 Description

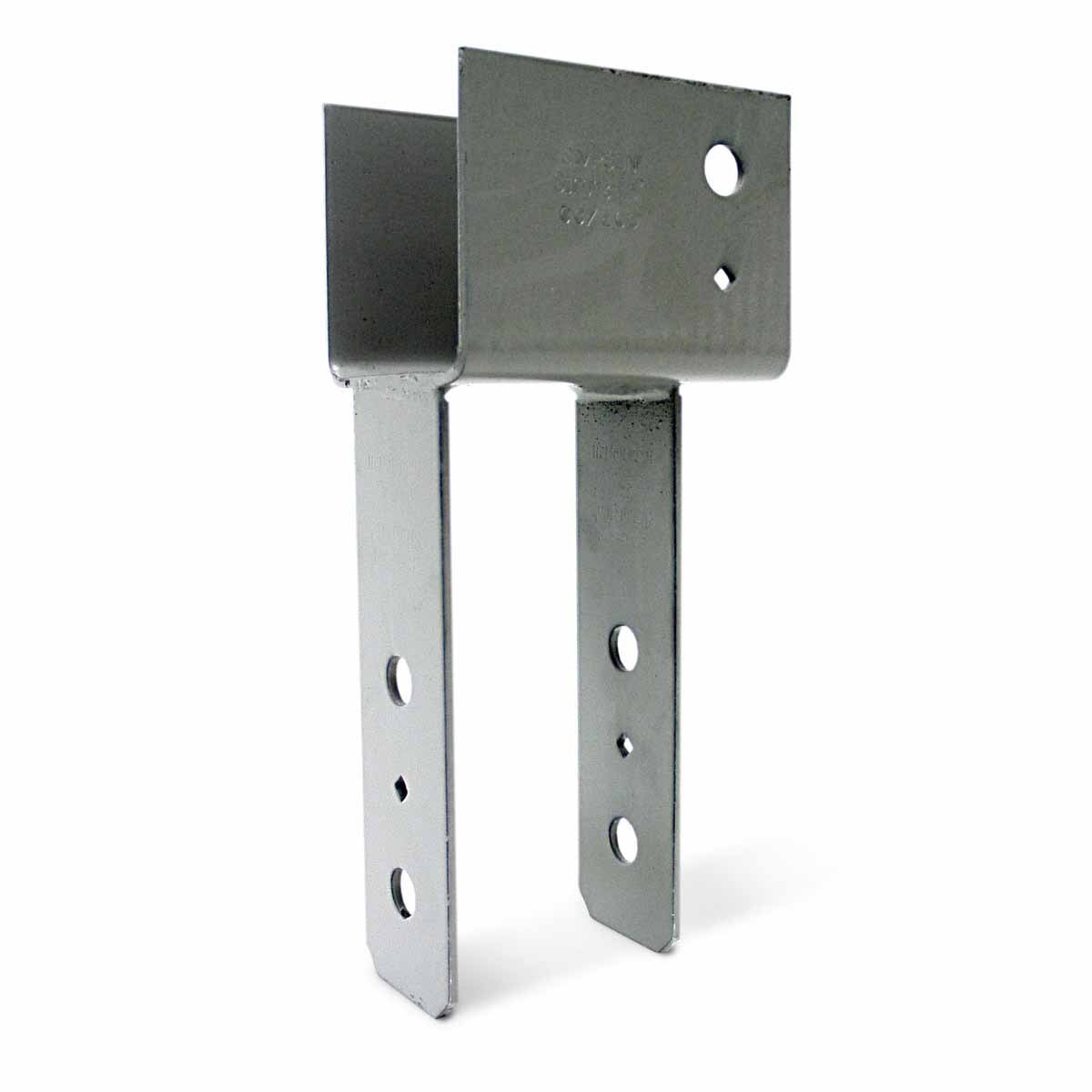

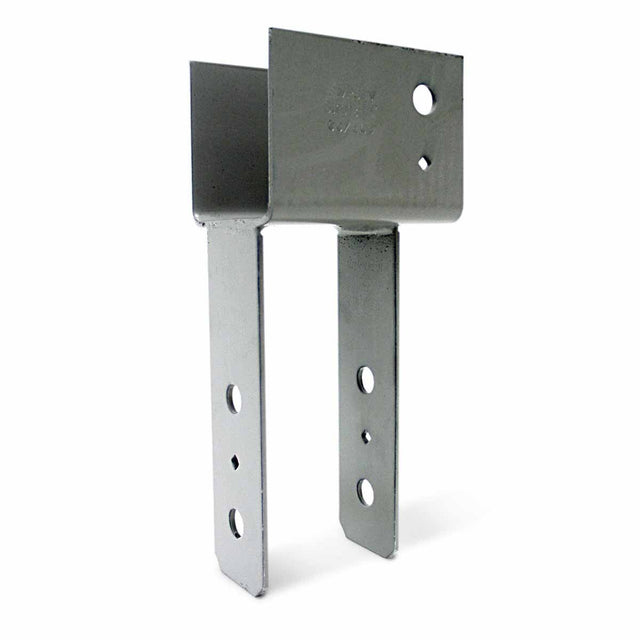

The Simpson ECC64 End Column Cap enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in end-of-beam applications for wood construction.
Simpson Strong-Tie ECC64 Includes
- (1) ECC64 End Column Cap
Simpson Strong-Tie ECC64 Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Simpson Strong-Tie ECC64 Applications

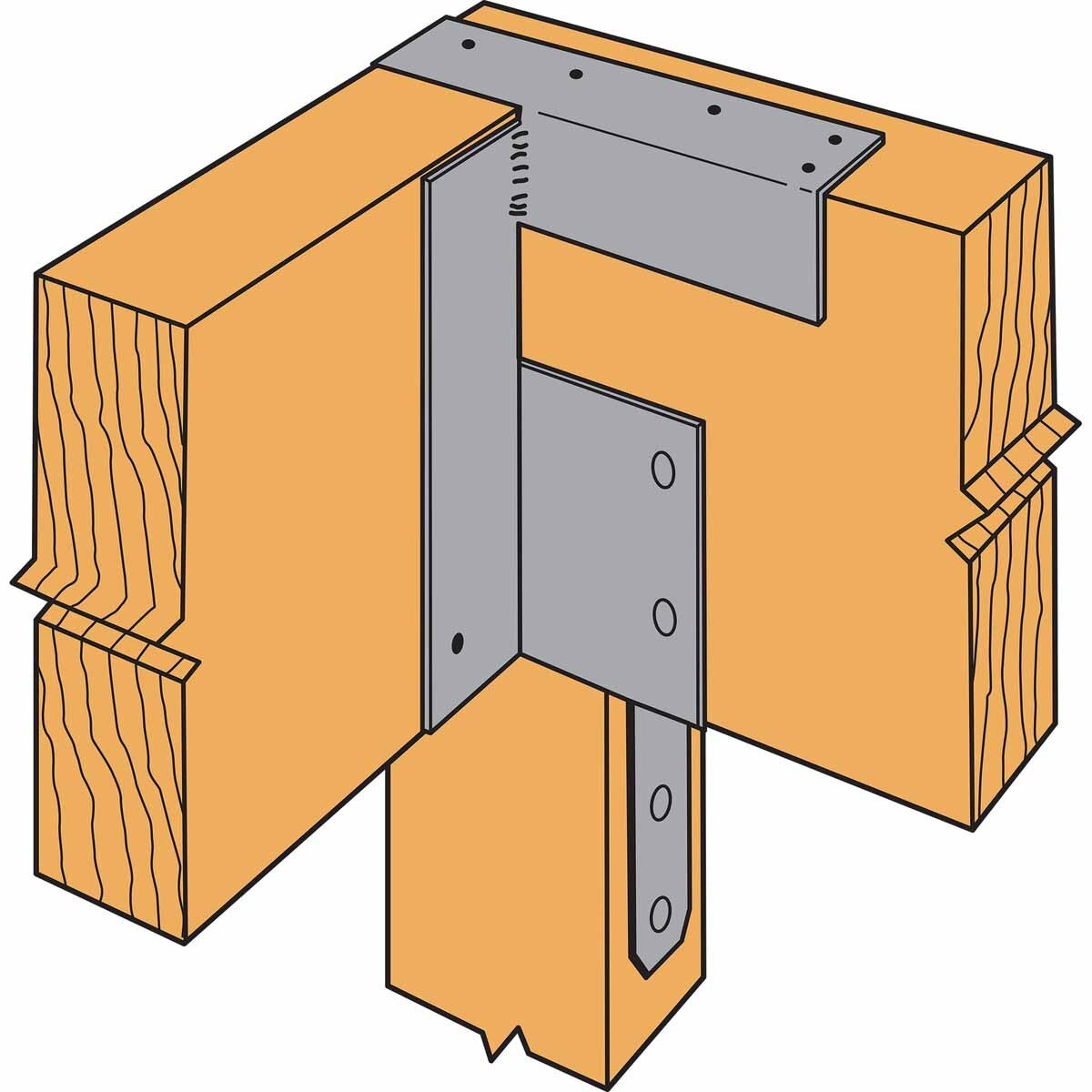

- Provides strong end-of-beam connection for column-to-beams
- Distributes load from the beam for enhanced support
- Suitable for wood construction projects
Simpson Strong-Tie ECC64 Installation Overview
- Use all specified fasteners; see General Notes
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter
- Contact engineered wood manufacturers for connections that are not through the wide face
Simpson Strong-Tie ECC64 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 6x |
| Fasteners required | Beam - (2) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 7 Gauge |
