Simpson Anchors | SKU:
ECC64HDG
Simpson Strong-Tie ECC64HDG End Column Cap Hot Dip Galvanized for 6x Beam to 4x Post Wood Connection
$167.87
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC64HDG Description

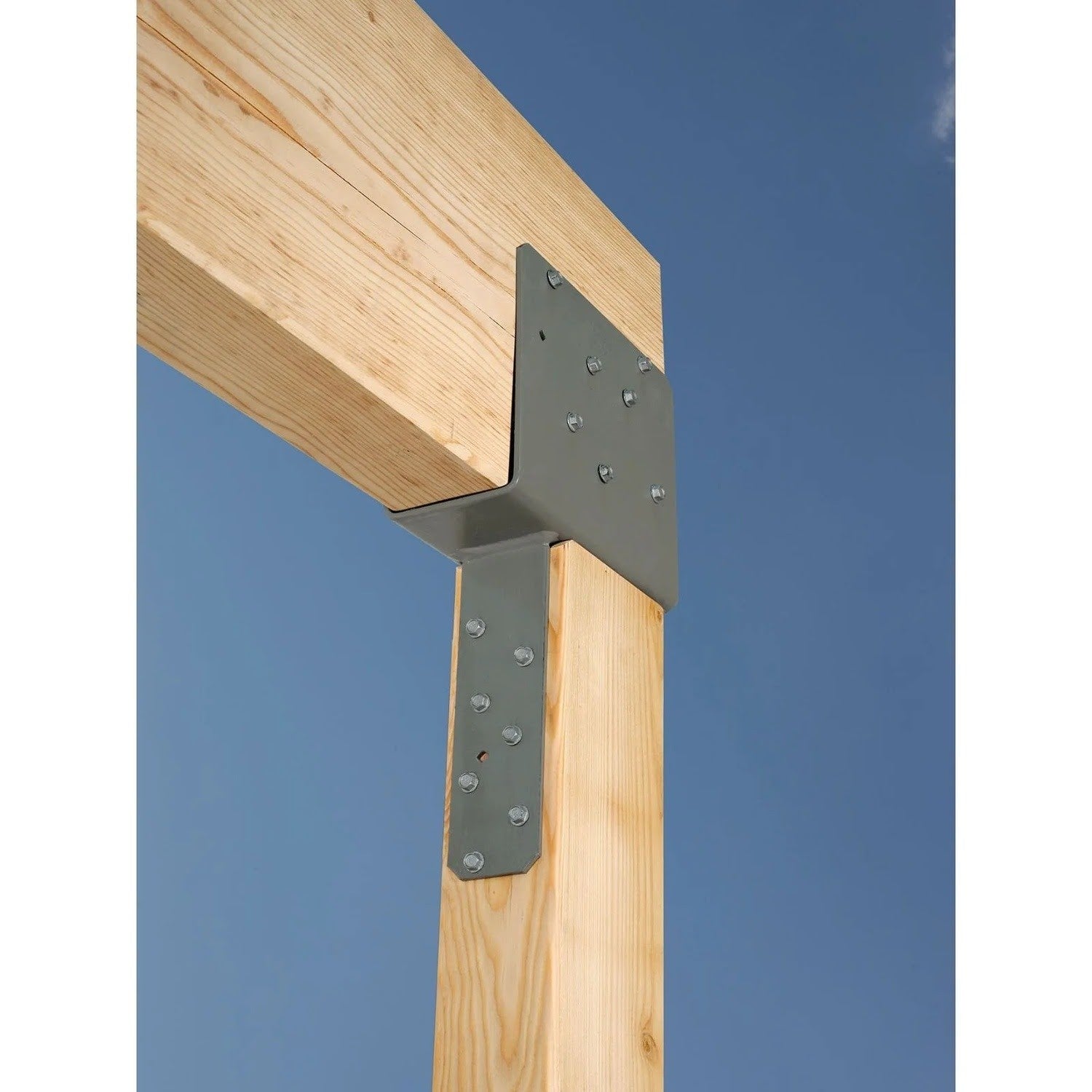

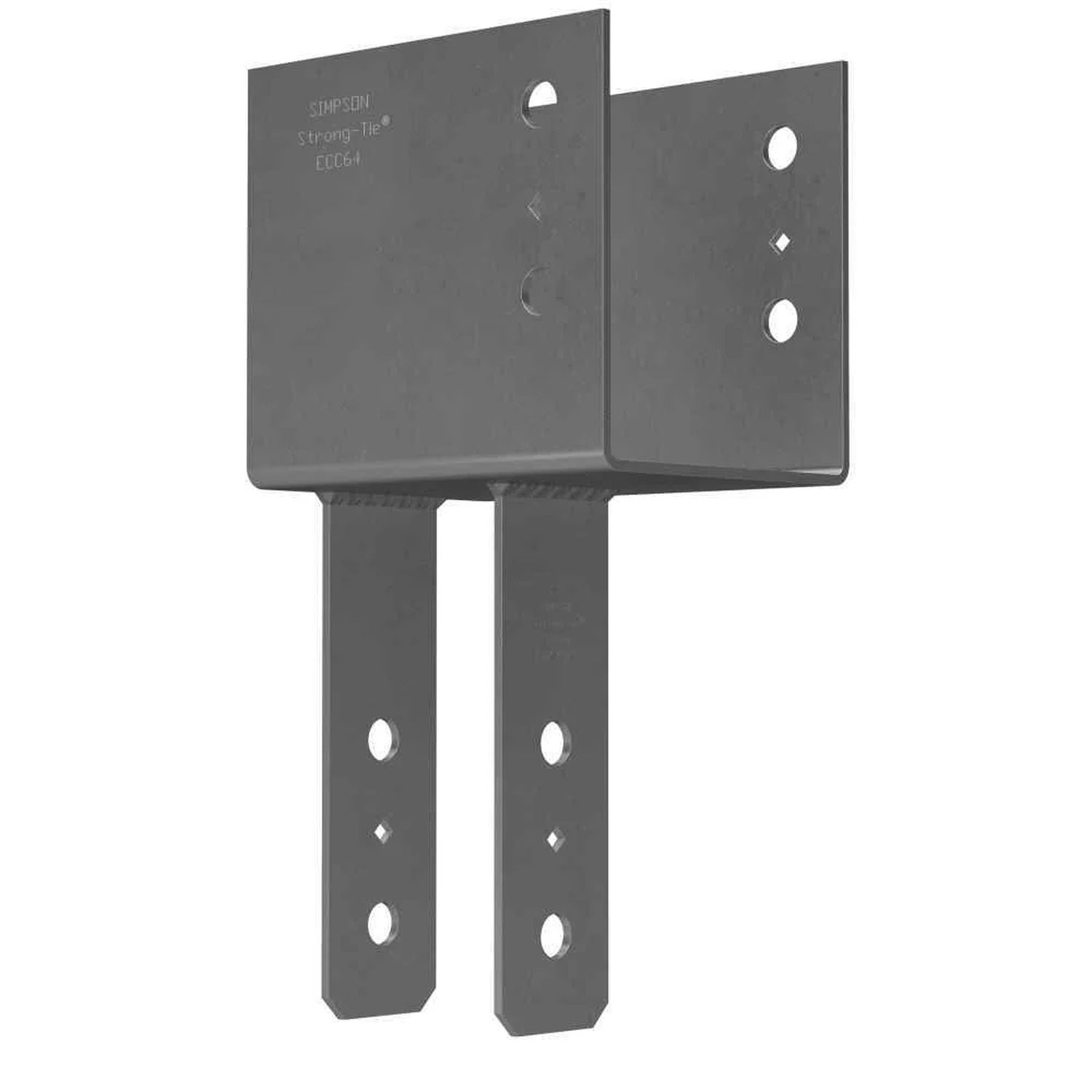

The Simpson ECC64HDG End Column Cap enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in end-of-beam applications for wood construction.
Simpson Strong-Tie ECC64HDG Includes
- (1) Simpson ECC64HDG End Column Cap
Simpson Strong-Tie ECC64HDG Features
- Provides strong end-of-beam connection for column-to-beams.
- Extended area of the column seat offers additional surface area of bearing to distribute the load.
- Made from Steel for durability and finished with Hot Dip Galvanized coating.
- Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
- Features diamond holes to provide temporary fastening during installation.
- Bolt spacing meets NDS code requirements.
Simpson Strong-Tie ECC64HDG Applications
- Column-to-beam connections in wood construction.
- End-of-beam applications requiring enhanced load distribution.
Simpson Strong-Tie ECC64HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Steel |
| Beam size | 6x |
| Fasteners required | Beam - (2) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | Yes |
| Post size | 4x |
| Thickness | 7 Gauge |
NOTE: This item is made to order and is non-returnable.
