Simpson Anchors | SKU:
ECC66HDG

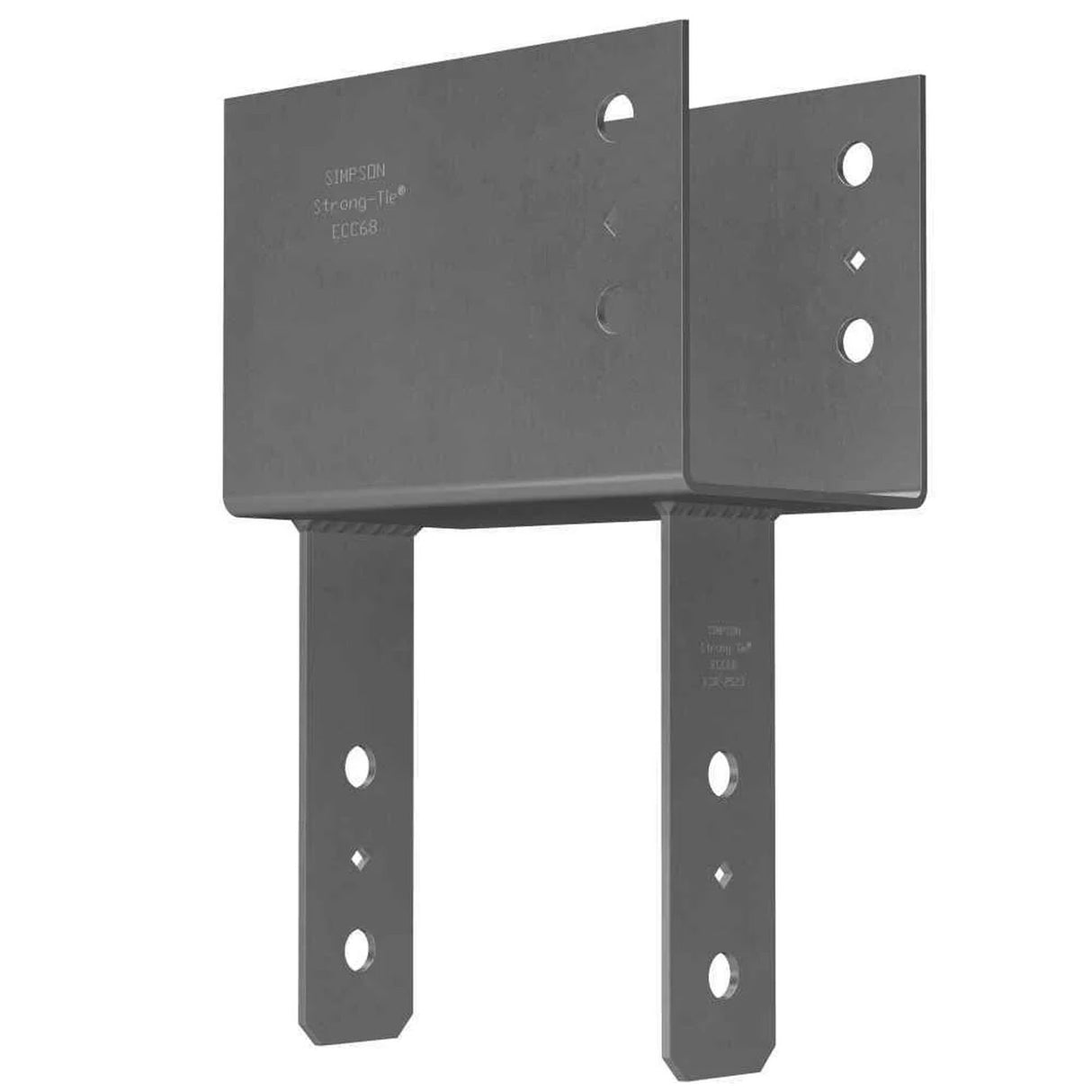

Simpson Strong-Tie ECC66HDG End Column Cap for 6x Beam and 6x Post
$167.87
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC66HDG Description

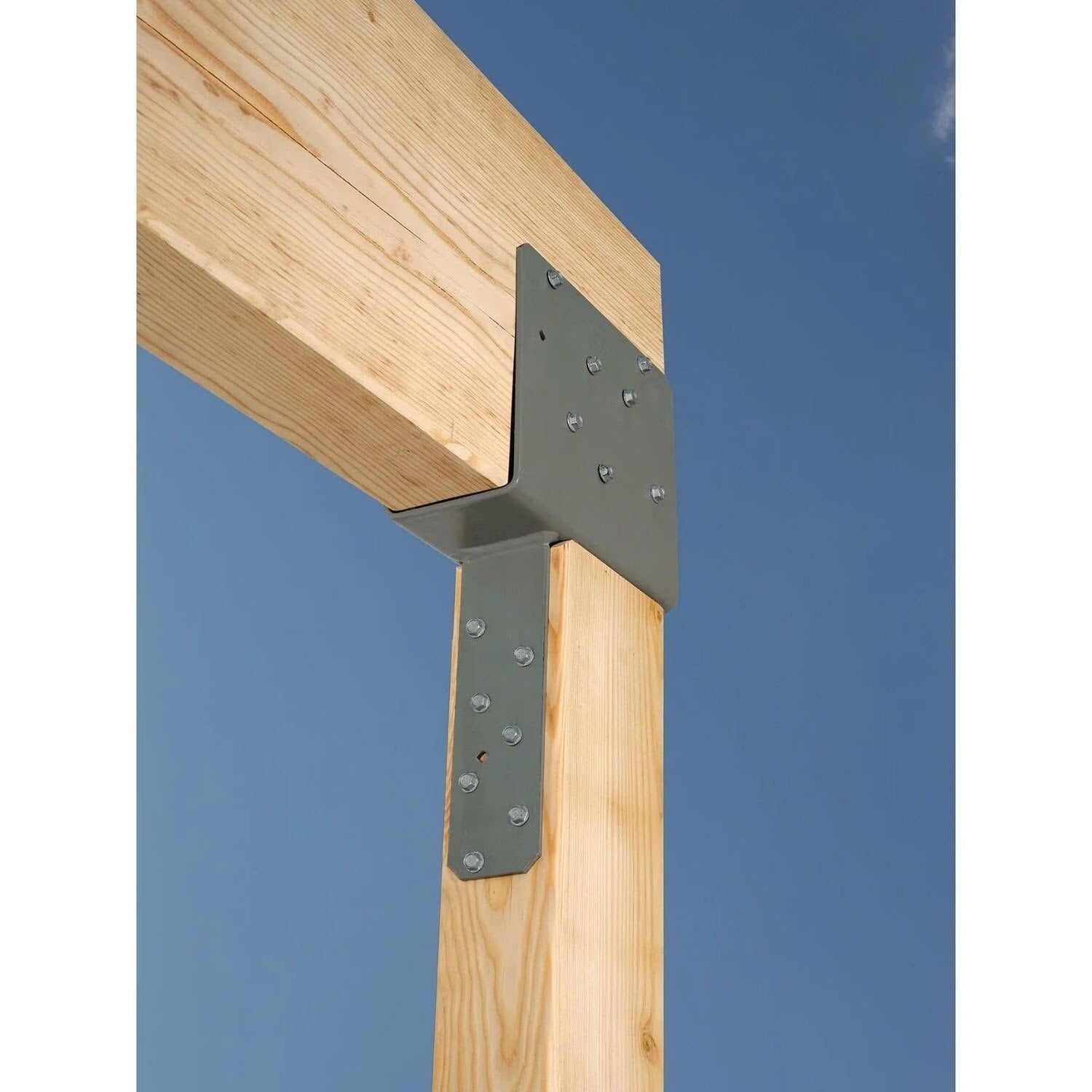

The Simpson ECC66HDG End Column Cap enhances the strength and stability of your construction projects, providing a durable column-to-beam connection for wood construction.
Simpson Strong-Tie ECC66HDG Includes
- (1) End Column Cap for 6x Beam and 6x Post
Simpson Strong-Tie ECC66HDG Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability
- Finished with Hot Dip Galvanized coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECC66HDG Applications
- Column-to-beam connections in wood construction
- End-of-beam applications for enhanced structural support
Simpson Strong-Tie ECC66HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Galvanized Steel |
| Beam size | 6x |
| Fasteners required | Beam - (2) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | Yes |
| Post size | 6x |
| Thickness | 7 Gauge |
