Simpson Anchors | SKU:
ECC66ROT

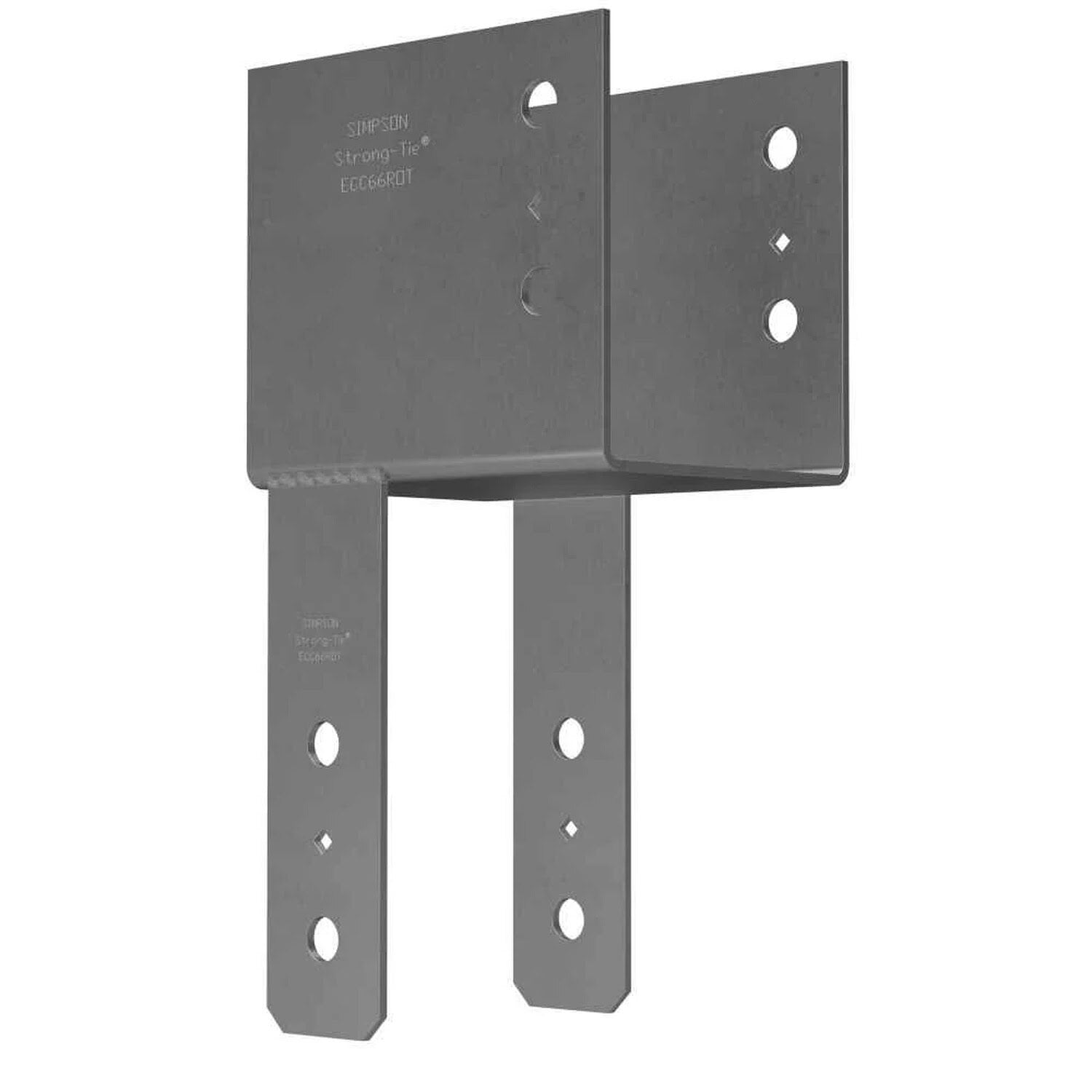

Simpson Strong-Tie ECC66ROT End Column Cap for 6x Beam and 6x Post with Rotated Straps
$110.92
$159.53
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson Strong-Tie ECC66ROT Description
The Simpson ECC66ROT End Column Cap enhances the strength and stability of construction projects, providing robust column-to-beam connections for wood construction.
Simpson Strong-Tie ECC66ROT Includes
- (1) Simpson ECC66ROT End Column Cap
Simpson Strong-Tie ECC66ROT Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECC66ROT Applications
- Column-to-beam connections in wood construction
- End-of-beam applications requiring enhanced support
Simpson Strong-Tie ECC66ROT Installation Overview
- Align the column cap with the beam and post
- Secure using specified fasteners
- Ensure bolt spacing meets NDS code requirements
- Verify alignment and stability after installation
Simpson Strong-Tie ECC66ROT Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 6x |
| Fasteners required | Beam - (2) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 7 Gauge |
NOTE: This item is made to order and is non-returnable.
