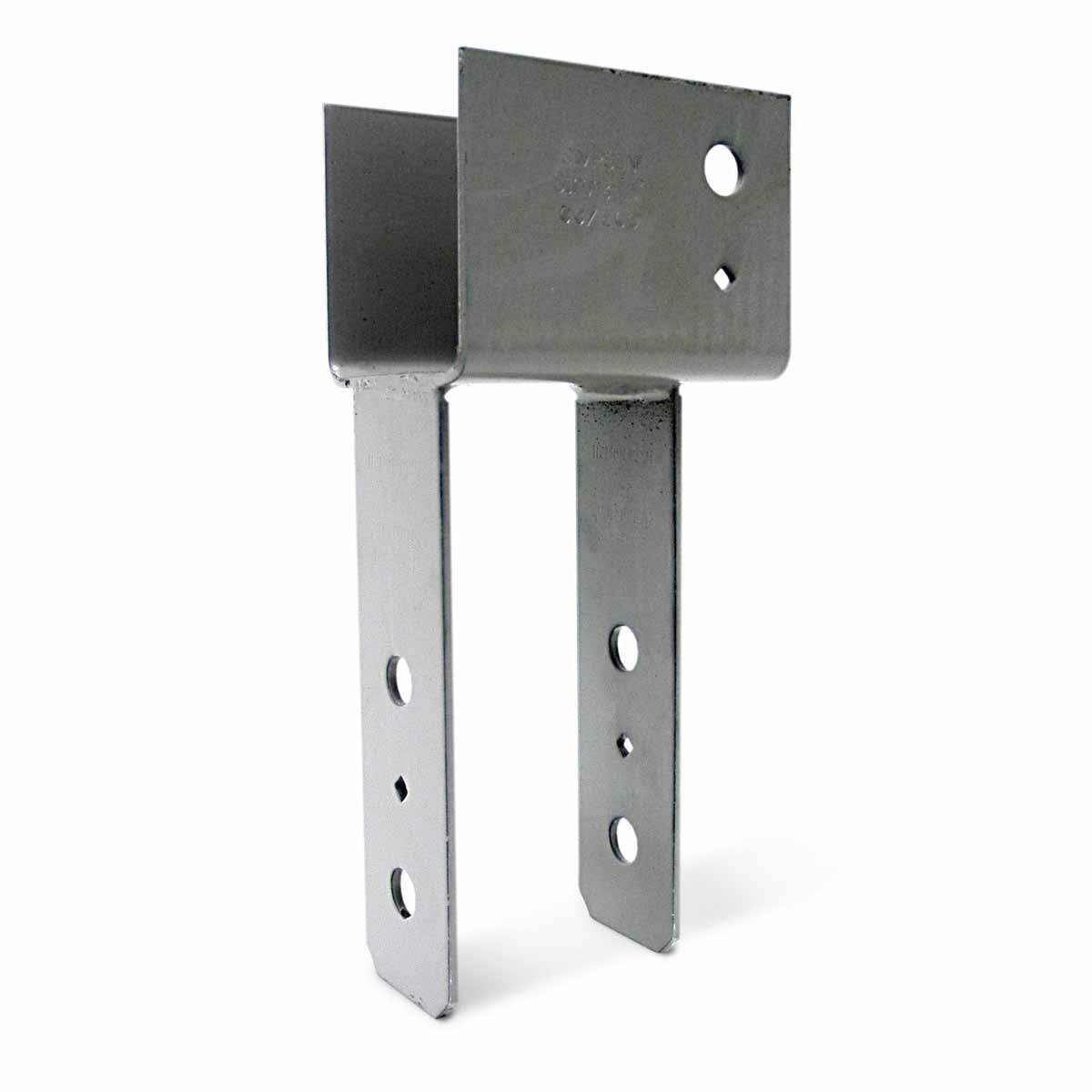

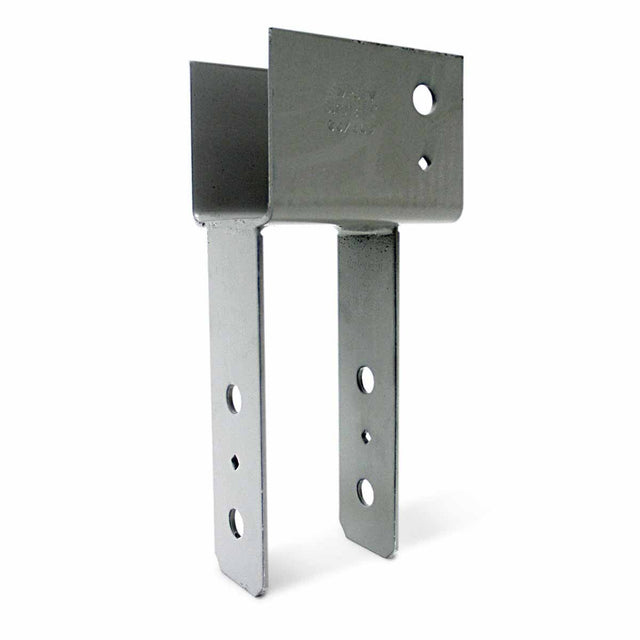

Simpson Strong-Tie ECC76 Description
The Simpson ECC76 End Column Cap enhances the strength and stability of your construction projects, providing a durable and reliable column-to-beam connection for wood construction.
Simpson Strong-Tie ECC76 Includes
- (1) End Column Cap
Simpson Strong-Tie ECC76 Features
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Made from heavy-gauge steel with a gray paint finish
Simpson Strong-Tie ECC76 Applications

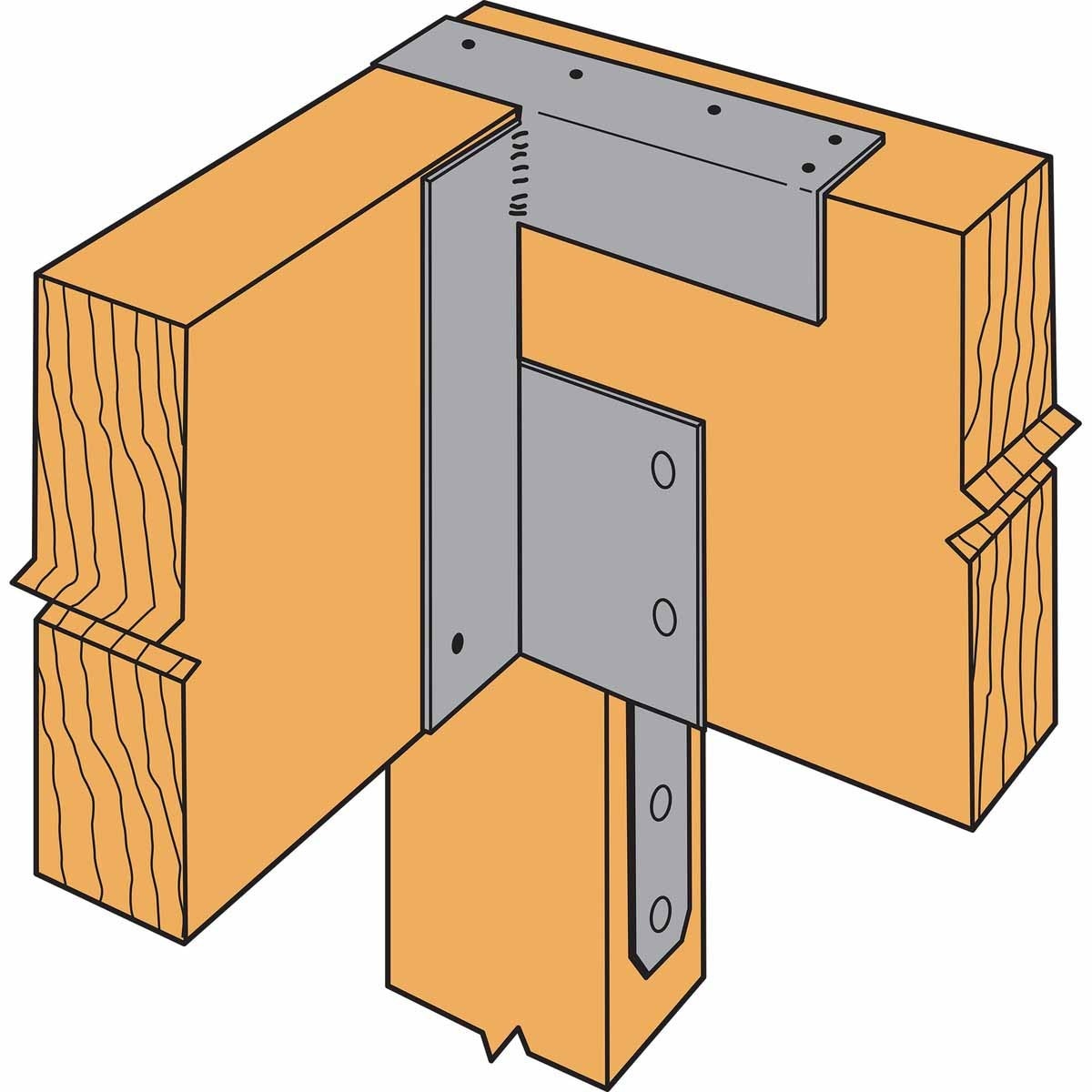

- Provides strong end-of-beam connection for column-to-beams
- Distributes load from the beam for enhanced support
- Suitable for wood construction projects
Simpson Strong-Tie ECC76 Installation Overview
- Use all specified fasteners as per guidelines
- Drill bolt holes from one side through the beam to maintain tolerances
- Contact engineered wood manufacturers for non-standard connections
Simpson Strong-Tie ECC76 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 7x |
| Post size | 6x |
| Thickness | 3 Gauge |
| Fasteners required | Beam - (2) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
NOTE: This item is made to order and is non-returnable.
