Simpson Anchors | SKU:
ECC78
Simpson Strong-Tie ECC78 End Column Cap for 7x Beam to 8x Post - Heavy-Duty Steel, Gray Paint
$164.65
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC78 Description

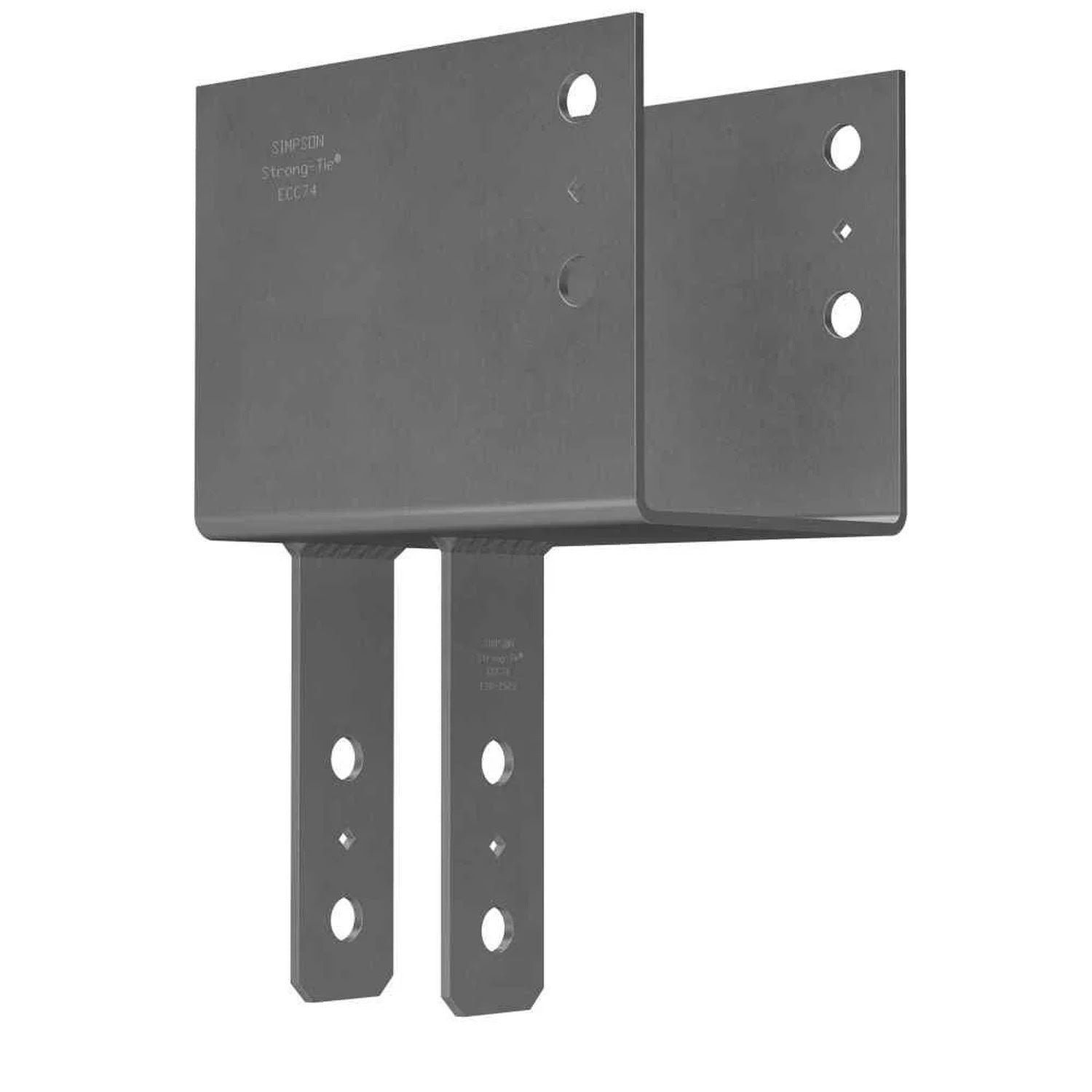

The Simpson ECC78 End Column Cap enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in end-of-beam applications for wood construction.
Simpson Strong-Tie ECC78 Includes
- (1) Simpson ECC78 End Column Cap
Simpson Strong-Tie ECC78 Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Simpson Strong-Tie ECC78 Applications

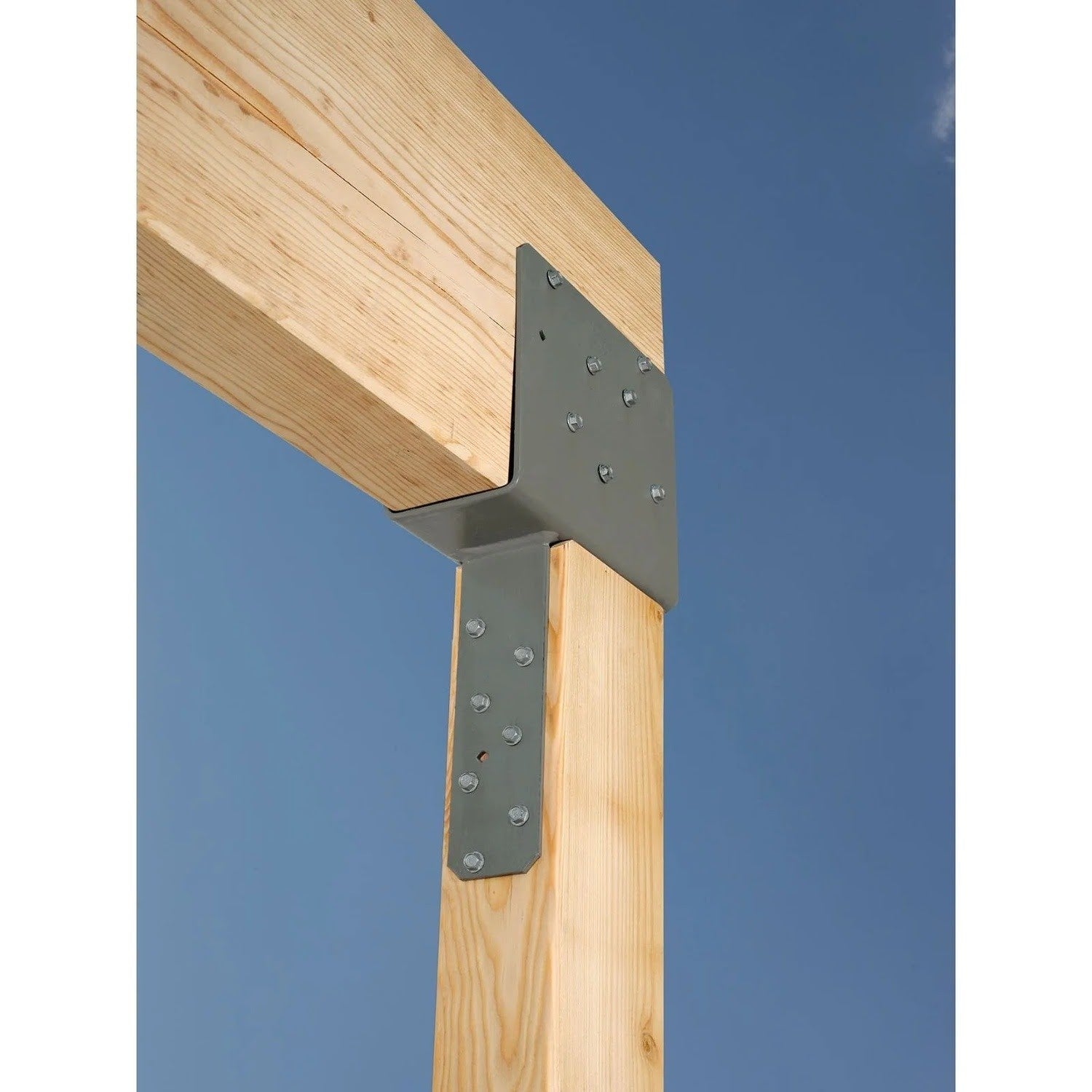

- Provides strong end-of-beam connection for column-to-beams
- Distributes load from the beam for enhanced support
Simpson Strong-Tie ECC78 Installation Overview
- Use all specified fasteners; see General Notes
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter
- Contact engineered wood manufacturers for connections that are not through the wide face
Simpson Strong-Tie ECC78 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 7x |
| Fasteners required | Beam - (2) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 8x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
