Simpson Anchors | SKU:
ECC84

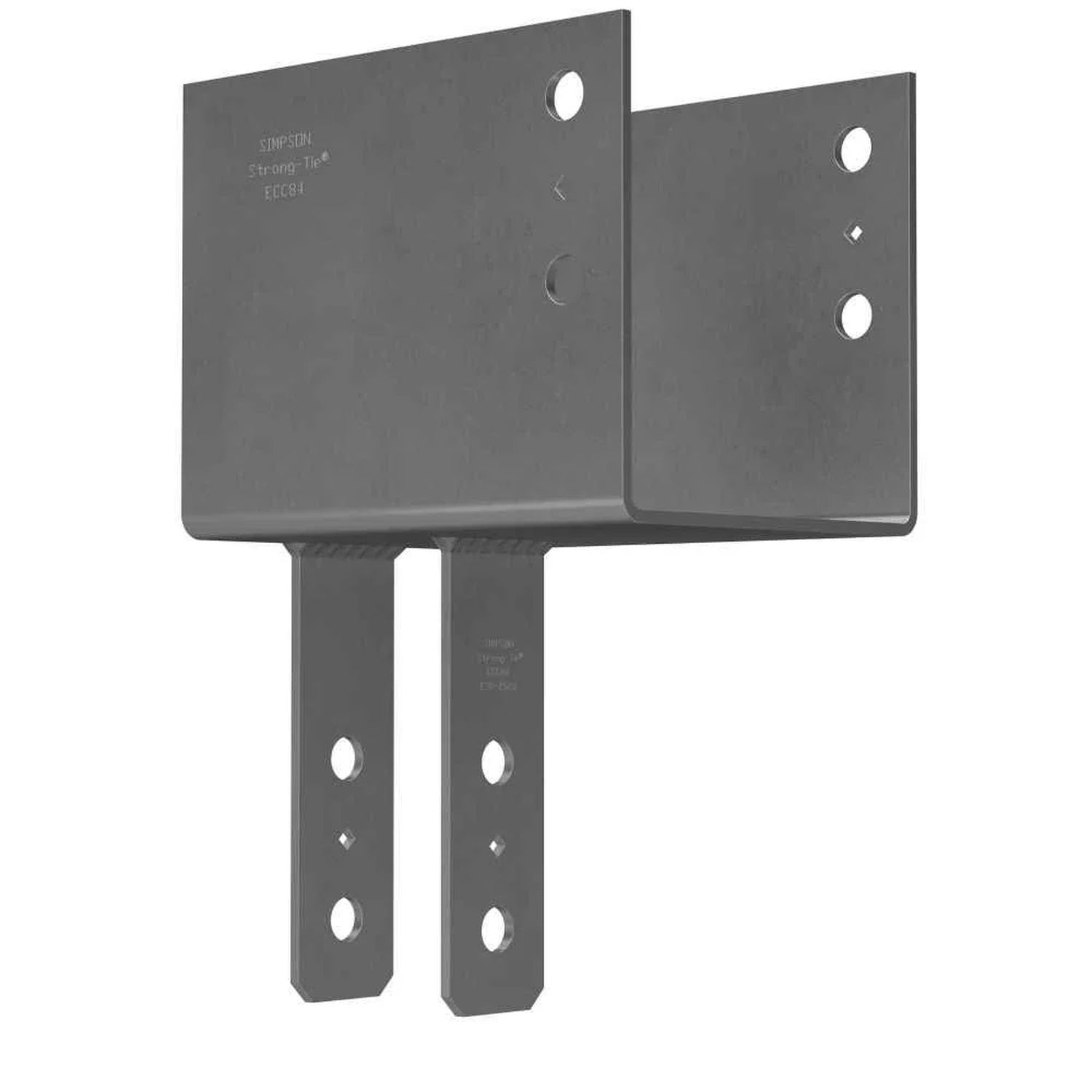

Simpson Strong-Tie ECC84 End Column Cap for 8x Beam to 4x Post Connection, Gray Paint
$174.80
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC84 Description

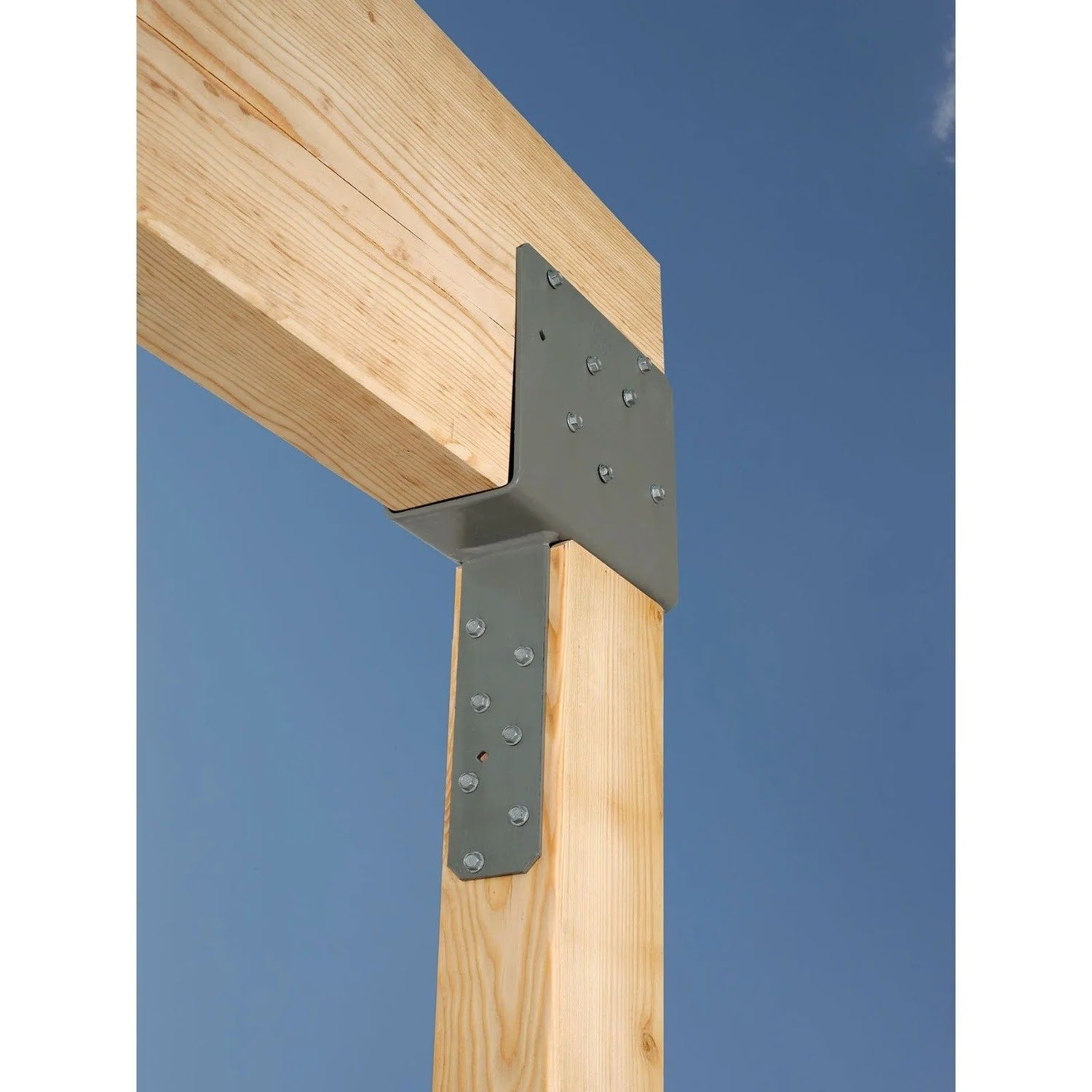

The Simpson ECC84 End Column Cap enhances the strength and stability of your construction projects, providing a durable and reliable column-to-beam connection for wood construction.
Simpson Strong-Tie ECC84 Includes
- (1) Strong-Tie End Column Cap for 8x Beam to 4x Post Connection
Simpson Strong-Tie ECC84 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability and finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECC84 Applications
- Column-to-beam connections in end-of-beam applications for wood construction
- Use with 4x posts or columns
- Suitable for 8x beams
Simpson Strong-Tie ECC84 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 8x |
| Fasteners required | Beam - (2) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
