Simpson Anchors | SKU:
ECC88

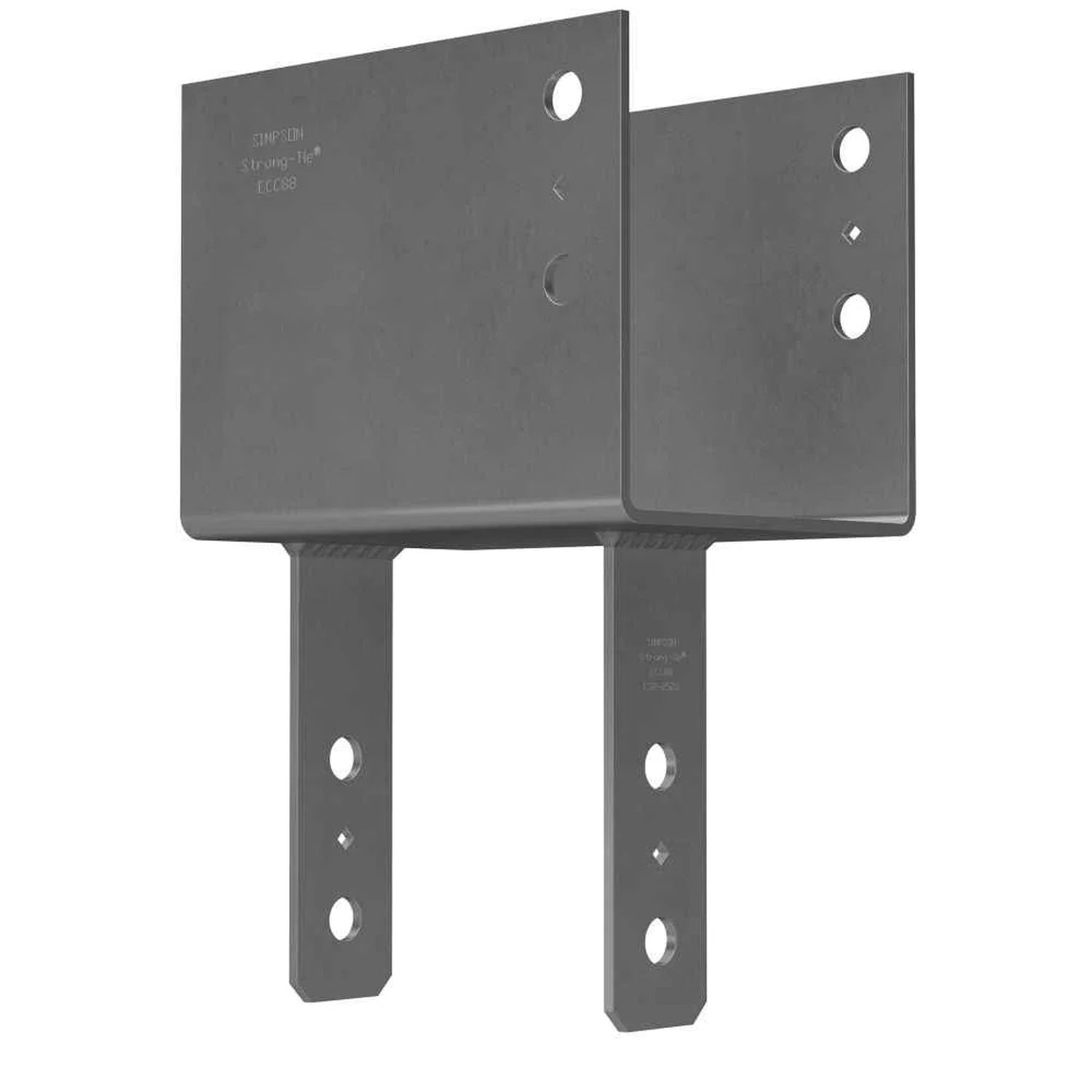

Simpson Strong-Tie ECC88 End Column Cap for 8x Beam and 8x Post - Heavy-Duty Steel Connector
$174.80
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC88 Description
The Simpson ECC88 End Column Cap enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in end-of-beam applications for wood construction.
Simpson Strong-Tie ECC88 Includes
- (1) ECC88 End Column Cap
Simpson Strong-Tie ECC88 Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Simpson Strong-Tie ECC88 Applications

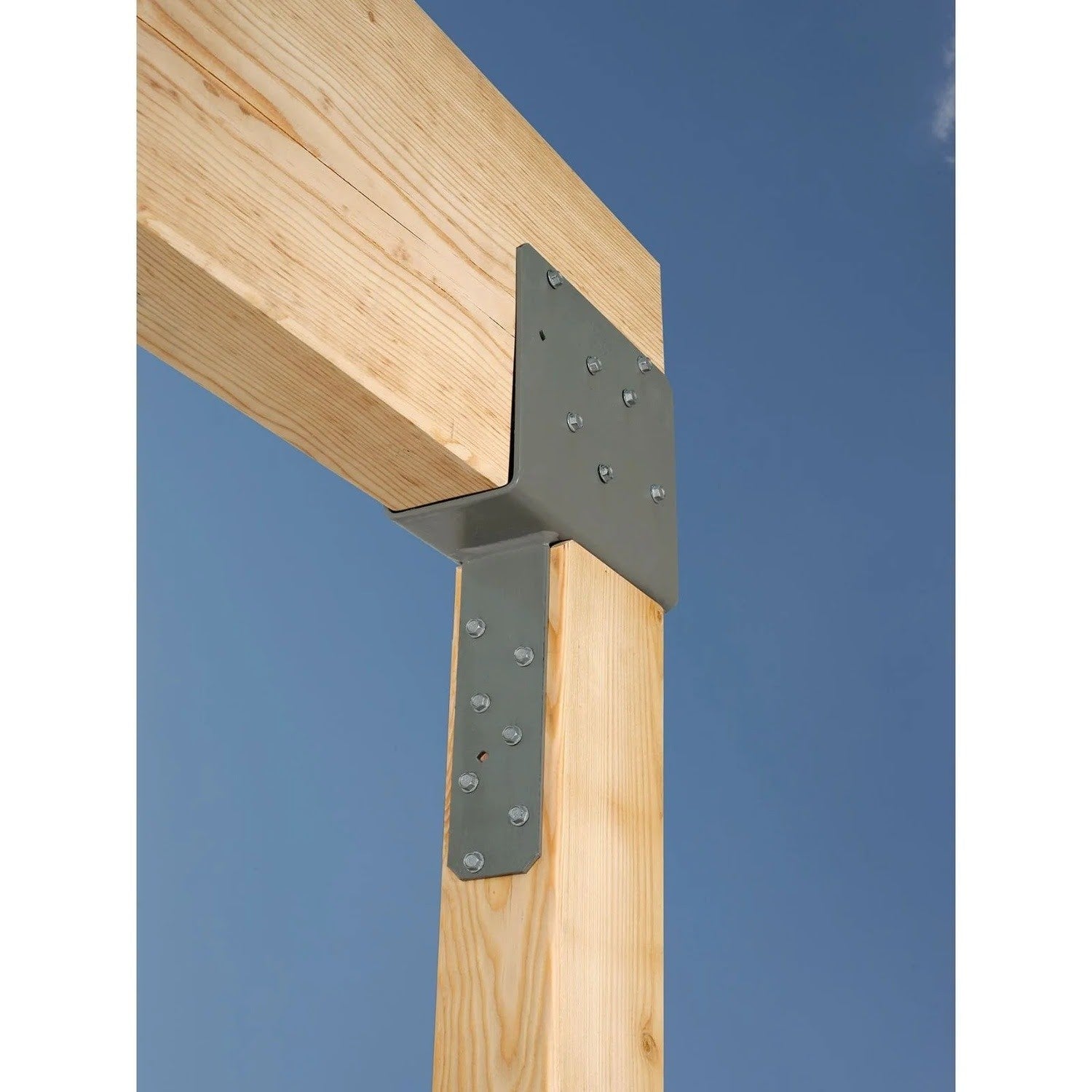

- Provides strong end-of-beam connection for column-to-beams
- Designed for use with 8x beams and 8x posts/columns
Simpson Strong-Tie ECC88 Installation Overview
- Use all specified fasteners; see General Notes
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter
- Contact engineered wood manufacturers for connections that are not through the wide face
Simpson Strong-Tie ECC88 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 8x |
| Fasteners required | Beam - (2) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 8x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
