Simpson Strong-Tie ECC94 End Column Cap for 9x Beam to 4x Post - Heavy-Duty Steel Connector
Free Shipping
$201.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECC94 Description
The Simpson ECC94 End Column Cap enhances the strength and stability of your construction projects, providing durable column-to-beam connections for wood construction.
Simpson Strong-Tie ECC94 Includes
- (1) End Column Cap
Simpson Strong-Tie ECC94 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECC94 Applications

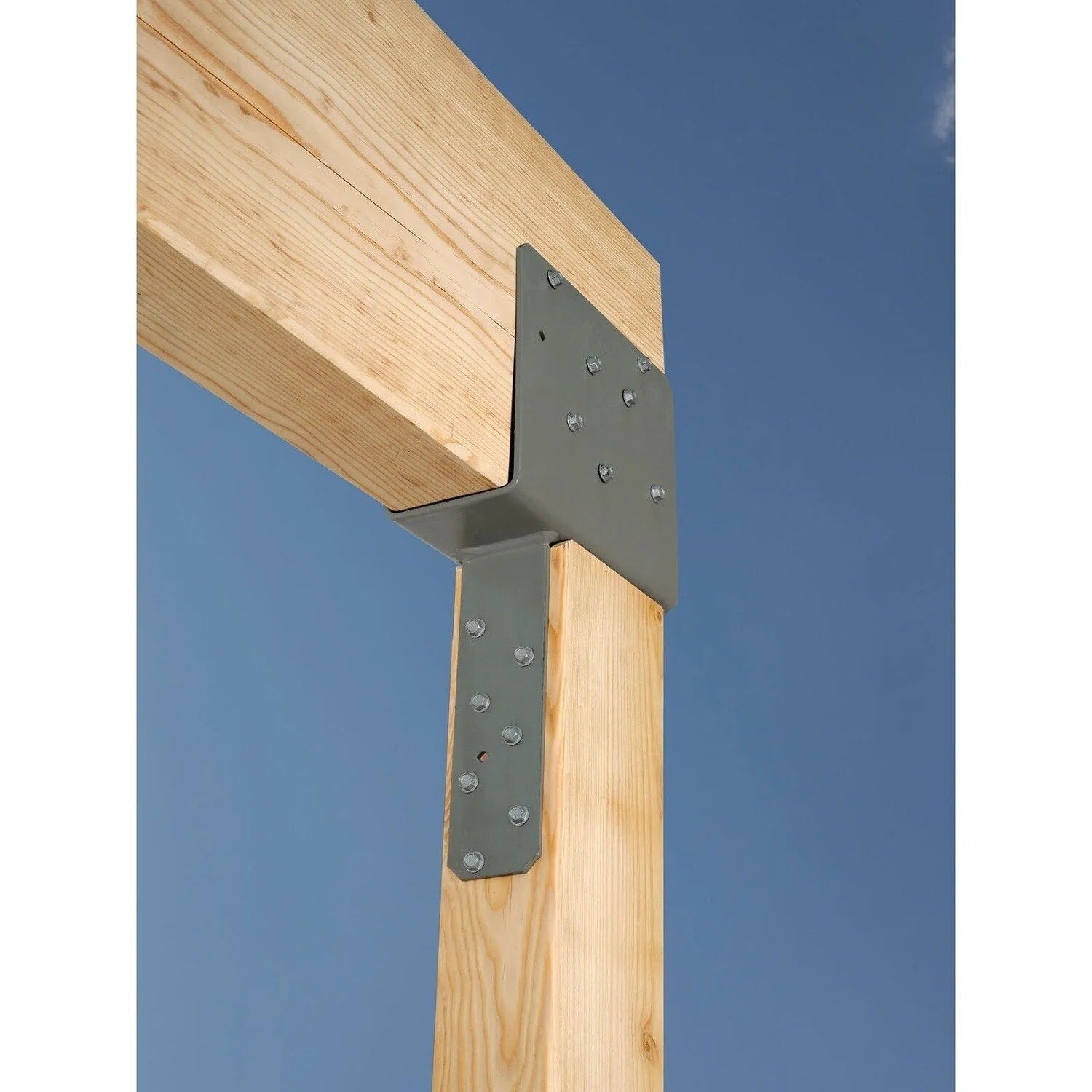

- Wood construction requiring column-to-beam connections
- End-of-beam applications for enhanced structural support
Simpson Strong-Tie ECC94 Installation Overview
- Use all specified fasteners
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter
- Drill bolt holes from one side all the way through the beam to maintain hole tolerances
- Contact engineered wood manufacturers for connections not through the wide face
Simpson Strong-Tie ECC94 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 9x |
| Fasteners required | Beam - (4) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 4x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
