Simpson Strong-Tie ECCLL444 Description

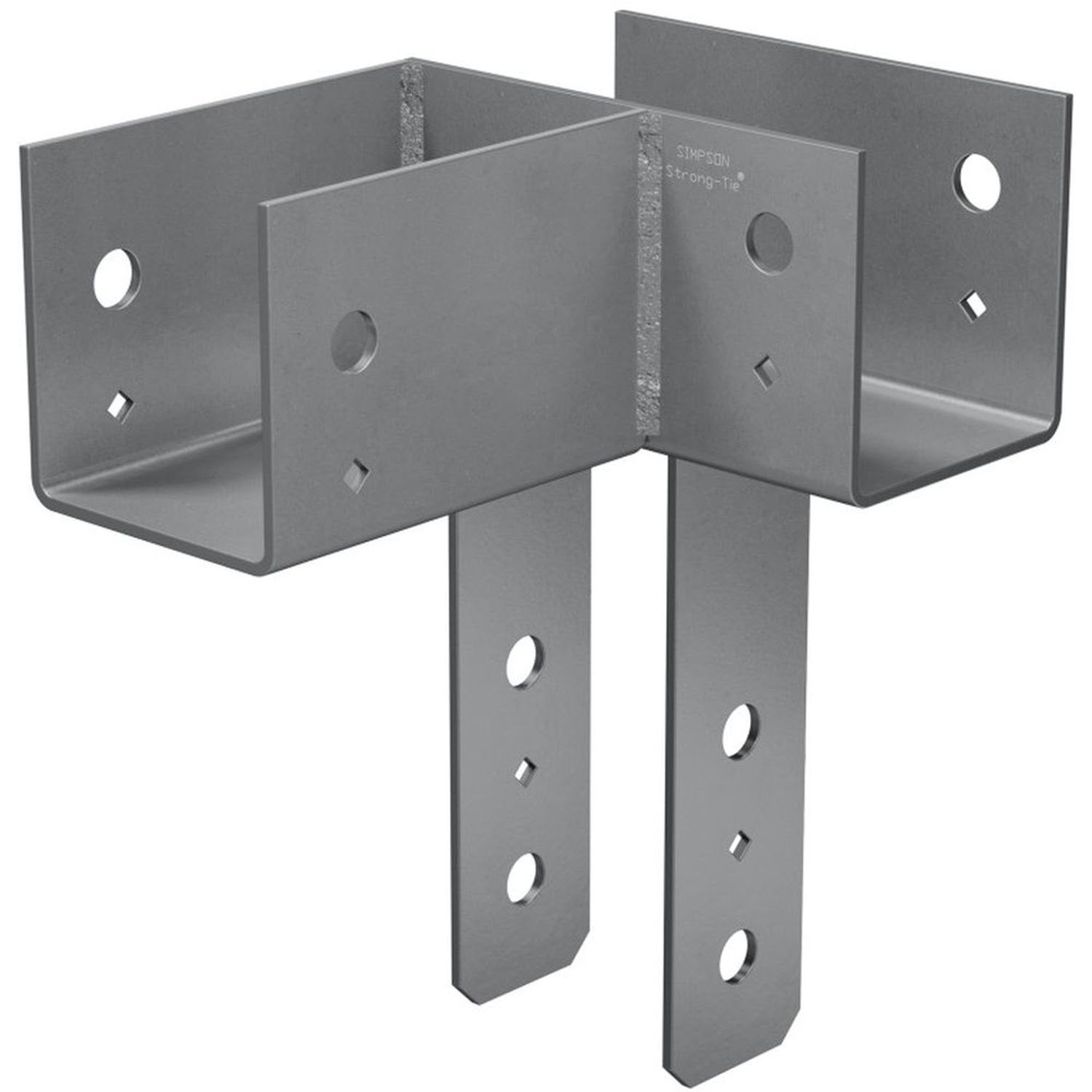

The Simpson ECCLL444 End Column Cap enhances the strength and stability of construction projects, providing durable column-to-beam connections for end-of-beam applications.
Simpson Strong-Tie ECCLL444 Includes
- (1) ECCLL444 End Column Cap
Simpson Strong-Tie ECCLL444 Features
- Certified welds for strength and loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Made from heavy-gauge steel
- Finished with gray paint coating
Simpson Strong-Tie ECCLL444 Applications
- Provides strong end-of-beam connection for column-to-beams forming an "L"
- Distributes load effectively with extended column seat area
- Suitable for earthquake or wind loading scenarios
Simpson Strong-Tie ECCLL444 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure bolt holes are within specified size range
Simpson Strong-Tie ECCLL444 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Beam size | 4x |
| Post size | 4x |
| Thickness | 7 Gauge |
| Weight | 11.2 lb |
NOTE: This item is made to order and is non-returnable.
Toolup Part # :
819287
