Simpson Anchors | SKU:
ECCLL464

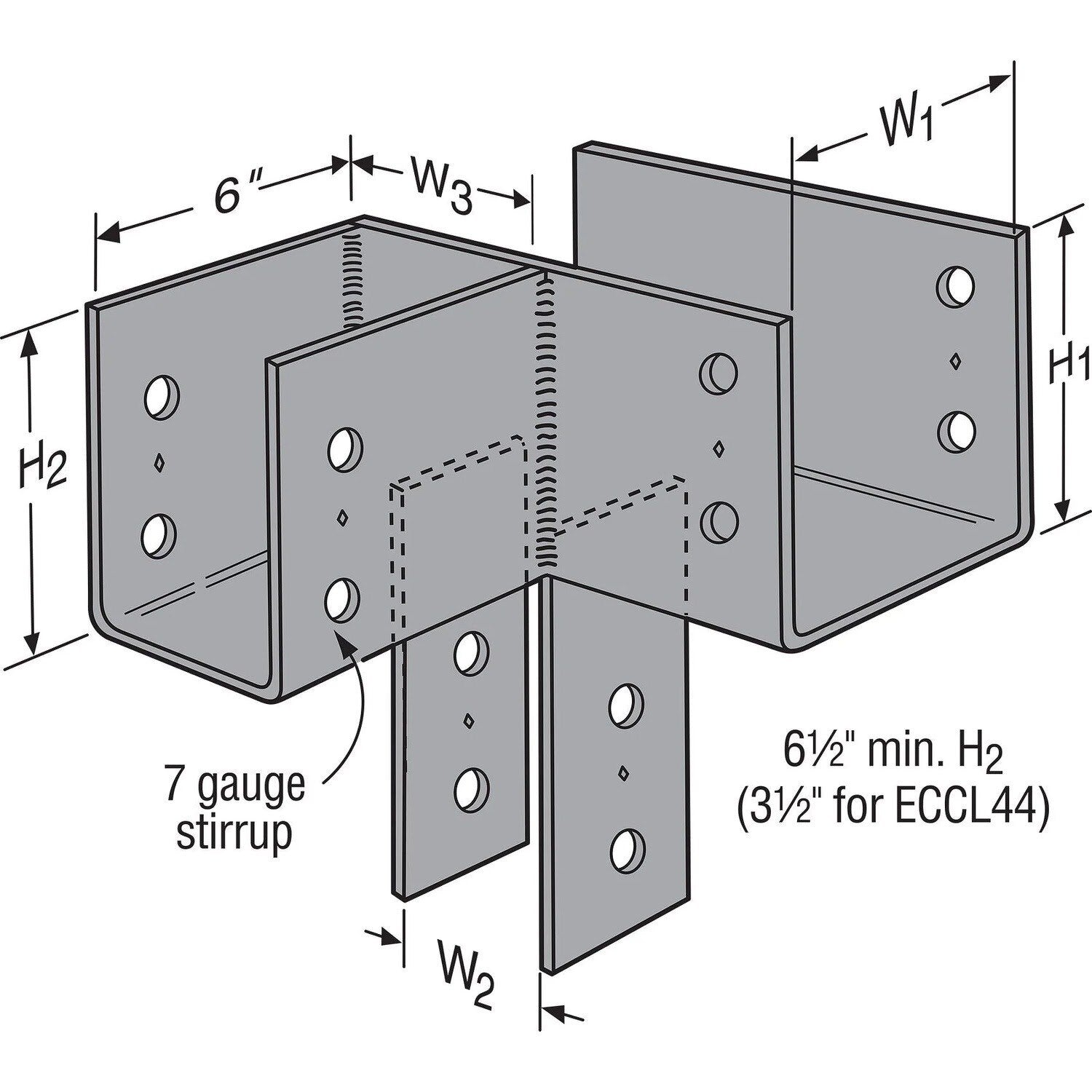

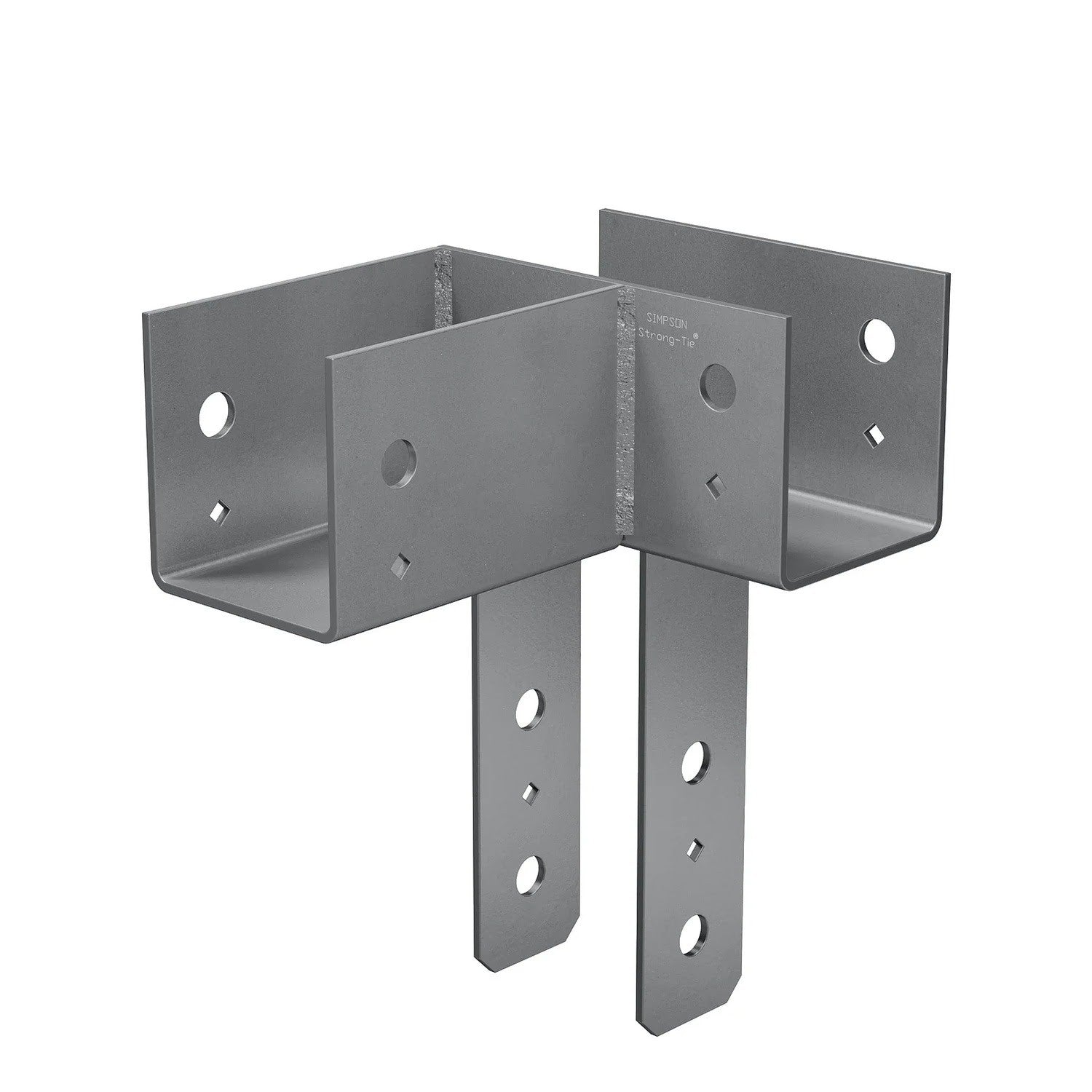

Simpson Strong-Tie ECCLL464 L-Shape End Column Cap for 4x Beams, 6x Post, Left Direction - Heavy-Duty Steel Connector
Free Shipping
$285.46
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECCLL464 Description
The Simpson ECCLL464 End Column Cap enhances the strength and stability of construction projects, providing durable column-to-beam connections for end-of-beam applications.
Simpson Strong-Tie ECCLL464 Includes
- (1) Strong-Tie L-Shape End Column Cap for 4x Beams, 6x Post, Left Direction - Heavy-Duty Steel Connector
Simpson Strong-Tie ECCLL464 Features
- Certified welds for strength and loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Made from heavy-gauge steel
- Finished with gray paint coating
Simpson Strong-Tie ECCLL464 Applications

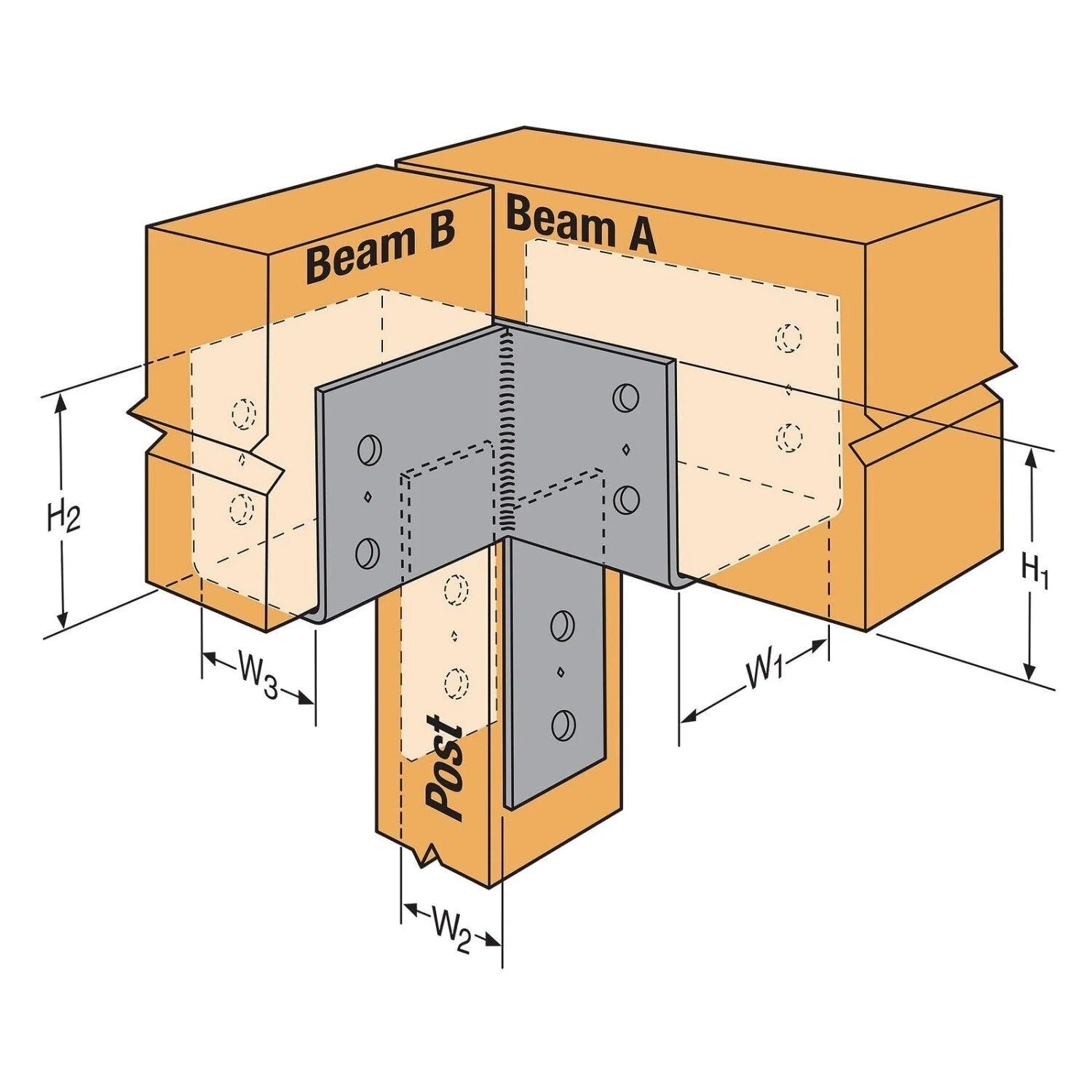

- Provides strong end-of-beam connection for column-to-beams forming an 'L'
- Distributes load effectively with extended column seat area
- Suitable for use with 6x posts or columns and 4x beams
Simpson Strong-Tie ECCLL464 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure bolt holes are within specified size range
Simpson Strong-Tie ECCLL464 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Beam size | 4x |
| Post size | 6x |
| Thickness | 7 Gauge |
| Fasteners required | Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2" |
| Height | 15-3/16" |
NOTE: This item is made to order and is non-returnable.
