Simpson Anchors | SKU:
ECCLL666
Simpson Strong-Tie ECCLL666 L-Shape End Column Cap for 6x Beams and 6x Post, Skewed Left
Free Shipping
$302.28
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECCLL666 Description

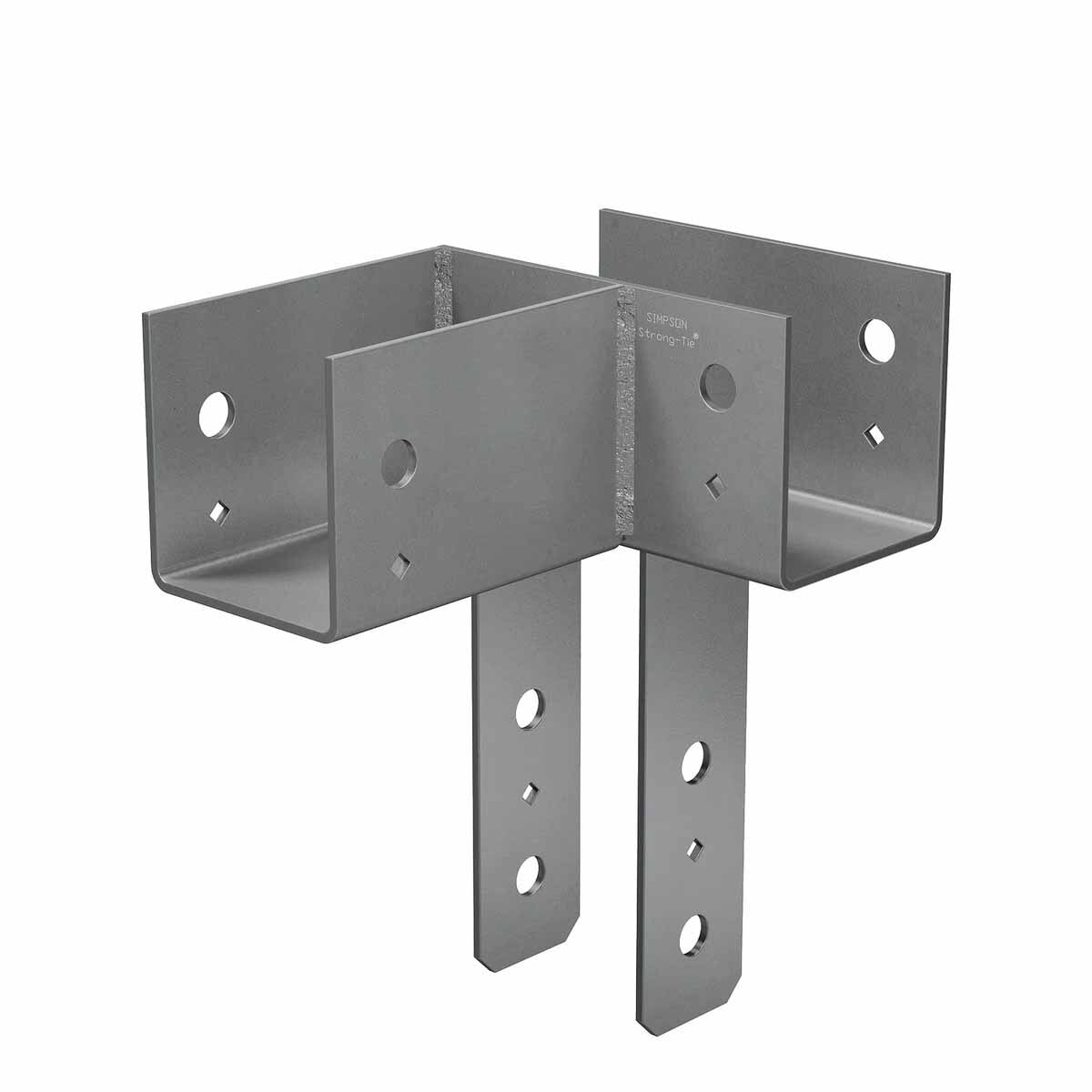

The Simpson ECCLL666 End Column Cap Left Direction enhances the strength and stability of your construction projects. Designed for 6x beams and posts, it provides a strong end-of-beam connection with additional surface area for load distribution.
Simpson Strong-Tie ECCLL666 Includes
- (1) ECCLL666 End Column Cap
Simpson Strong-Tie ECCLL666 Features
- Certified welds for strength and loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Made from durable heavy-gauge steel
- Finished with Simpson Strong-Tie gray paint
Simpson Strong-Tie ECCLL666 Applications

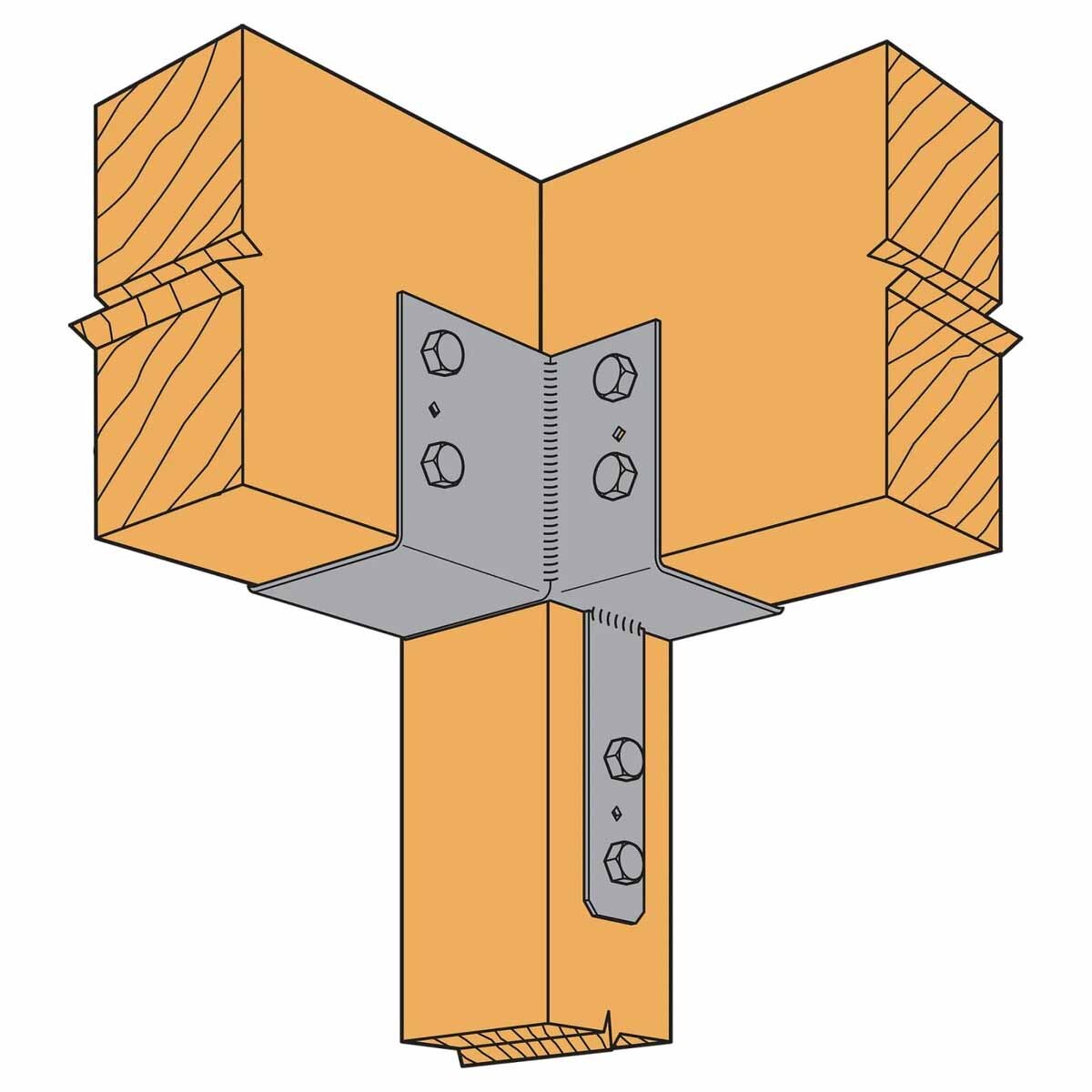

- Provides strong end-of-beam connection for column-to-beams forming an 'L'
- Enhances load distribution and stability in construction projects
Simpson Strong-Tie ECCLL666 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure bolt holes are within specified size range

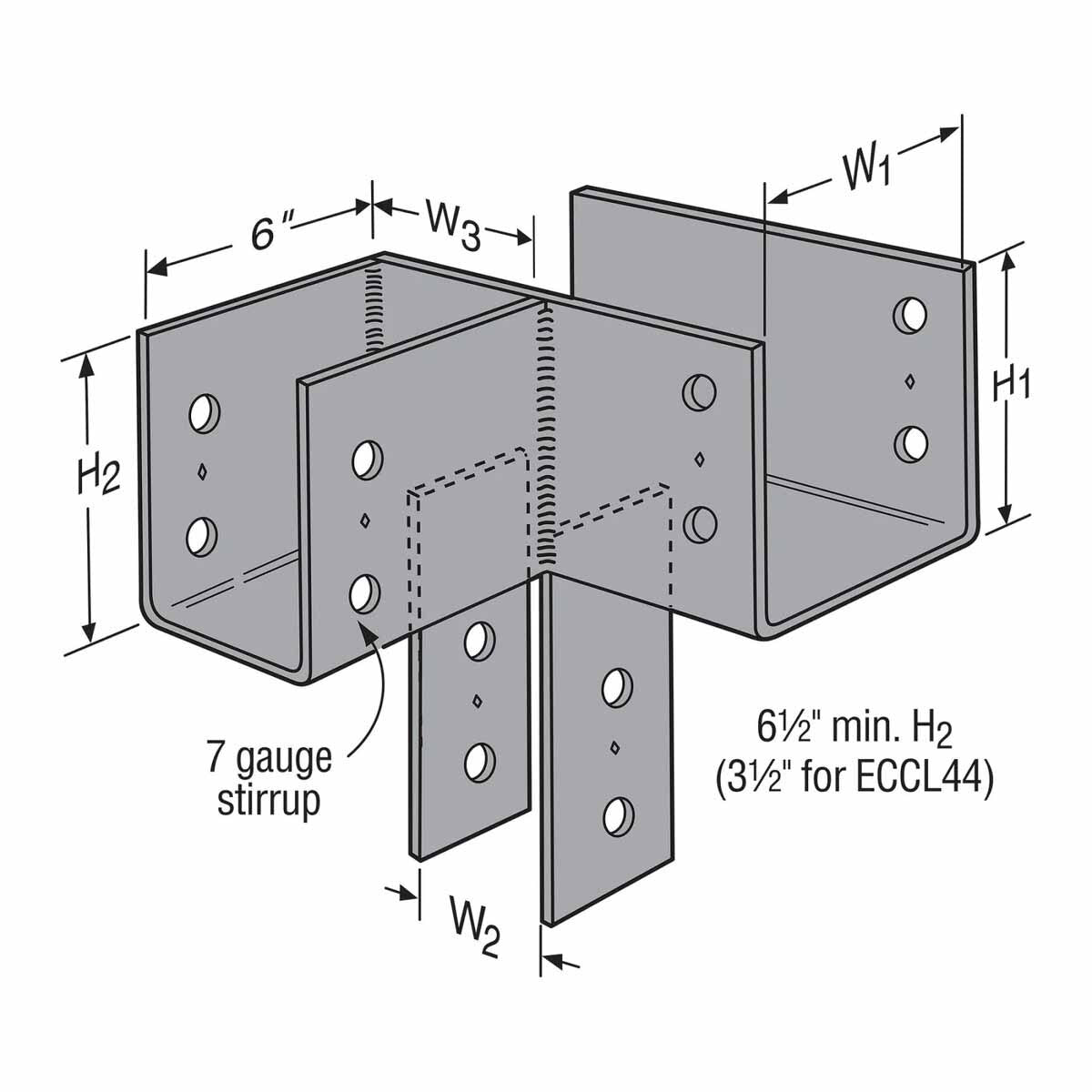

Simpson Strong-Tie ECCLL666 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Beam size | 6x |
| Post size | 6x |
| Thickness | 7 Gauge |
NOTE: This item is made to order and is non-returnable.
