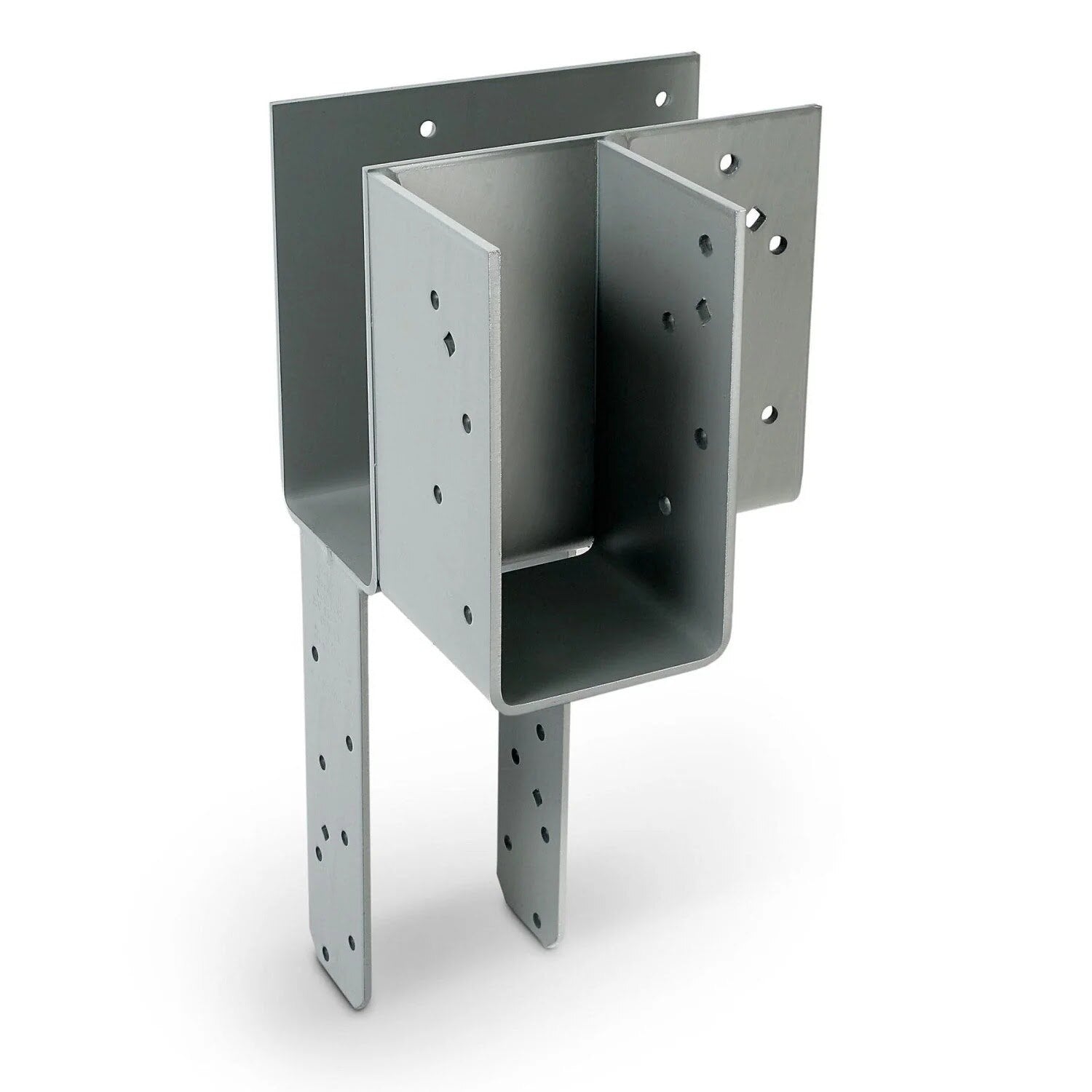

Simpson Strong-Tie ECCLLQ666SDSHDG Description
The Simpson ECCLLQ666SDSHDG End Column Cap enhances the strength and stability of construction projects, providing durable column-to-beam connections for end-of-beam applications.
Simpson Strong-Tie ECCLLQ666SDSHDG Includes
- (1) End Column Cap
- (1) Set of 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie ECCLLQ666SDSHDG Features

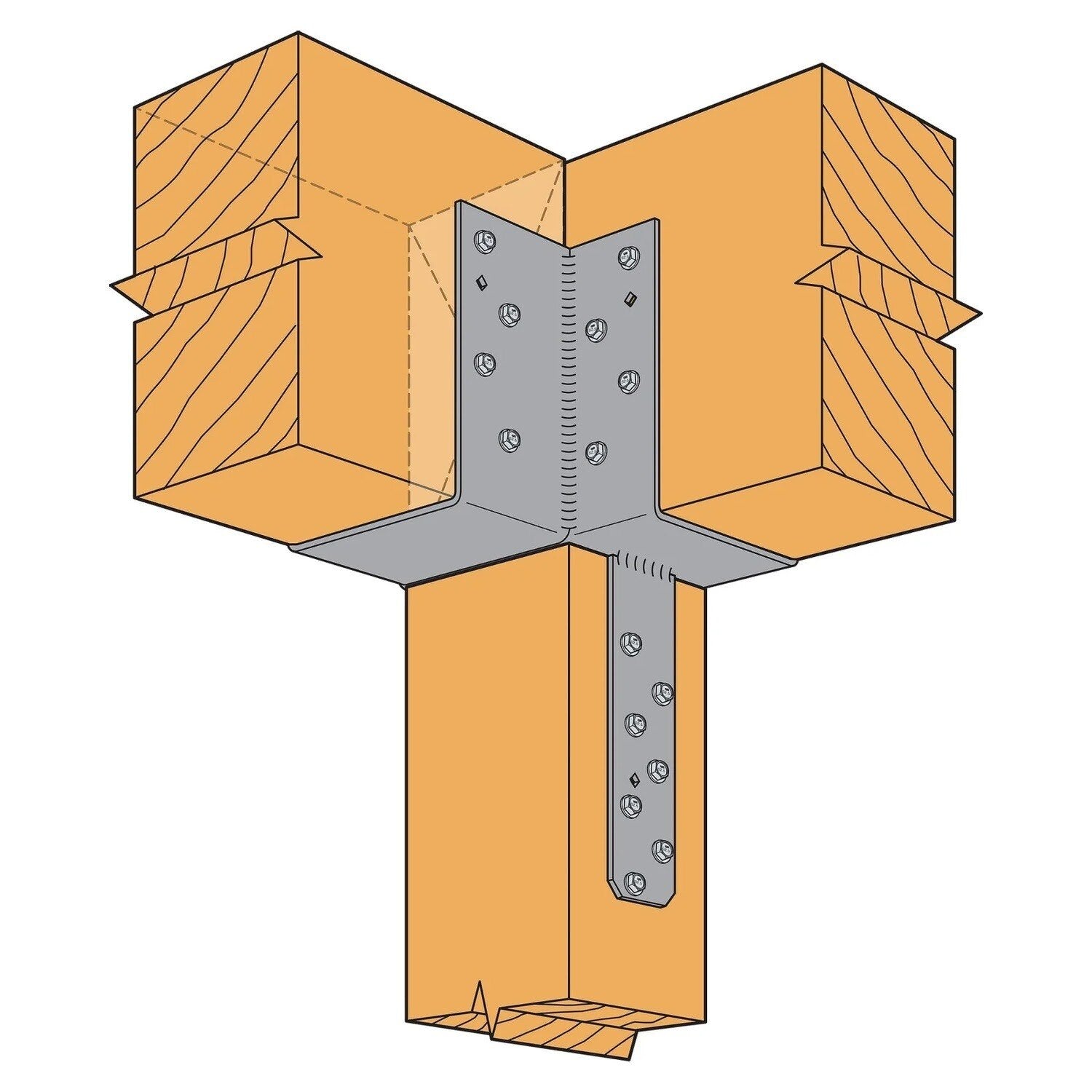

- Provides strong end-of-beam connection for column-to-beams forming an "L"
- Extended column seat area for additional load distribution
- Designed for 6x beams and 6x posts/columns
- Made from heavy-gauge galvanized steel
- Hot Dip Galvanized finish for durability
- Certified welds for increased strength and loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCLLQ666SDSHDG Applications
- Column-to-beam connections in end-of-beam applications
- Construction projects requiring enhanced load distribution
- Use with 6x posts or columns and 6x beams
Simpson Strong-Tie ECCLLQ666SDSHDG Installation Overview
- Align the column cap with the column and beams
- Secure temporarily using diamond holes
- Fasten using provided Strong-Drive SDS screws
- Ensure bolt spacing complies with NDS code requirements

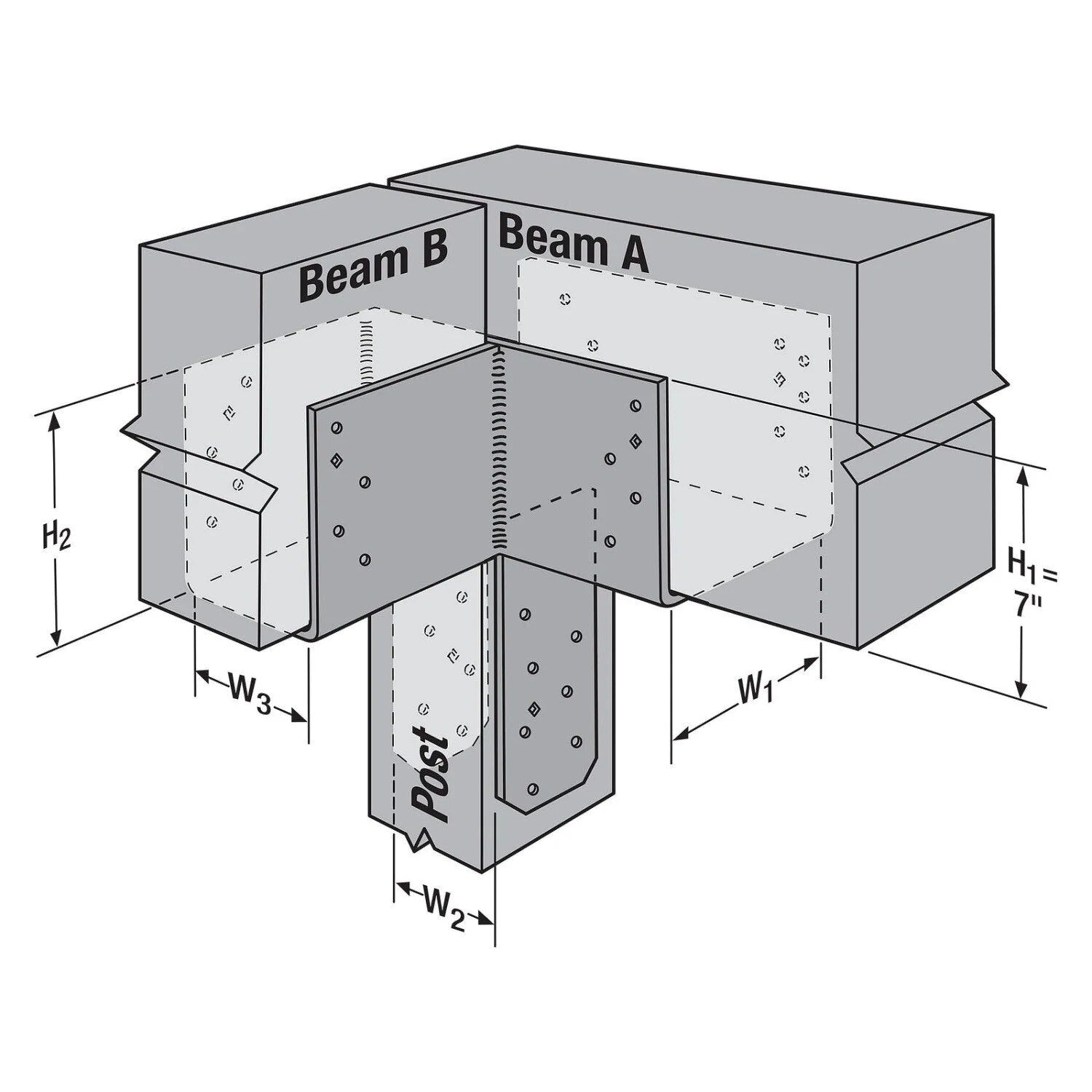

Simpson Strong-Tie ECCLLQ666SDSHDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Galvanized Steel |
| Beam size | 6x |
| Fasteners required | 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws, provided |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 6x |
| Thickness | 7 Gauge |
NOTE: This item is made to order and is non-returnable.
