Simpson Anchors | SKU:
ECCLR666
Simpson Strong-Tie ECCLR666 L-Shape End Column Cap for 6x Beams and 6x Post Right - Heavy-Duty Steel Connector
Free Shipping
$302.28
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECCLR666 Description

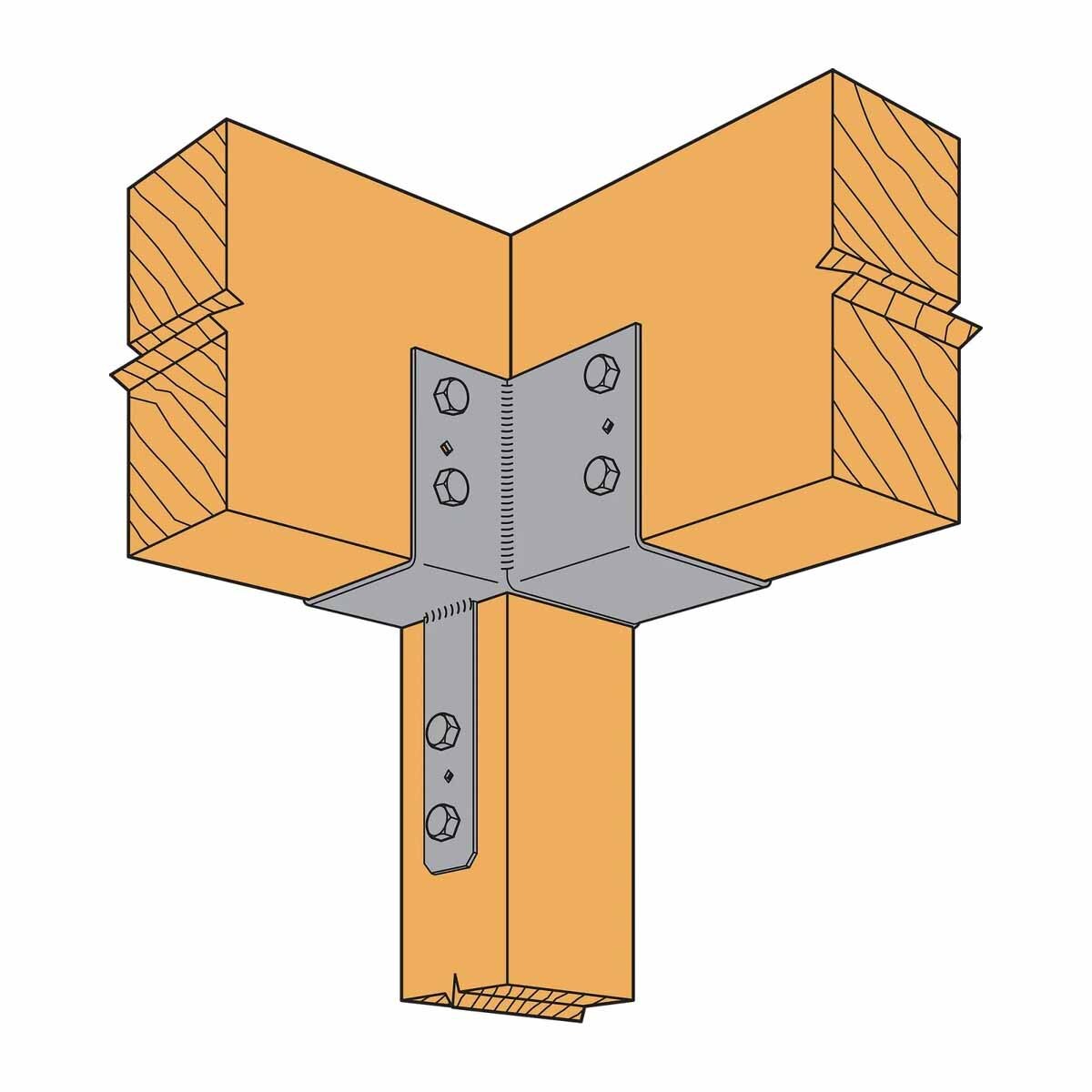

The Simpson ECCLR666 6x6x6 End Column Cap Right Direction enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in end-of-beam applications where two beams form an "L" on top of a column.
Simpson Strong-Tie ECCLR666 Includes
- (1) ECCLR666 End Column Cap
Simpson Strong-Tie ECCLR666 Features
- Certified welds for strength and loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Made from heavy-gauge steel
- Finished with gray paint for durability
Simpson Strong-Tie ECCLR666 Applications
- Provides strong end-of-beam connection for column-to-beams that form an "L"
- Enhances support for the connection with extended column seat area
Simpson Strong-Tie ECCLR666 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure bolt holes are within the specified size range
Simpson Strong-Tie ECCLR666 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Beam size | 6x |
| Post size | 6x |
| Thickness | 7 Gauge |
| Weight | 19.3 lb |
