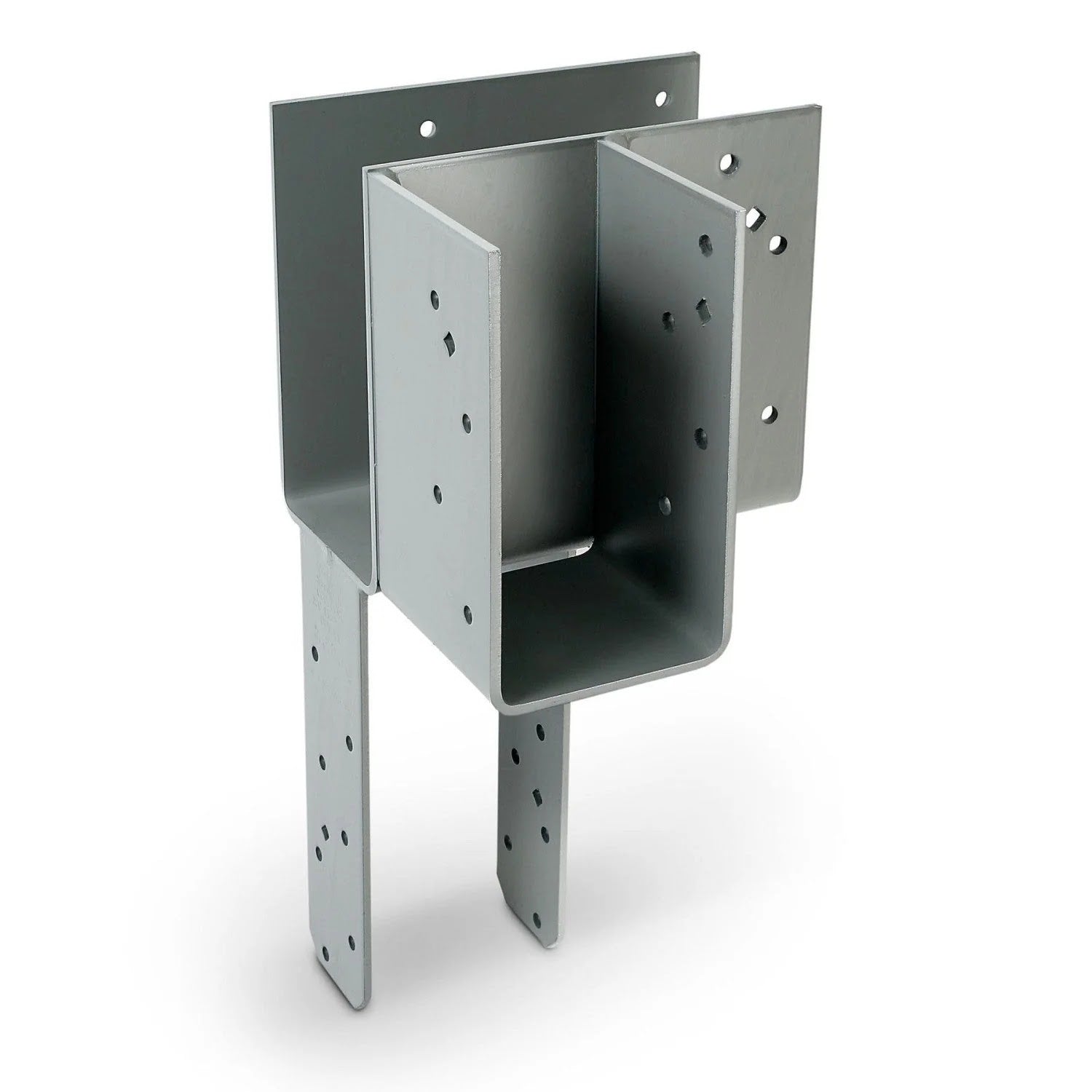

Simpson Strong-Tie ECCLRQ3.25-4SDS Description
The Simpson ECCLRQ3.25-4SDS End Column Cap L-Shaped Right enhances the strength and stability of your construction projects, providing a durable column-to-beam connection.
Simpson Strong-Tie ECCLRQ3.25-4SDS Includes
- (1) End Column Cap L-Shaped Right
- (1) Set of SDS Connector Screws
Simpson Strong-Tie ECCLRQ3.25-4SDS Features

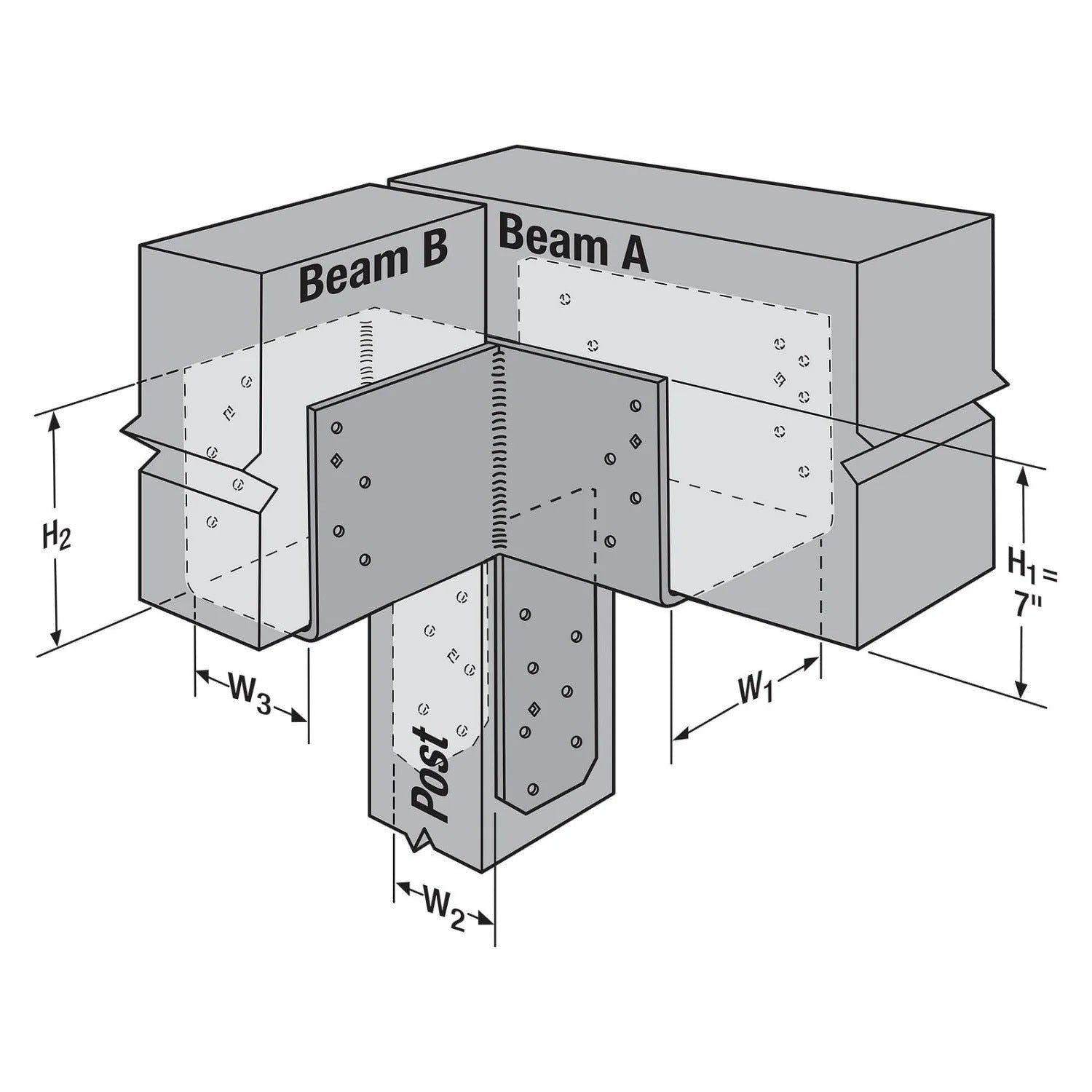

- Provides strong end-of-beam connection for column-to-beams that form an "L"
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from durable heavy-gauge steel
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCLRQ3.25-4SDS Applications
- Column-to-beam connections in end-of-beam applications
- Construction projects requiring enhanced load distribution and stability
- Use with 4x posts or columns and 3-1/4x beams
Simpson Strong-Tie ECCLRQ3.25-4SDS Installation Overview
- Align the column cap with the beams and column as per the design
- Secure the cap using the included SDS connector screws
- Ensure proper alignment and fastening to meet structural requirements
Simpson Strong-Tie ECCLRQ3.25-4SDS Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 3-1/4x |
| Fasteners required | Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 4x |
| Thickness | 7 Gauge |
Toolup Part # :
819728
