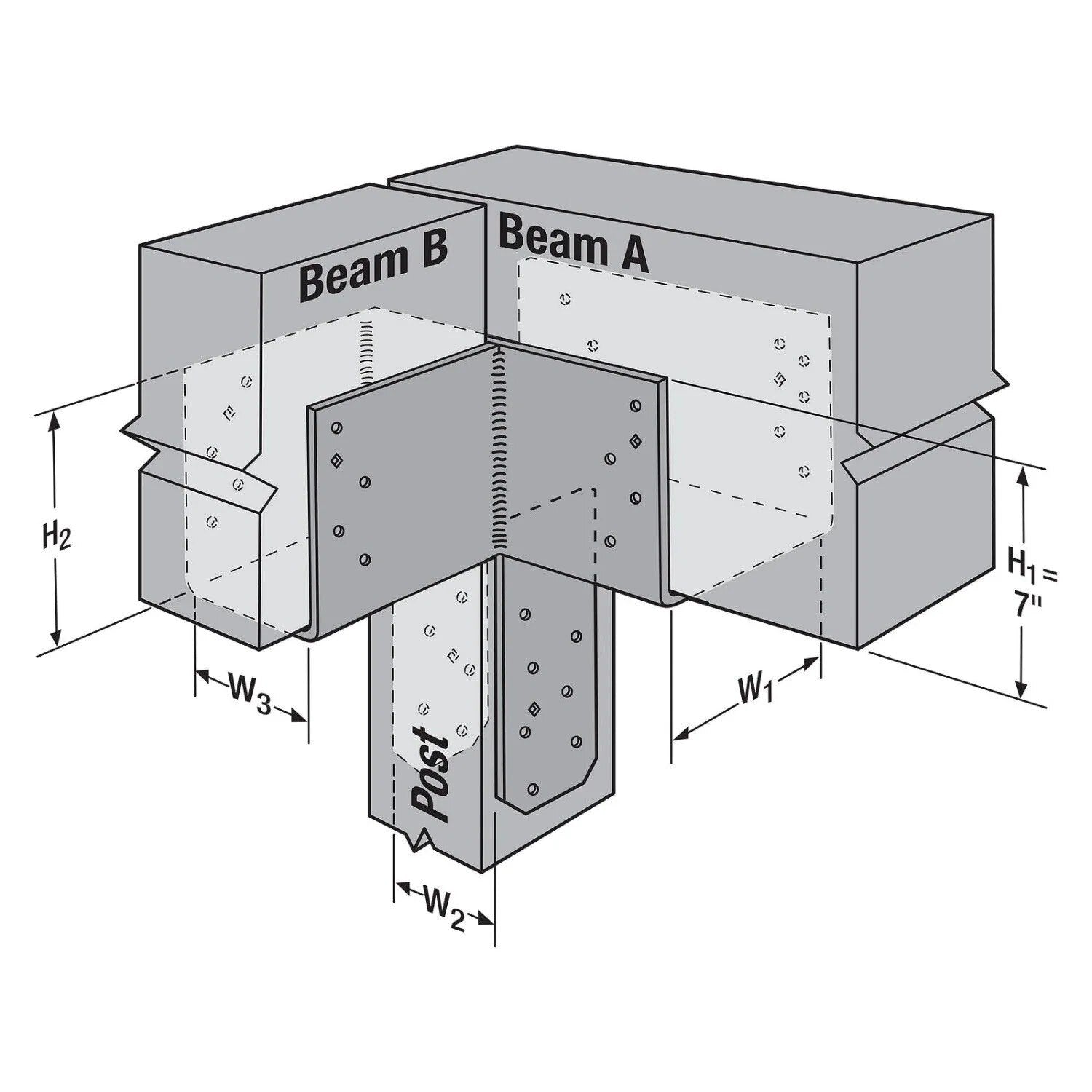

Simpson Strong-Tie ECCLRQ444HDG Description
The Simpson ECCLRQ444HDG L-Shape End Column Cap is designed for strong and stable column-to-beam connections in end-of-beam applications. Made from heavy-gauge steel with a hot-dip galvanized finish, it includes SDS screws for quick installation.
Simpson Strong-Tie ECCLRQ444HDG Includes
- (1) L-Shape End Column Cap
- (1) Set of SDS Screws
Simpson Strong-Tie ECCLRQ444HDG Features
- Provides strong end-of-beam connection for column-to-beams forming an 'L'
- Extended column seat area for additional load distribution
- Made from heavy-gauge steel for durability
- Hot-dip galvanized finish for corrosion resistance
- Includes SDS screws for quick and secure installation
- Certified welds for enhanced strength and loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCLRQ444HDG Applications
- Column-to-beam connections in end-of-beam applications
- Construction projects requiring strong and stable connections
- Use with 4x posts or columns and 4x beams
Simpson Strong-Tie ECCLRQ444HDG Installation Overview
- Align the column cap with the column and beams.
- Secure the cap using the included SDS screws.
- Ensure proper alignment and fastening for stability.
Simpson Strong-Tie ECCLRQ444HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Galvanized Steel |
| Beam size | 4x |
| Fasteners required | Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 4x |
| Thickness | 7 Gauge |
Toolup Part # :
819268
