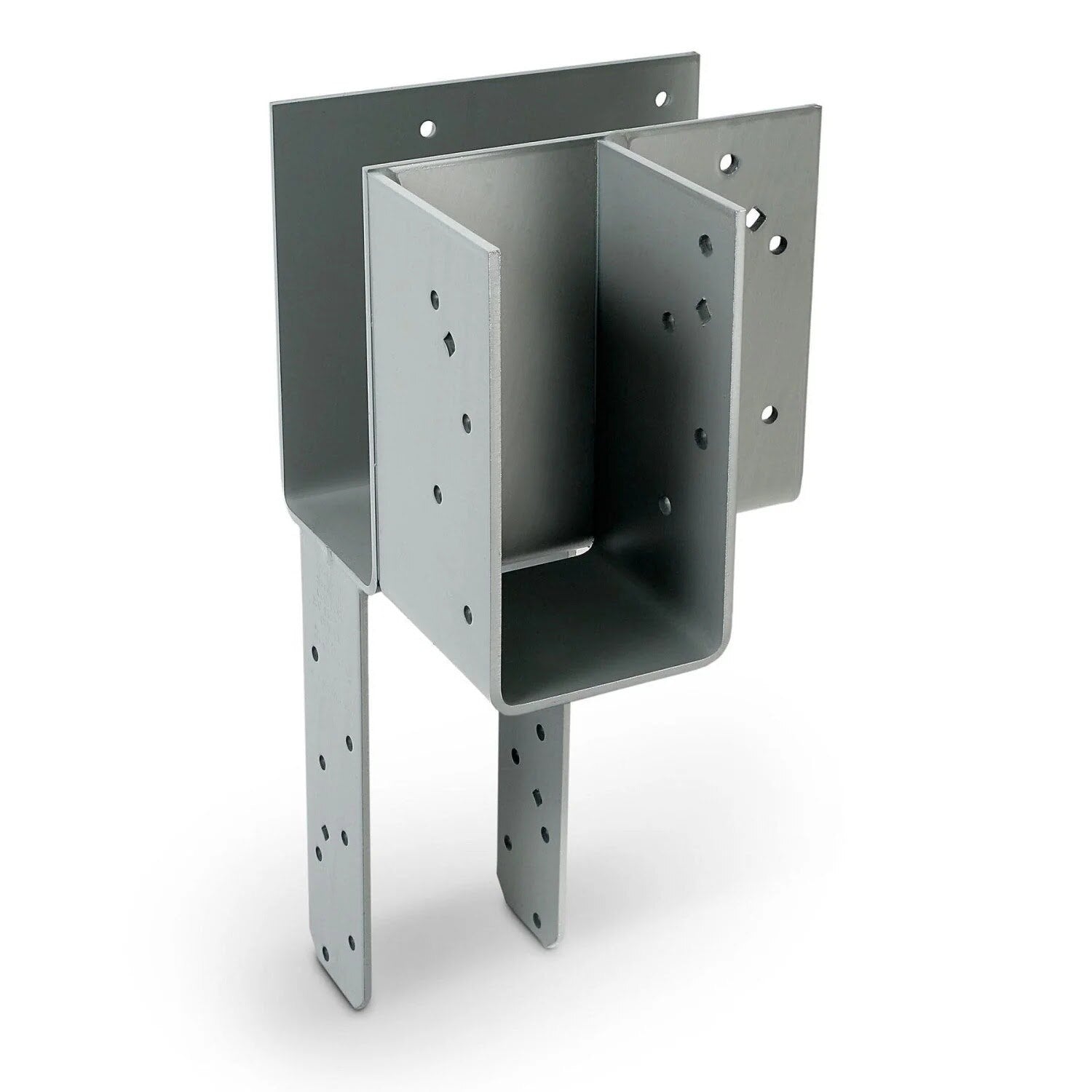

Simpson Strong-Tie ECCLRQ464HDG Description
The Simpson ECCLRQ464HDG L-Shape End Column Cap is designed for strong and stable column-to-beam connections, ideal for end-of-beam applications.
Simpson Strong-Tie ECCLRQ464HDG Includes
- (1) ECCLRQ464HDG Column Cap
- (15) SDS Heavy-Duty Connector Screws
Simpson Strong-Tie ECCLRQ464HDG Features

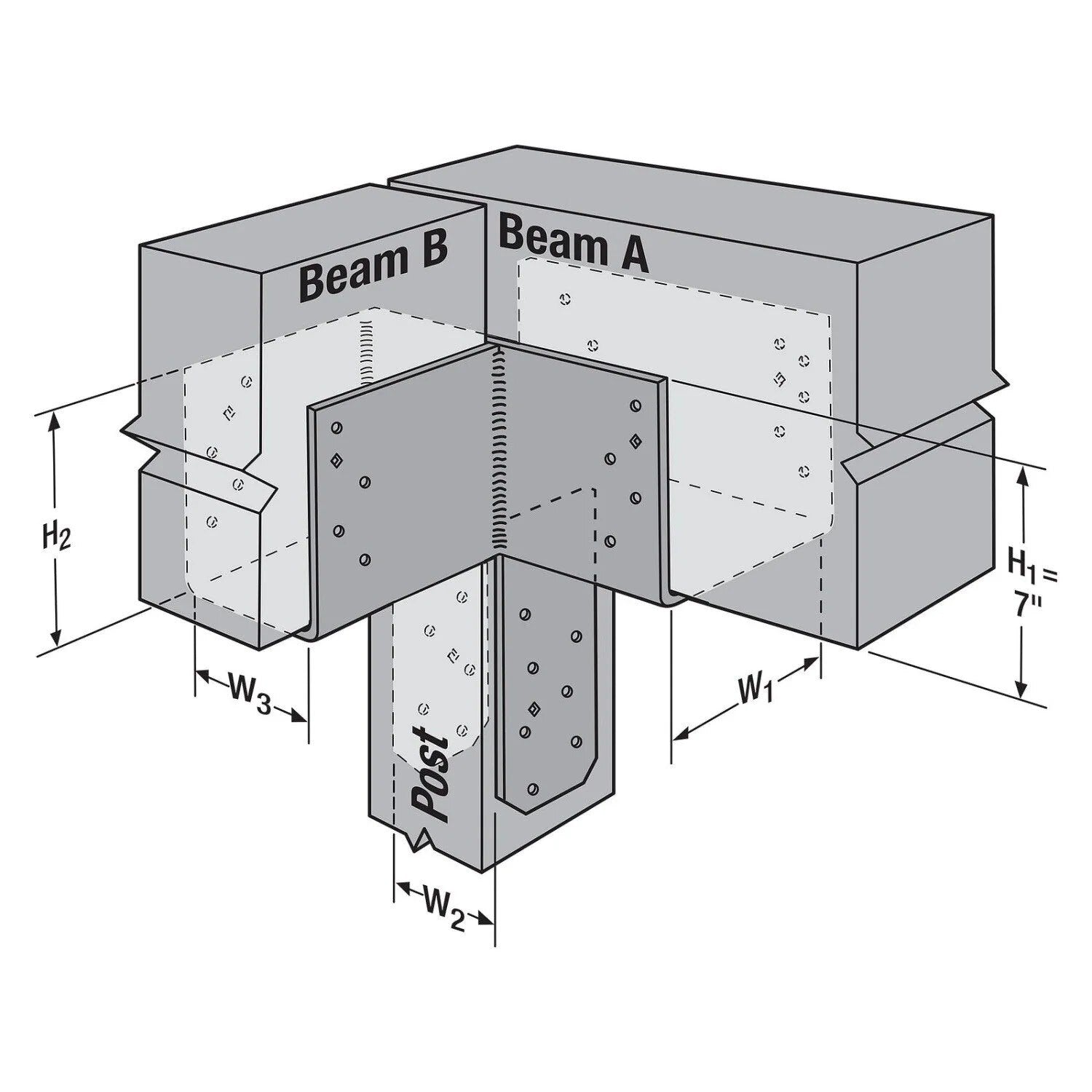

- Provides strong end-of-beam connection for column-to-beams forming an 'L'
- Extended column seat offers additional surface area for load distribution
- Made from durable heavy-gauge steel
- Hot Dip Galvanized finish for corrosion resistance
- Certified welds ensure strength and loading
- Includes SDS connector screws for quick installation
- Diamond holes for temporary fastening during installation
Simpson Strong-Tie ECCLRQ464HDG Applications
- Column-to-beam connections in end-of-beam applications
- Construction projects requiring enhanced load distribution
- Wood-to-wood fastening
Simpson Strong-Tie ECCLRQ464HDG Installation Overview
- Install SDS Heavy-Duty Connector screws in all round holes
- Ensure no additional welding is performed
- Align the cap properly with the beams and column
Simpson Strong-Tie ECCLRQ464HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Galvanized Steel |
| Beam size | 4x, 6x |
| Post size | 4x |
| Thickness | 7 Gauge |
| Fasteners required | Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
