Simpson Anchors | SKU:
ECCLRQMD3.62G-KT

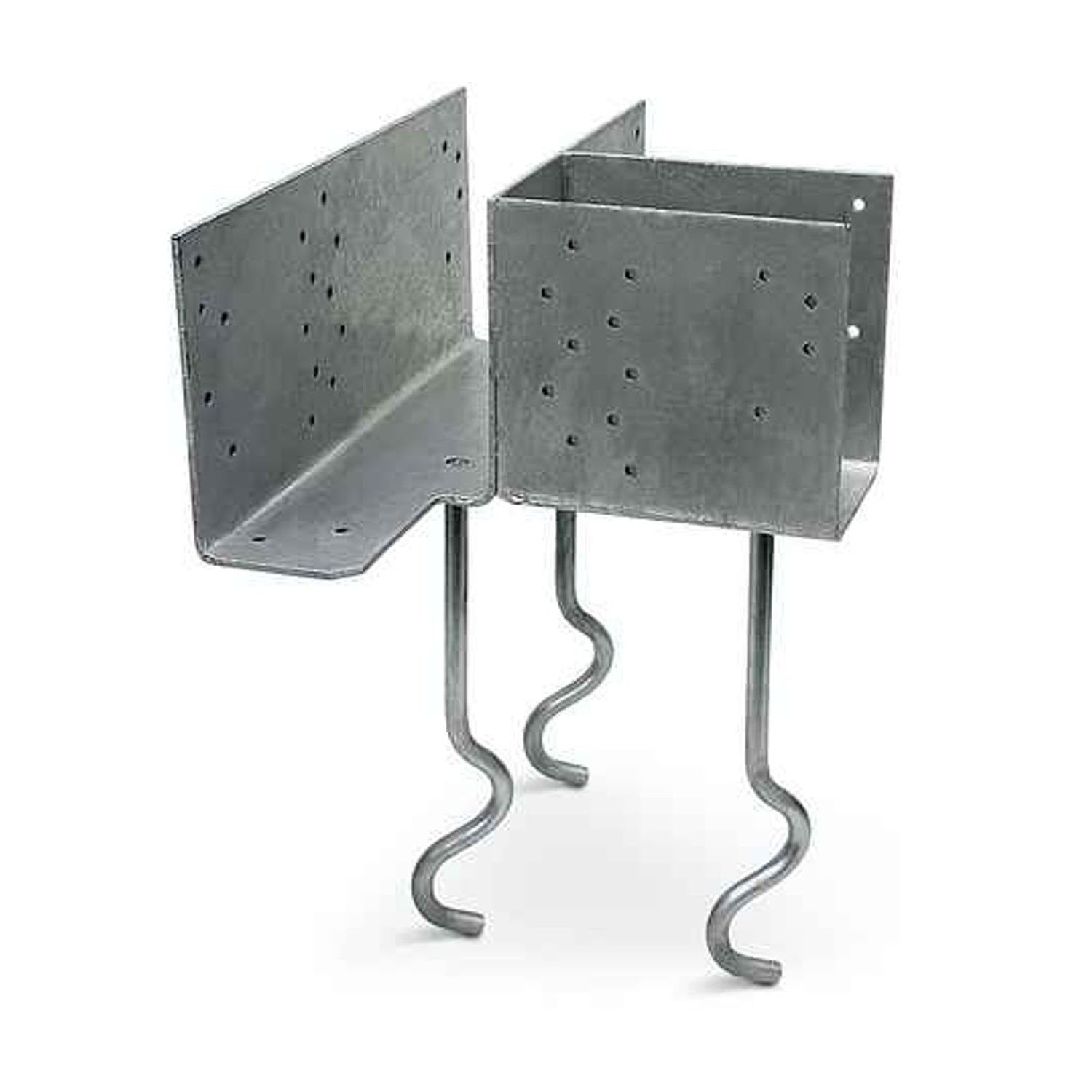

Simpson Strong-Tie ECCLRQMD3.62G-KT (3-5/8 in) Hot-Dip Galvanized L-Shape Embedded Column Cap
Free Shipping
$706.38
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECCLRQMD3.62G-KT Description
The Simpson ECCLRQMD3.62G-KT is a hot-dip galvanized L-shape embedded column cap designed for 3-5/8 in beams, providing high uplift and lateral resistance for concrete or CMU piers.

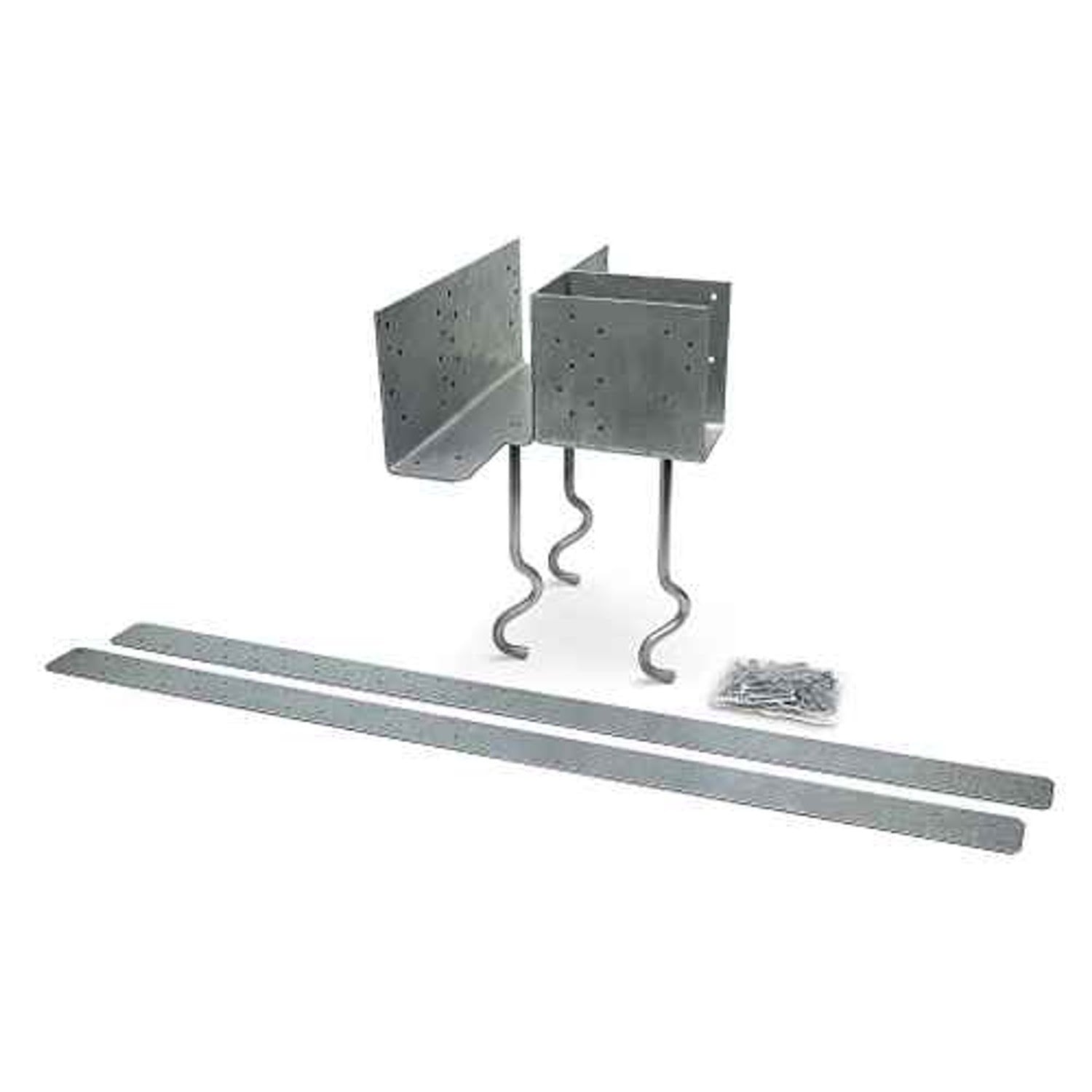

Simpson Strong-Tie ECCLRQMD3.62G-KT Includes
- (1) ECCLRQMD3.62G-KT Column Cap
- (32) 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie ECCLRQMD3.62G-KT Features
- Hot-dip galvanized finish for corrosion resistance
- Designed for 3-5/8 in beams
- Provides high uplift and lateral resistance
- Certified welds for strength and loading
- Includes Strong-Drive SDS screws for secure installation
Simpson Strong-Tie ECCLRQMD3.62G-KT Applications
- Column-to-beam connections in end-of-beam applications
- Suitable for GFCMU and concrete piers
Simpson Strong-Tie ECCLRQMD3.62G-KT Installation Overview
- Install 1/4" x 2-1/2" Strong-Drive SDS screws in all round holes
- Ensure a minimum of (4) #7 vertical rebar for the pier
- No additional welding is allowed

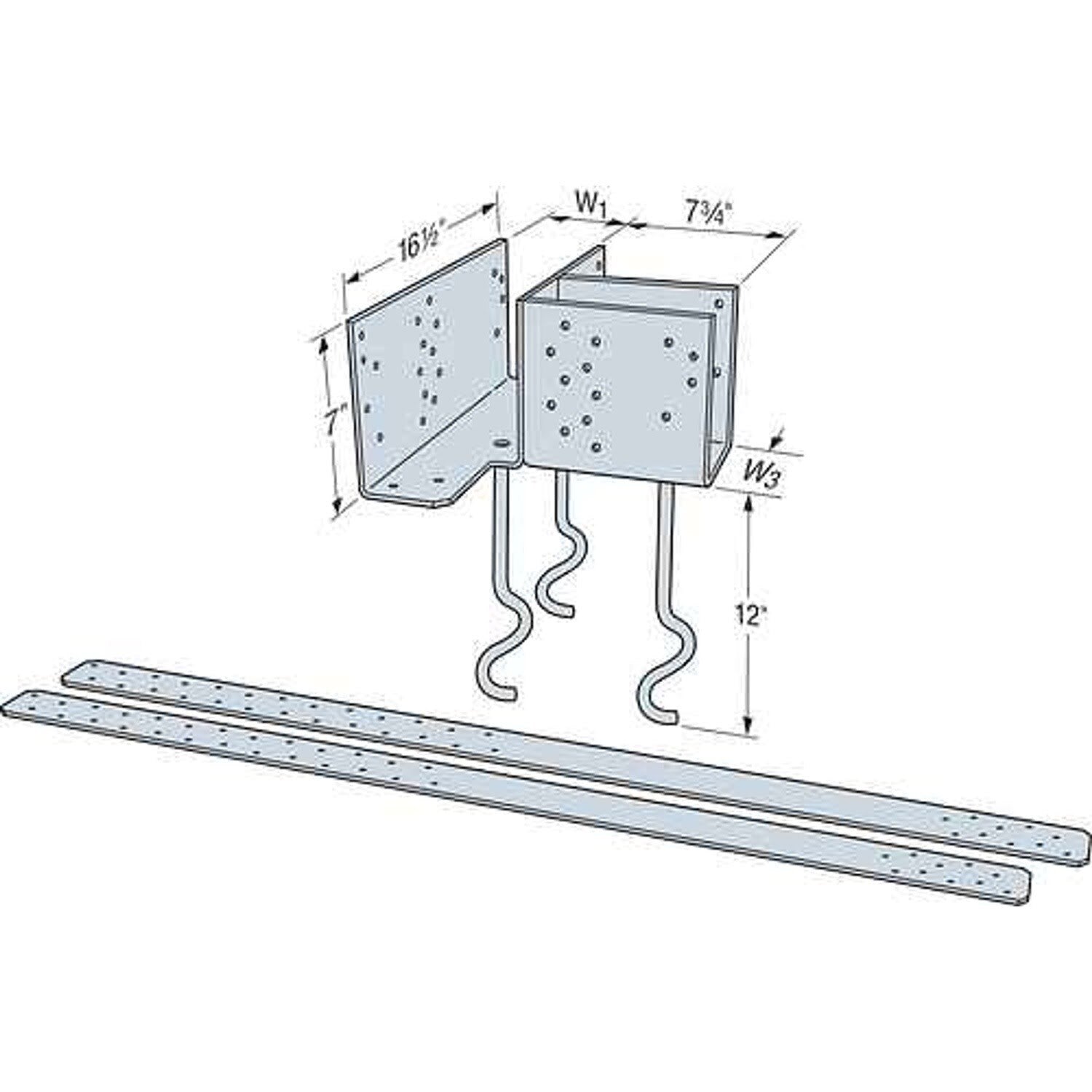

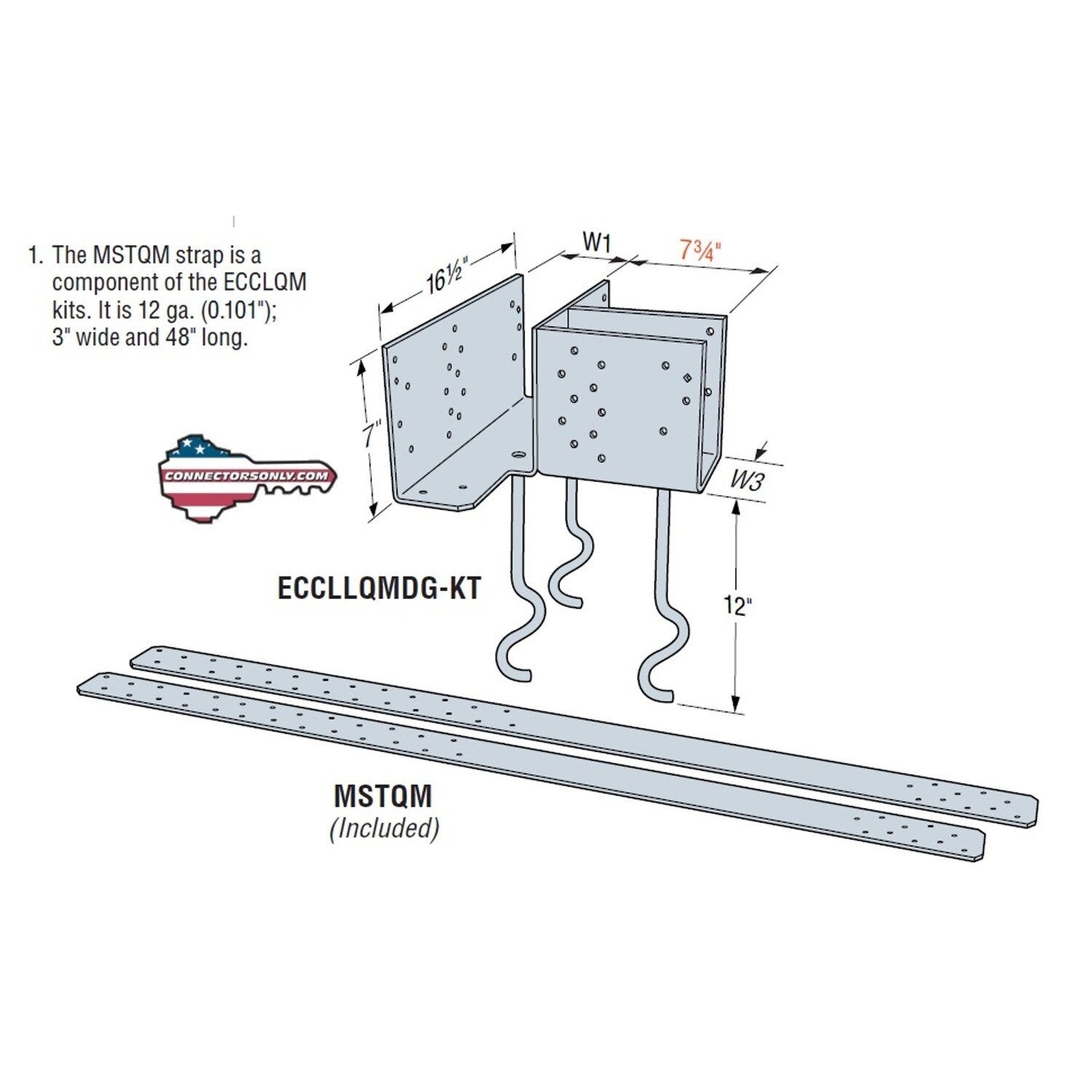

Simpson Strong-Tie ECCLRQMD3.62G-KT Specifications
| Material | Steel |
| Finish | Hot-Dip Galvanized |
| Beam size | 3-5/8x |
| Thickness | 7 Gauge |
| Width | 3-5/8" |
| Weight | 33.0 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
