Simpson Anchors | SKU:
ECCO4
Simpson Strong-Tie ECCO4 End Column Cap Only for 4x - Heavy-Duty Steel Connector
$43.82
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECCO4 Description

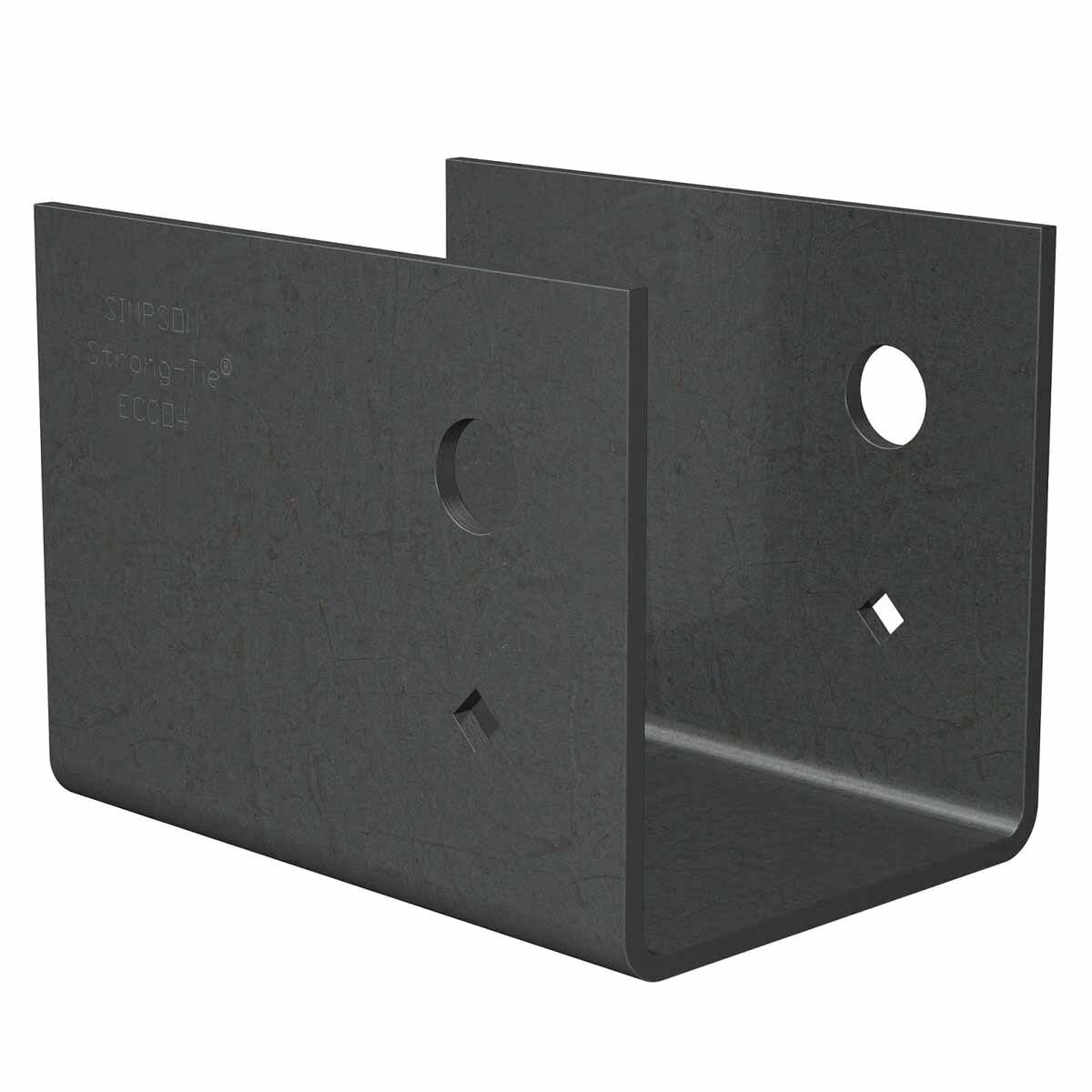

The Simpson ECCO4 End Column Cap is a heavy-duty steel connector designed for column-to-beam applications, providing enhanced strength and stability.
Simpson Strong-Tie ECCO4 Includes
- (1) Strong-Tie End Column Cap ECCO4
Simpson Strong-Tie ECCO4 Features
- Provides strong column-to-beam connection
- Strapless design for field welding to steel columns
- Made from durable 7-gauge steel
- Extended surface area for better load distribution
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
Simpson Strong-Tie ECCO4 Applications
- Column-to-beam connections in wood construction
- Field welding to steel columns
Simpson Strong-Tie ECCO4 Installation Overview
- Use all specified fasteners as per guidelines
- Drill bolt holes from one side through the beam to maintain tolerances
- Contact engineered wood manufacturers for non-standard connections

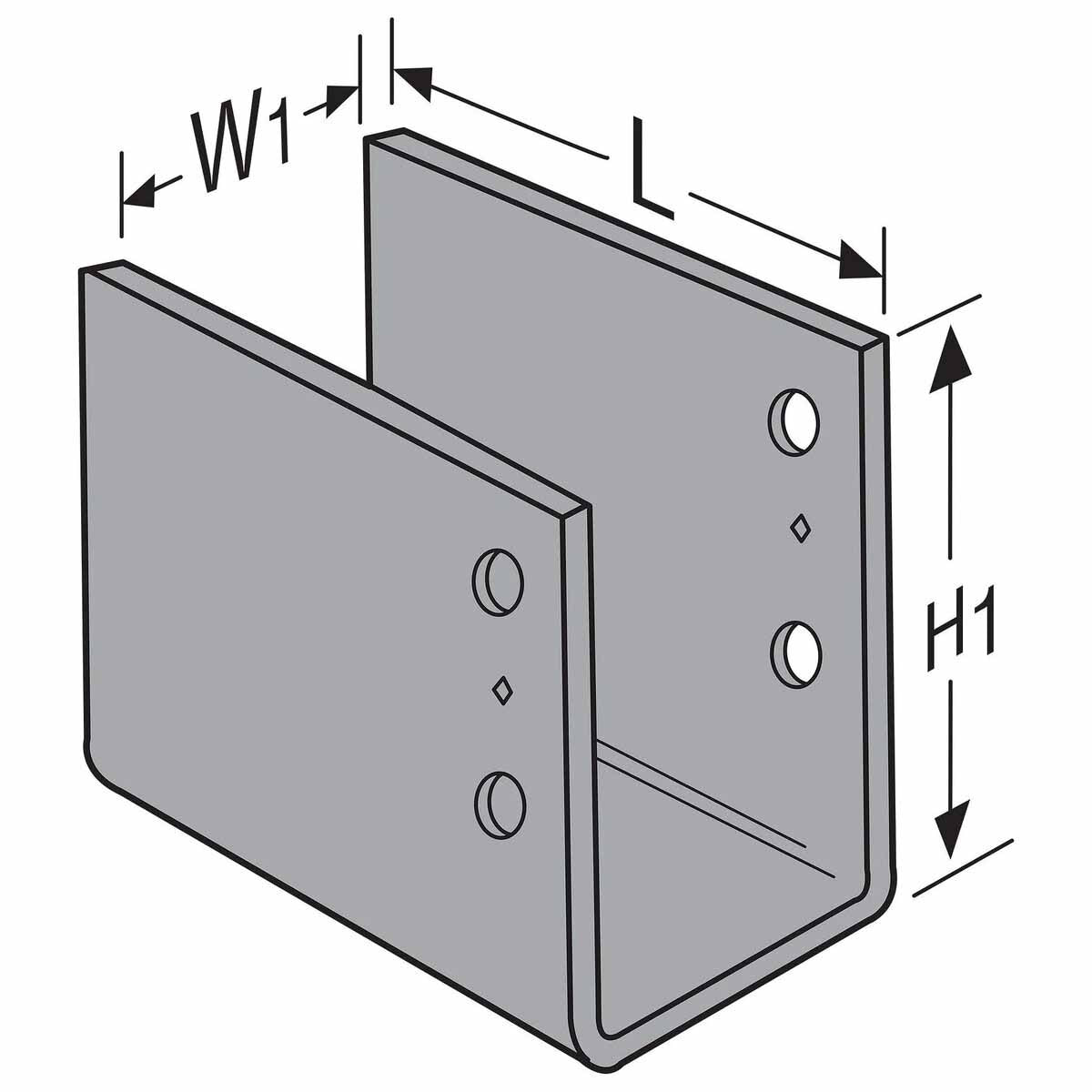

Simpson Strong-Tie ECCO4 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Thickness | 7 Gauge |
| Beam size | 4x |
| Width | 4" |
| Length | 5-1/2" |
| Weight | 3.2 lb |
