Simpson Anchors | SKU:
ECCO5 1/4
Simpson Strong-Tie ECCO5 1/4 End Column Cap Heavy-Duty Steel for 5-1/4x Beam Connections
$110.92
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECCO5 1/4 Description

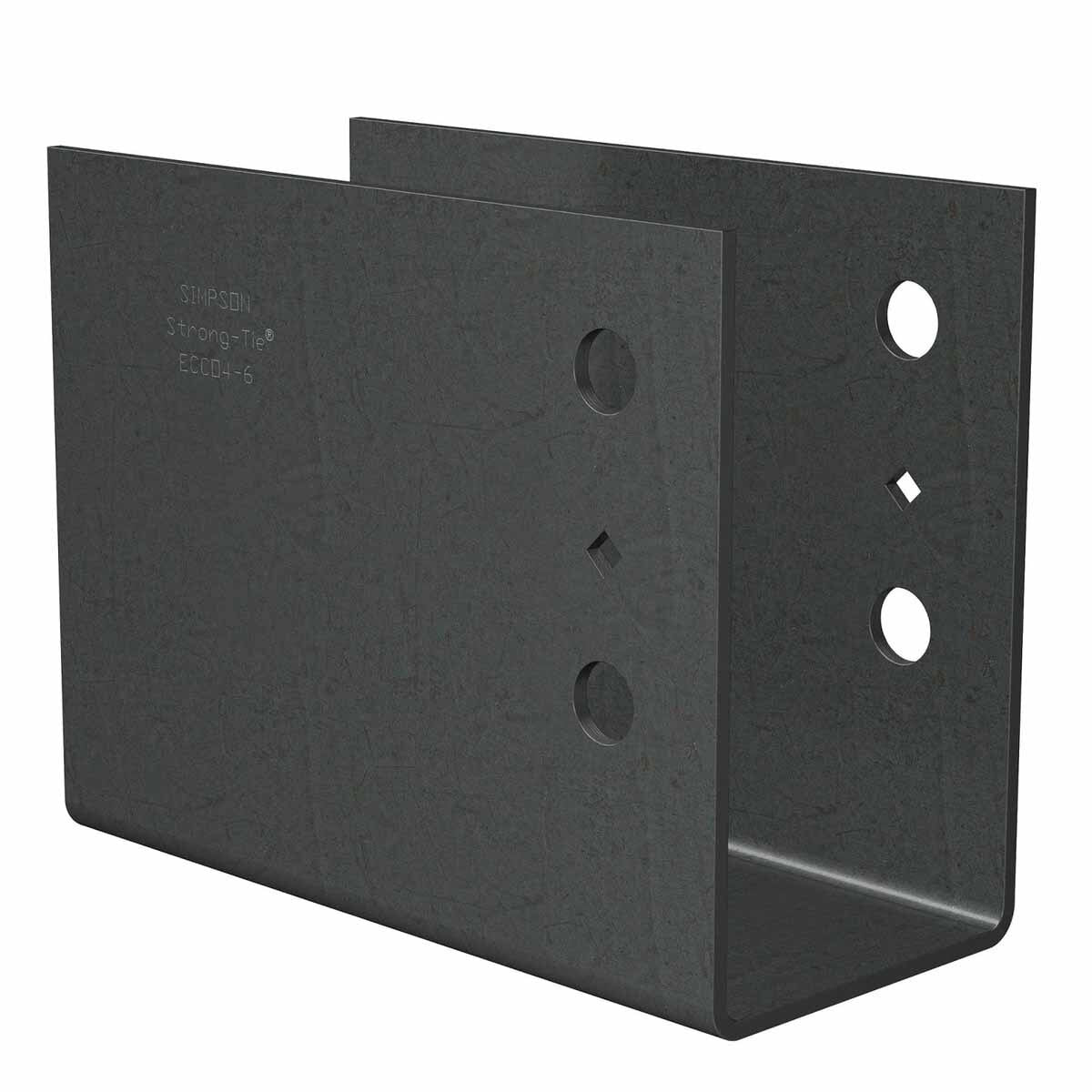

The Simpson ECCO5 1/4 End Column Cap is a heavy-duty steel connector designed for 5-1/4x beam connections, providing enhanced strength and stability in wood construction.
Simpson Strong-Tie ECCO5 1/4 Includes
- (1) End Column Cap
Simpson Strong-Tie ECCO5 1/4 Features
- Provides strong column-to-beam connection
- Strapless design for field welding to steel columns
- Made from durable heavy-gauge steel
- Extended surface area for additional load distribution
- Diamond holes for temporary fastening during installation
Simpson Strong-Tie ECCO5 1/4 Applications
- Wood construction projects requiring column-to-beam connections
- Field welding to steel columns
Simpson Strong-Tie ECCO5 1/4 Installation Overview
- Use all specified fasteners as per guidelines
- Drill bolt holes from one side through the beam to maintain tolerances
- Contact engineered wood manufacturers for non-standard connections

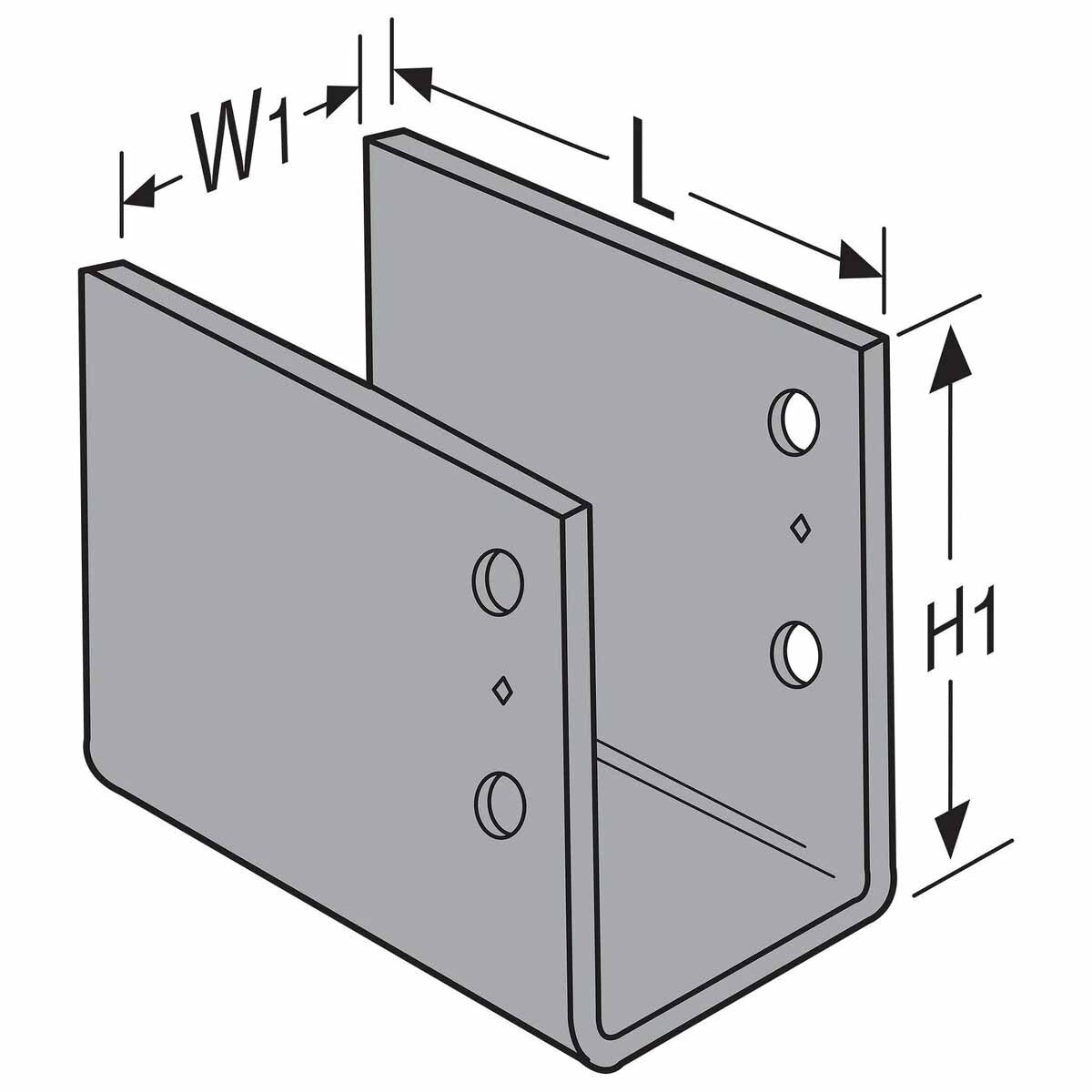

Simpson Strong-Tie ECCO5 1/4 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Thickness | 7 Gauge |
| Beam size | 5-1/4x |
| Width | 8" |
| Length | 9-1/2" |
