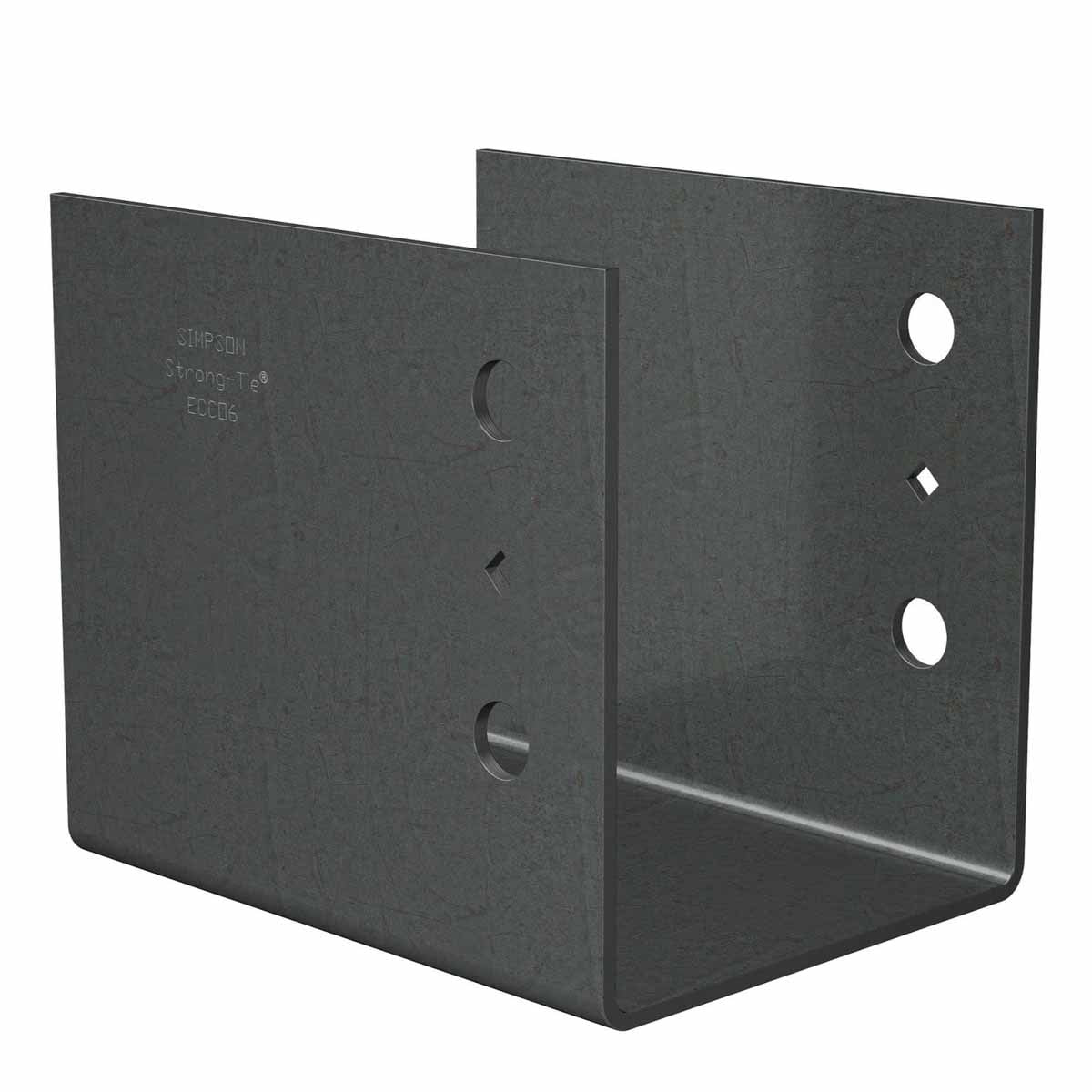

Simpson Strong-Tie ECCO6 Description
The Simpson ECCO6 End Column Cap is a heavy-duty steel connector designed for 6x beams, offering enhanced load distribution and stability for wood construction projects.
Simpson Strong-Tie ECCO6 Includes
- (1) Strong-Tie End Column Cap for 6x Beams
Simpson Strong-Tie ECCO6 Features
- Provides strong column-to-beam connection
- Strapless design for field welding to steel columns
- Made from durable 7-gauge steel
- Gray paint finish for added durability
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCO6 Applications
- Wood construction projects requiring column-to-beam connections
- Field welding applications for steel columns
Simpson Strong-Tie ECCO6 Installation Overview
- Use all specified fasteners as per guidelines
- Drill bolt holes from one side through the beam to maintain tolerances
- Contact engineered wood manufacturers for non-standard connections

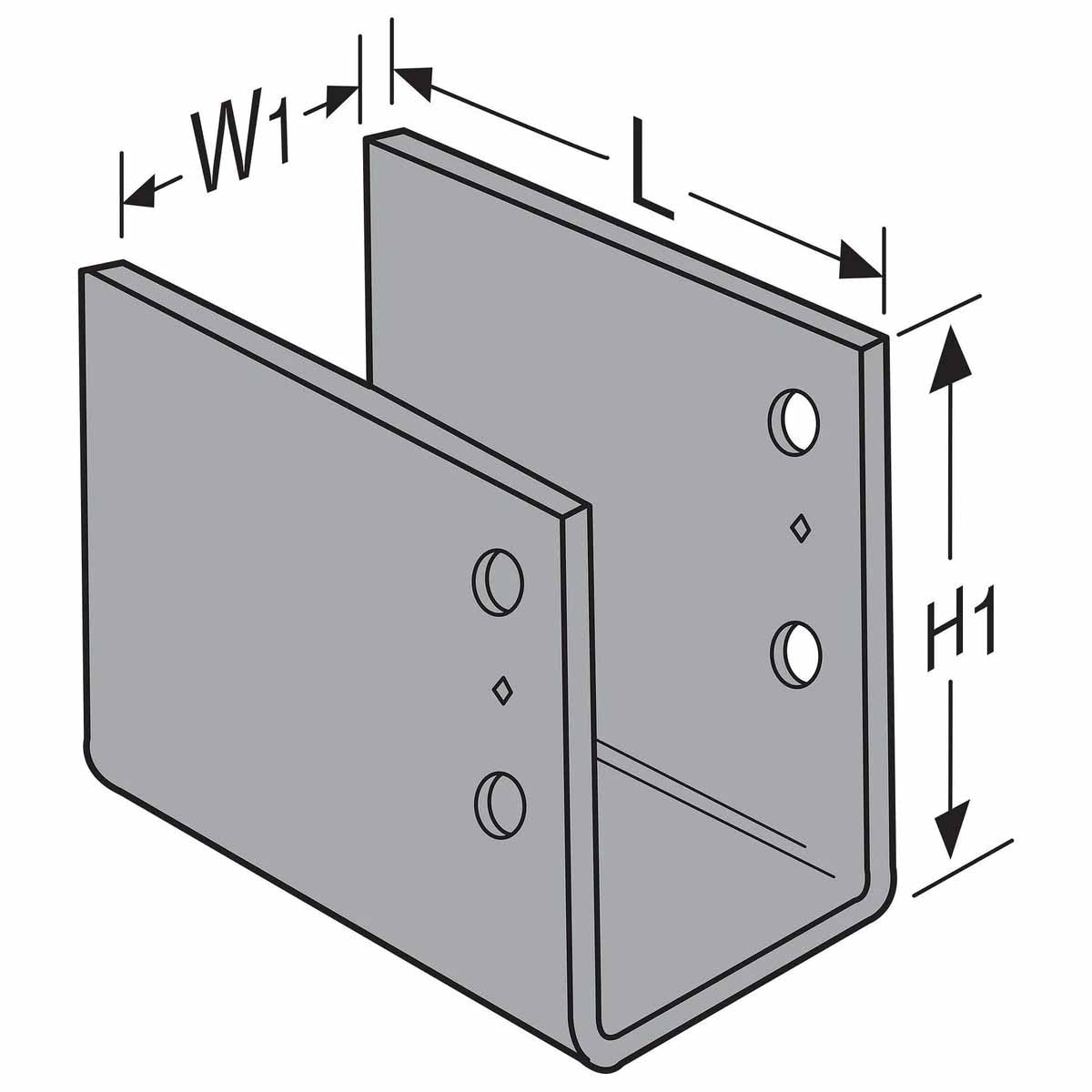

Simpson Strong-Tie ECCO6 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Thickness | 7 Gauge |
| Beam size | 6x |
| Width | 5-1/2" |
| Length | 7-1/2" |
Toolup Part # :
820206
