Simpson Anchors | SKU:
ECCO8
Simpson Strong-Tie ECCO8 Heavy-Duty End Column Cap for 8x Beams - Field Weldable Steel Connector
$151.26
Unit price
/
Unavailable
Description
Description

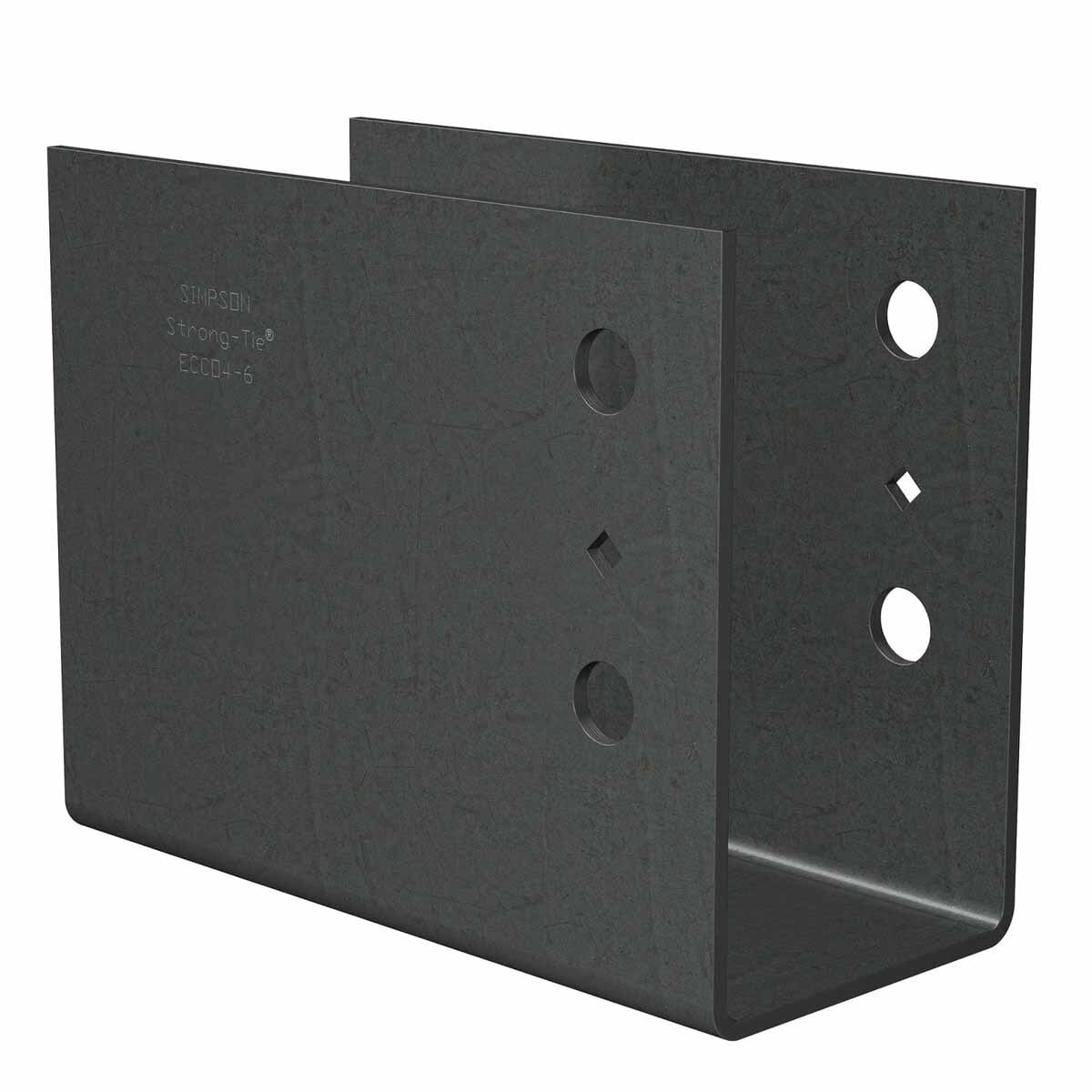

Simpson Strong-Tie ECCO8 Description
The Simpson ECCO8 End Column Cap enhances the strength and stability of construction projects, providing durable column-to-beam connections.
Simpson Strong-Tie ECCO8 Includes
- (1) Strong-Tie Heavy-Duty End Column Cap for 8x Beams
Simpson Strong-Tie ECCO8 Features
- Provides strong column-to-beam connection
- Strapless design for field welding to steel columns
- Made from heavy-gauge steel for durability
- Finished with Gray Paint coating
- Extended surface area for load distribution
- Diamond holes for temporary fastening
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCO8 Applications
- Wood-to-wood fastening for column-to-beam connections
- Field welding to steel columns
Simpson Strong-Tie ECCO8 Installation Overview
- Use all specified fasteners
- Drill bolt holes from one side through the beam
- Contact engineered wood manufacturers for non-standard connections

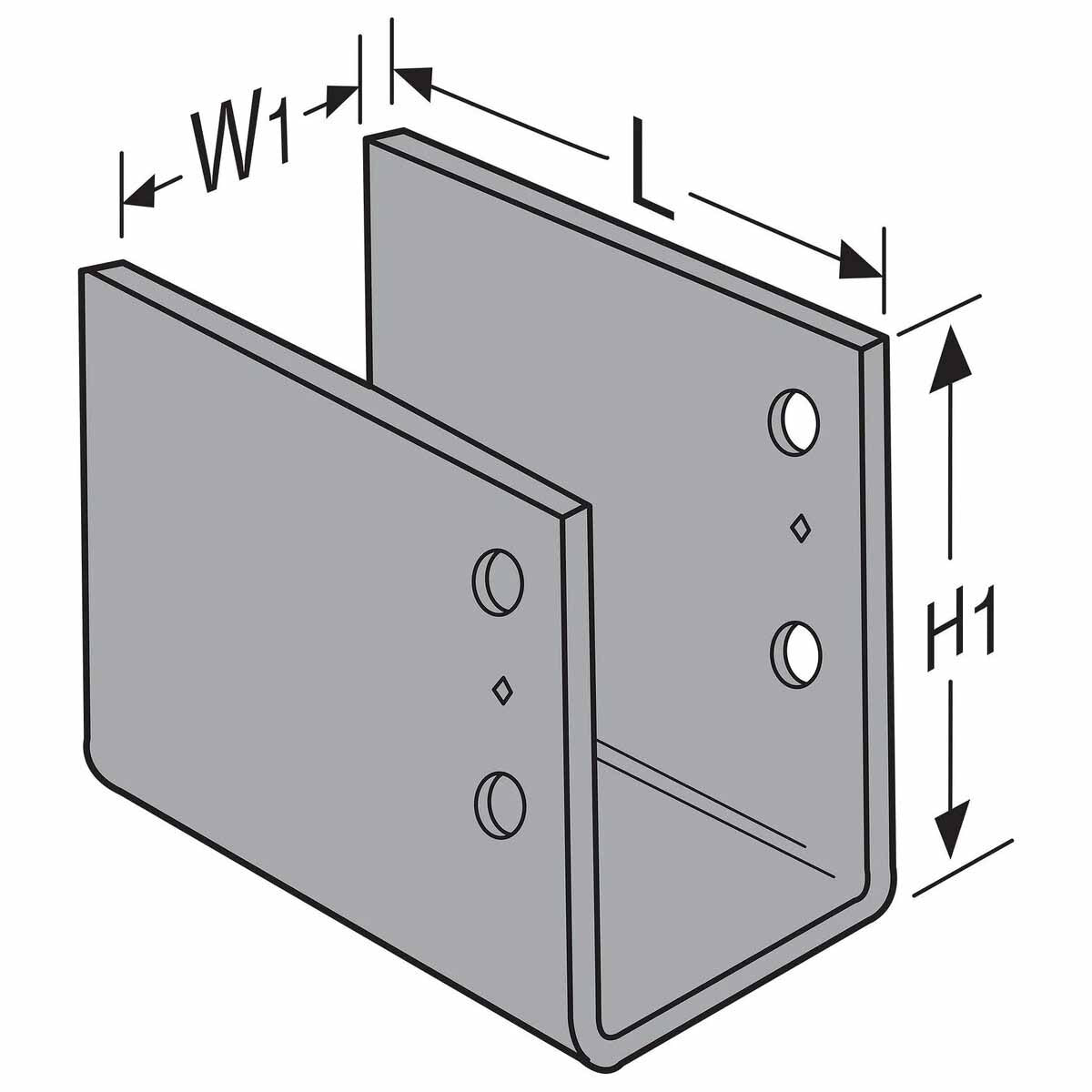

Simpson Strong-Tie ECCO8 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Beam size | 8x |
| Thickness | 3 Gauge |
| Width | 8" |
| Length | 10-1/2" |
NOTE: Ensure all specified fasteners are used and bolt holes are drilled from one side through the beam to maintain tolerances.
