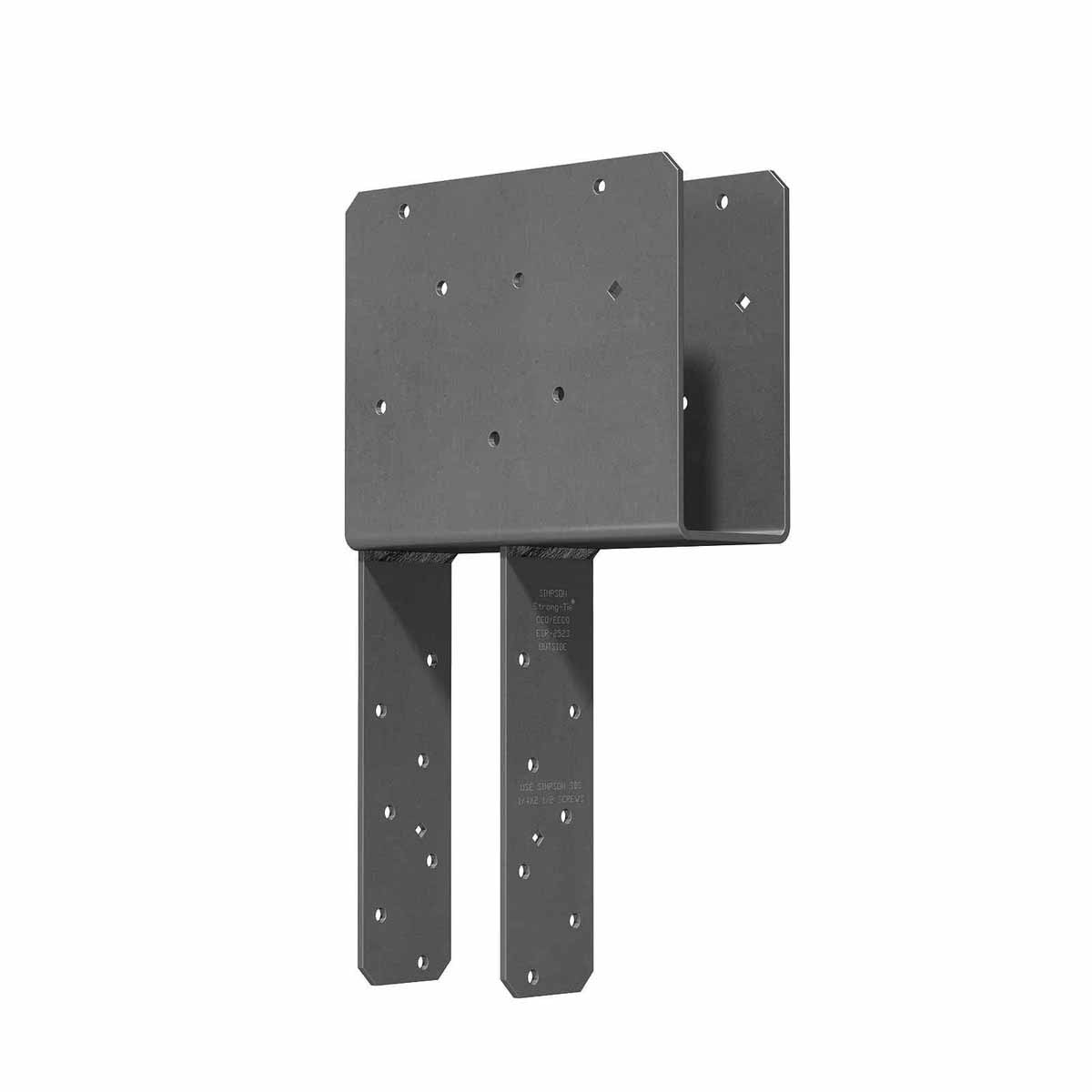

Simpson Strong-Tie ECCQ3-6SDS2.5HDG Description
The Simpson ECCQ3-6SDS2.5HDG End Column Cap enhances the strength and stability of wood construction projects, providing strong column-to-beam connections with a durable hot-dip galvanized steel design.
Simpson Strong-Tie ECCQ3-6SDS2.5HDG Includes
- (1) End Column Cap
- (1) Set of Simpson Strong-Drive SDS connector screws
Simpson Strong-Tie ECCQ3-6SDS2.5HDG Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from steel for durability
- Finished with hot-dip galvanized coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCQ3-6SDS2.5HDG Applications
- Column-to-beam connections in wood construction
- End-of-beam applications for enhanced structural support
Simpson Strong-Tie ECCQ3-6SDS2.5HDG Installation Overview
- Align the column cap with the beam and column
- Secure the cap using the included SDS screws
- Ensure proper alignment and fastening for optimal load distribution
Simpson Strong-Tie ECCQ3-6SDS2.5HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Steel |
| Beam size | 3-1/8x |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | Yes |
| Post size | 6x |
| Thickness | 7 Gauge |
