Simpson ECCQ44SDS2.5 Description

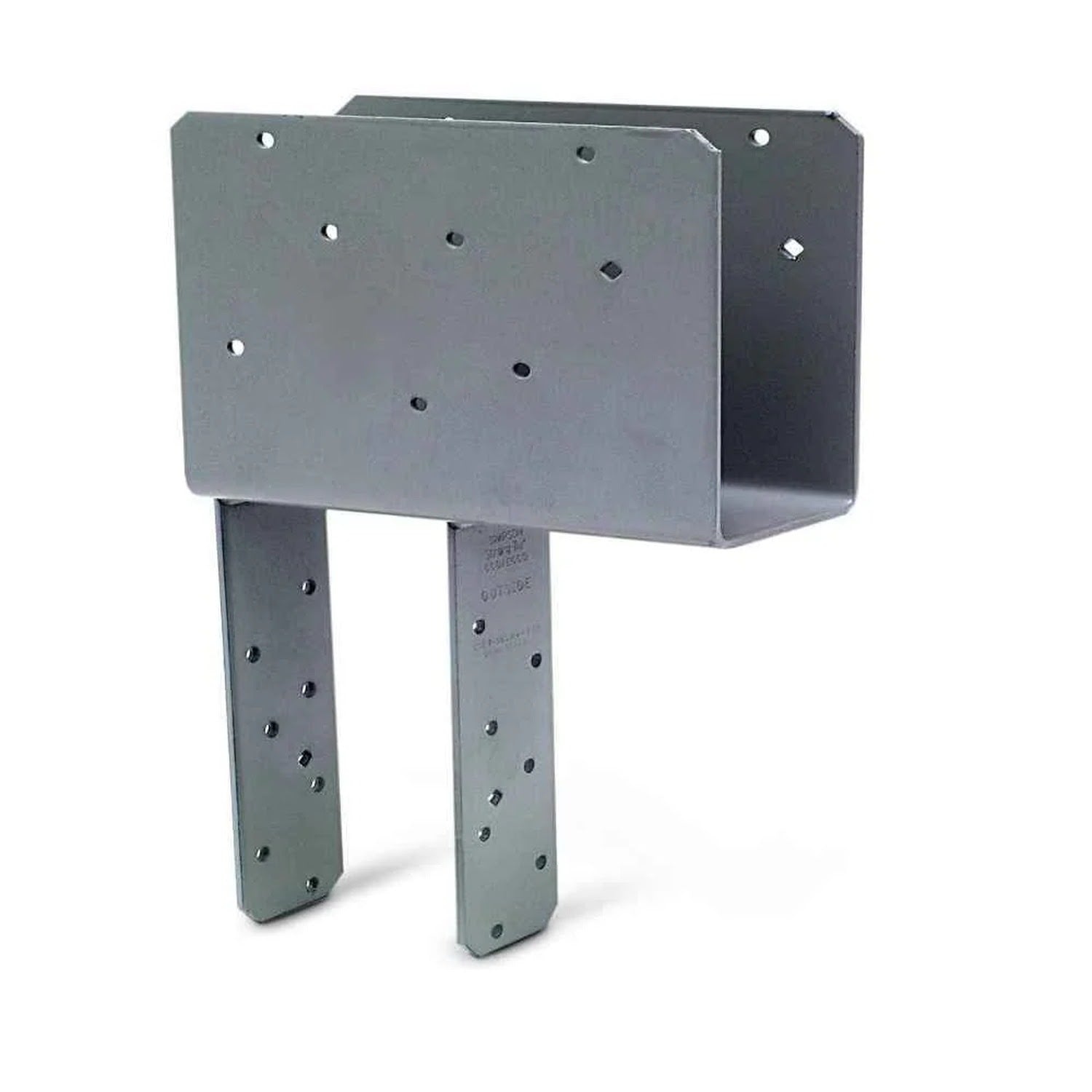

The Simpson ECCQ44SDS2.5 End Column Cap with SDS Screws is designed for strong column-to-beam connections in wood construction, featuring durable steel construction and gray paint finish.
Simpson ECCQ44SDS2.5 Includes
- (1) End Column Cap
- (1) Set of SDS Screws
Simpson ECCQ44SDS2.5 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson ECCQ44SDS2.5 Applications
- Column-to-beam connections in wood construction
- End-of-beam applications for structural support
- Projects requiring increased uplift loads for earthquake or wind resistance
Simpson ECCQ44SDS2.5 Installation Overview
- Verify dimensions and alignment of the column and beam
- Position the column cap on the column and beam
- Secure the cap using the included SDS screws
- Ensure all fasteners are tightened according to specifications
Simpson ECCQ44SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 4x |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 7 Gauge |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
Toolup Part # :
248703
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
