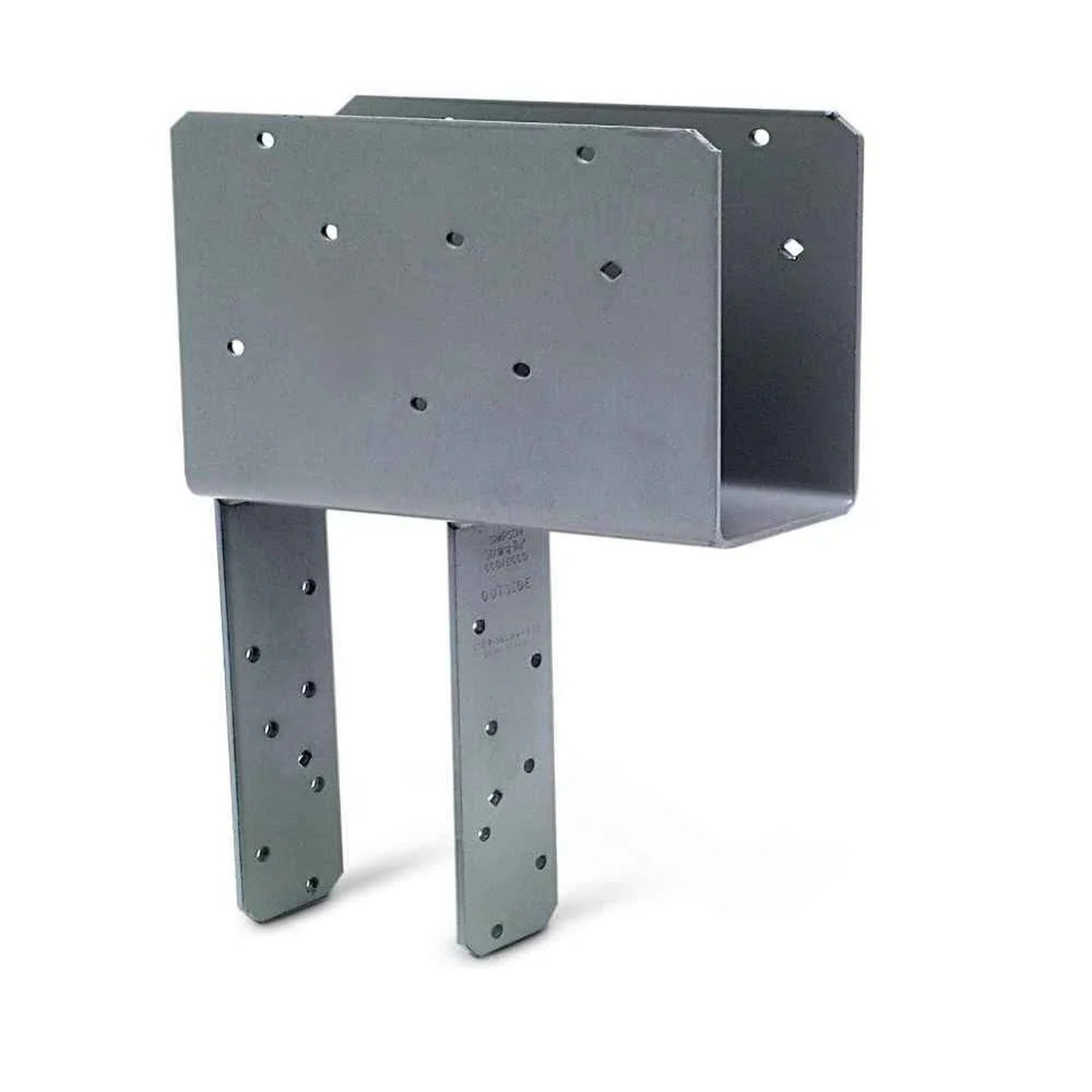

Simpson Strong-Tie ECCQ46SDS2.5 (4x Beam, 6x Post) End Column Cap with SDS Screws

Name: Simpson Strong-Tie ECCQ46SDS2.5 (4x Beam, 6x Post) End Column Cap with SDS Screws
Brand: Simpson Anchors
SKU: 248704
Price: 127.24 USD
Availability: InStock

$127.24 ~~$182.99~~

Description

Simpson ECCQ46SDS2.5 Description

The Simpson ECCQ46SDS2.5 End Column Cap provides strong and reliable column-to-beam connections for wood construction, featuring durable steel construction and a gray paint finish.

Simpson ECCQ46SDS2.5 Includes

(1) End Column Cap
(14) 1/4" x 2 1/2" SDS Heavy-Duty Connector Screws

Simpson ECCQ46SDS2.5 Features

Provides strong end-of-beam connection for column-to-beams
Extended area of the column seat offers additional surface area of bearing to distribute the load
Made from durable heavy-gauge steel
Finished with Gray Paint coating
Certified welds for strength and loading
Increased uplift loads for earthquake or wind loading
Features diamond holes for temporary fastening during installation
Bolt spacing meets NDS code requirements

Simpson ECCQ46SDS2.5 Applications

Wood construction requiring column-to-beam connections
End-of-beam applications for enhanced structural support
Projects needing increased uplift load capacity for earthquake or wind loading

Simpson ECCQ46SDS2.5 Installation Overview

Fasten with 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws provided with the column cap
Use stainless-steel Strong-Drive screws with stainless-steel connectors
Provide dimensions for rough-cut lumber sizes
Optional W2 dimension may be specified with any column size given

Simpson ECCQ46SDS2.5 Specifications

Finish	Gray Paint
Material	Steel
Beam size	4x
Post size	6x
Thickness	7 Gauge
Fasteners required	All Fasteners Included
For Treated Lumber	No

NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
