Simpson Anchors | SKU:
ECCQ5-6SDS2.5HDG

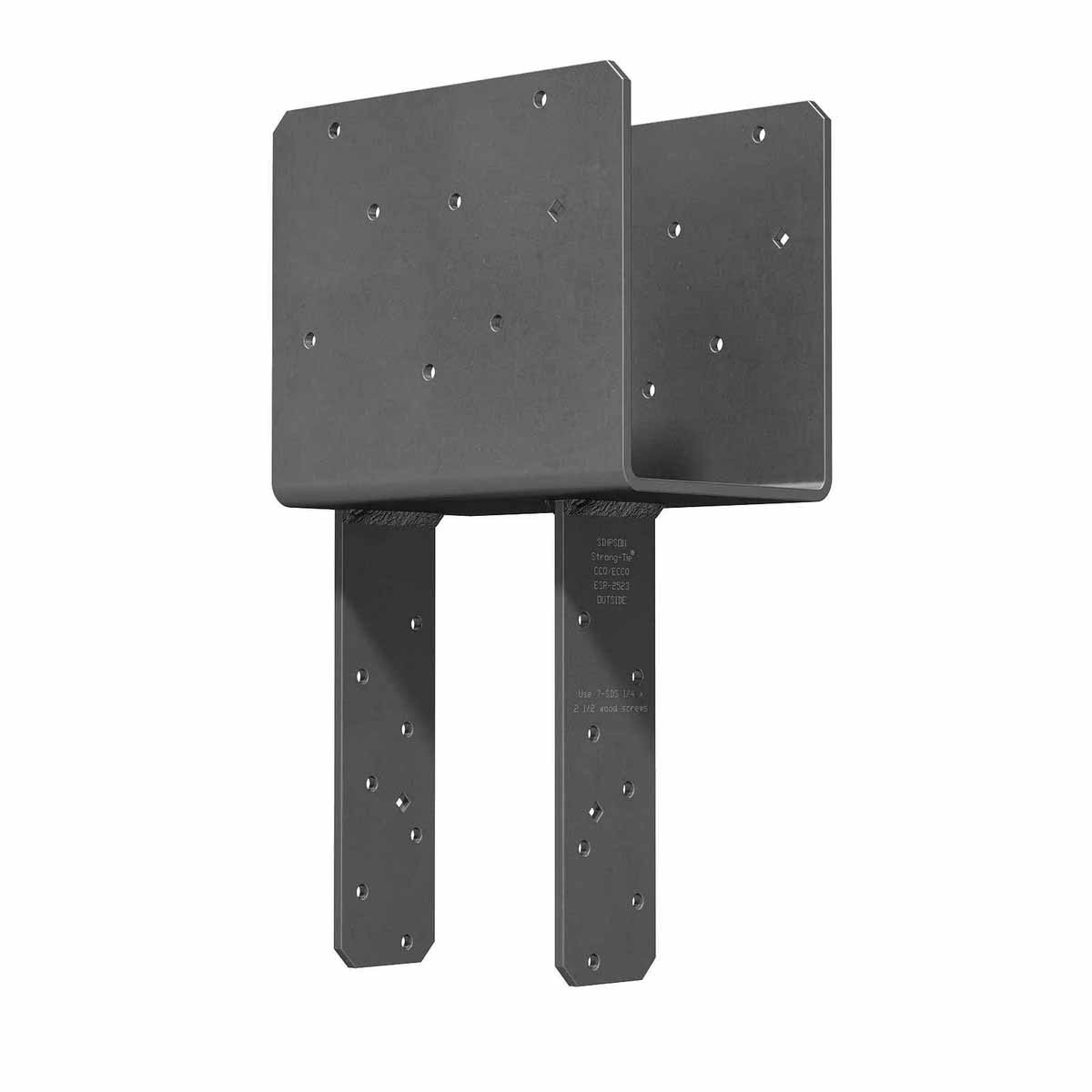

Simpson Strong-Tie ECCQ5-6SDS2.5HDG (5-1/8" Beam, 6x Post) Quick Install HDG End Column Cap with SDS Screws
Free Shipping
$208.21
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECCQ5-6SDS2.5HDG Description
The Simpson ECCQ5-6SDS2.5HDG End Column Cap enhances the strength and stability of wood construction projects, providing strong column-to-beam connections with a durable hot-dip galvanized steel design.
Simpson Strong-Tie ECCQ5-6SDS2.5HDG Includes
- (1) End Column Cap
- (14) 1/4" x 2-1/2" SDS Screws for Beam
- (14) 1/4" x 2-1/2" SDS Screws for Post
Simpson Strong-Tie ECCQ5-6SDS2.5HDG Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from durable steel with a hot-dip galvanized finish
- Certified welds for strength and increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
Simpson Strong-Tie ECCQ5-6SDS2.5HDG Applications
- Wood construction projects requiring strong column-to-beam connections
- End-of-beam applications for enhanced structural support
Simpson Strong-Tie ECCQ5-6SDS2.5HDG Installation Overview
- Align the column cap with the beam and post as per the design specifications.
- Secure the cap using the provided SDS screws, ensuring proper alignment and spacing.
- Verify all connections meet the required load specifications.
Simpson Strong-Tie ECCQ5-6SDS2.5HDG Specifications
| Finish | Hot Dip Galvanized |
| Length | 8-1/2" |
| Material | Steel |
| Beam size | 5-1/8X |
| Fasteners required | Beam - (14) 1/4" x 2-1/2" SDS Screws; Post - (14) 1/4" x 2-1/2" SDS Screws |
| Height | 7" |
| Post size | 6x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
