Simpson Anchors | SKU:
ECCQ5-6SDS2.5ROT

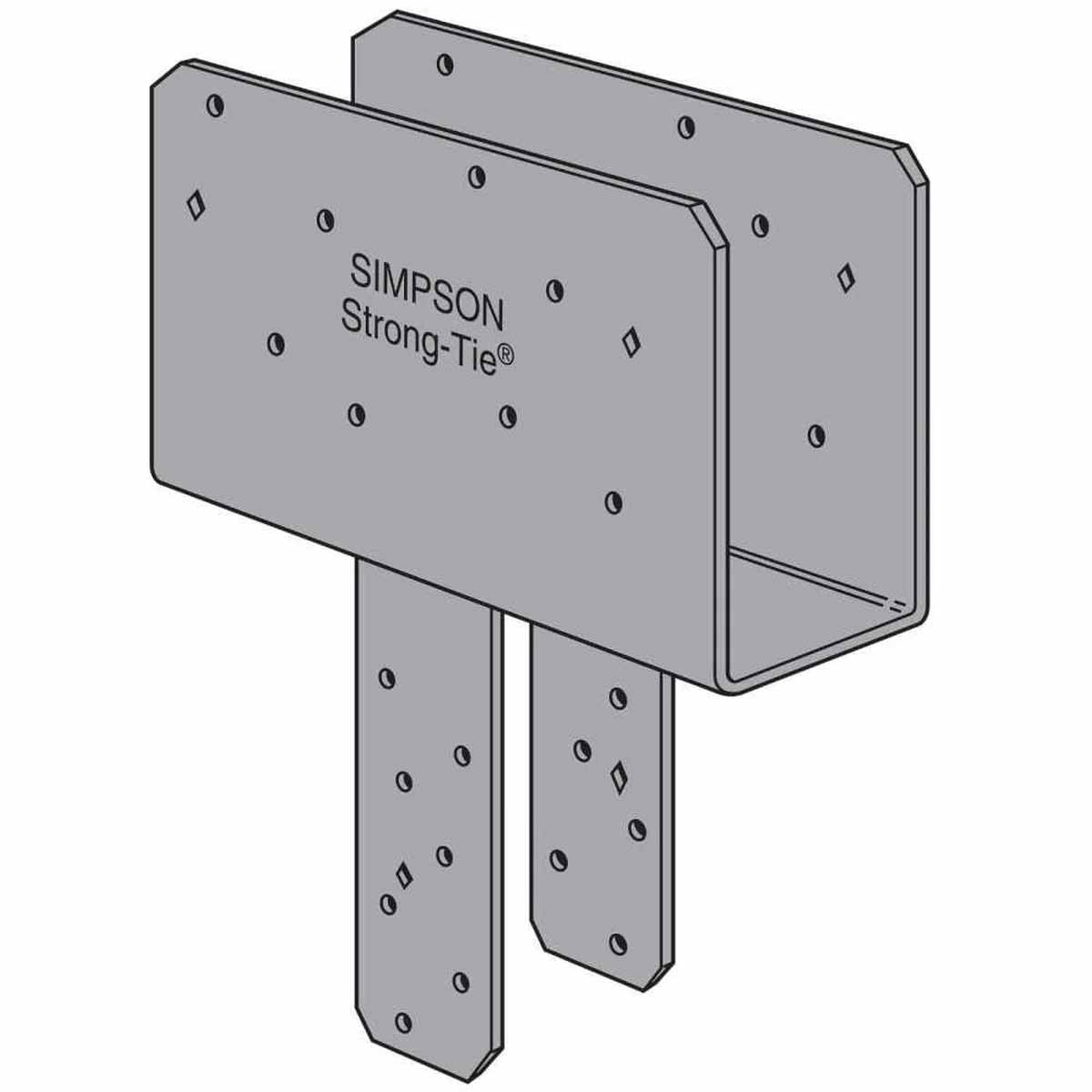

Simpson Strong-Tie ECCQ5-6SDS2.5ROT (5-1/8" Beam, 6x Post) Quick Install End Column Cap, Rotated Straps
$159.69
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECCQ5-6SDS2.5ROT Description
The Simpson ECCQ5-6SDS2.5ROT End Column Cap enhances the strength and stability of wood construction projects, providing strong column-to-beam connections.
Simpson Strong-Tie ECCQ5-6SDS2.5ROT Includes
- (1) End Column Cap
- (1) Set of SDS Screws
Simpson Strong-Tie ECCQ5-6SDS2.5ROT Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCQ5-6SDS2.5ROT Applications
- Column-to-beam connections in wood construction
- End-of-beam applications requiring enhanced support
Simpson Strong-Tie ECCQ5-6SDS2.5ROT Installation Overview
- Align the column cap with the beam and column
- Secure the cap using the included SDS screws
- Ensure proper alignment and fastening according to NDS code requirements
Simpson Strong-Tie ECCQ5-6SDS2.5ROT Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 5-1/8x |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
