Simpson ECCQ66SDS2.5 Description

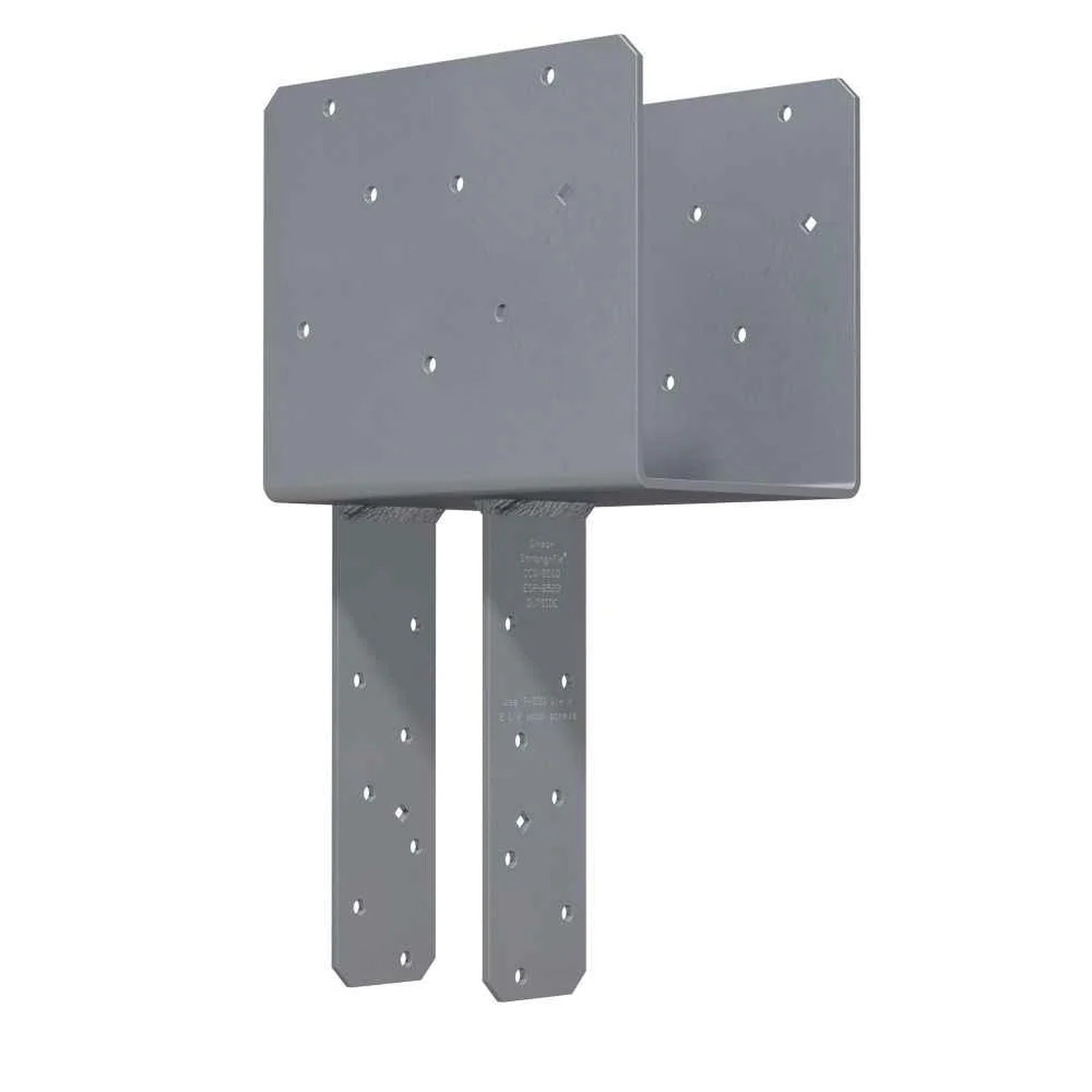

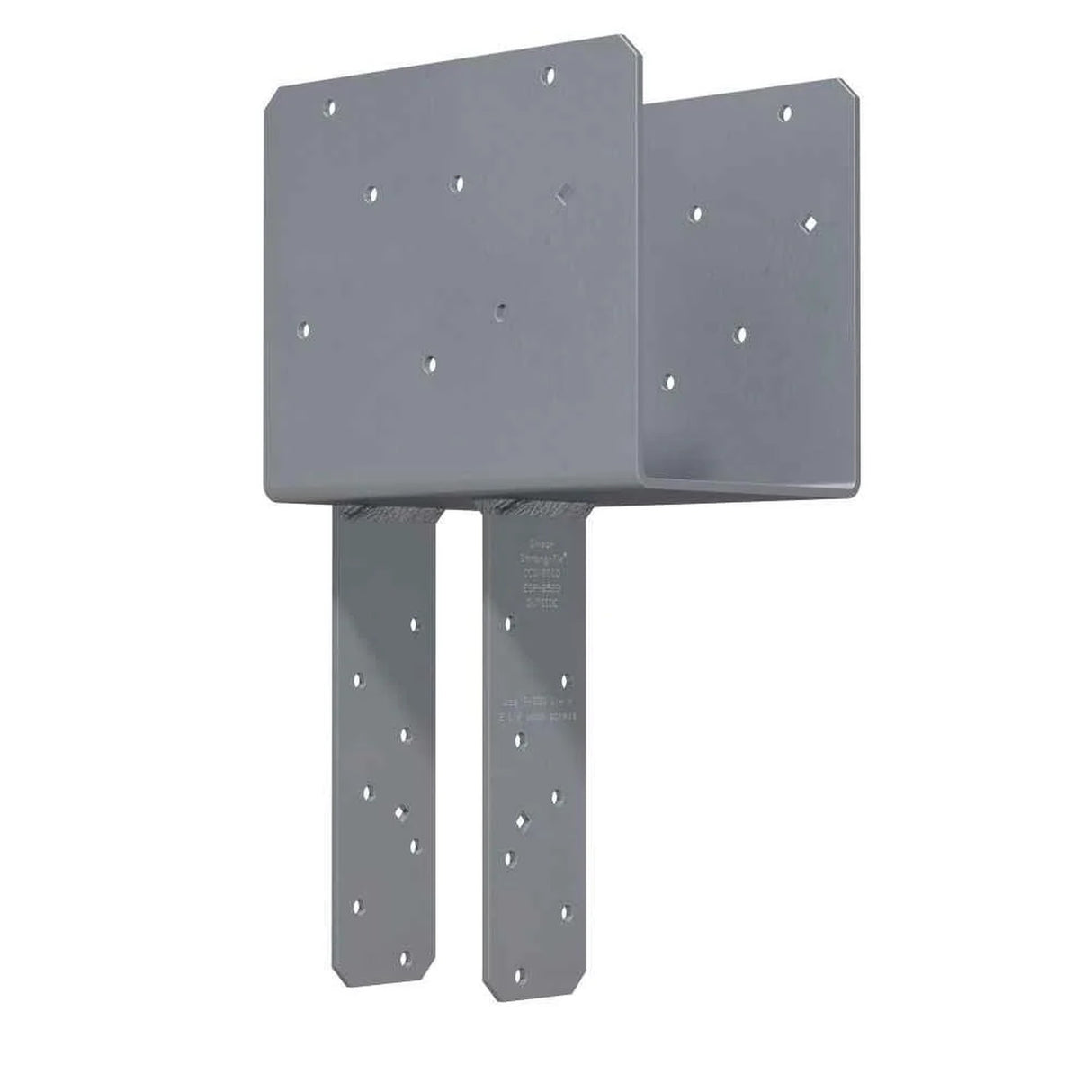

The Simpson ECCQ66SDS2.5 End Column Cap enhances the strength and stability of your construction projects, providing reliable column-to-beam connections for wood construction.
Simpson ECCQ66SDS2.5 Includes
- (1) End Column Cap
- (1) Set of SDS Screws
Simpson ECCQ66SDS2.5 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson ECCQ66SDS2.5 Applications
- Column-to-beam connections in wood construction
- End-of-beam applications for enhanced structural support
- Use with 6x posts or columns
Simpson ECCQ66SDS2.5 Installation Overview
- Align the column cap with the beam and post
- Secure using the included SDS screws
- Ensure proper alignment and fastening according to NDS code requirements
Simpson ECCQ66SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 6x |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 7 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
248709
