Simpson Anchors | SKU:
ECCQ74SDS2.5

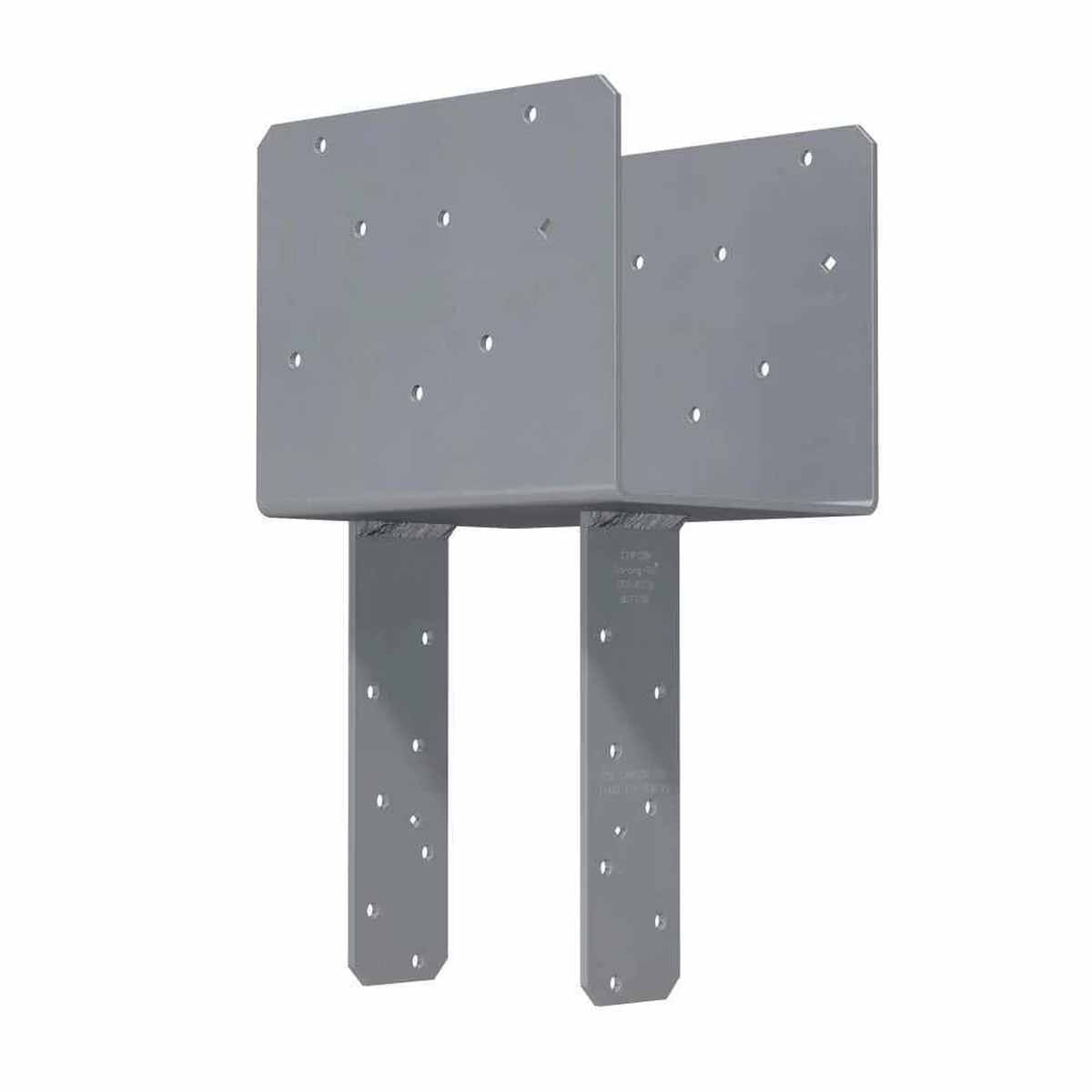

Simpson Strong-Tie ECCQ74SDS2.5 (6-3/4" Beam, 4x Post) Quick Install End Column Cap with SDS Screws
$184.69
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ECCQ74SDS2.5 Description
The Simpson ECCQ74SDS2.5 End Column Cap enhances the strength and stability of wood construction projects, providing a high-capacity wood-to-wood connection for 6-3/4" beams and 4x posts.
Simpson Strong-Tie ECCQ74SDS2.5 Includes
- (1) End Column Cap
- (1) Set of SDS Screws
Simpson Strong-Tie ECCQ74SDS2.5 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from durable heavy-gauge steel
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCQ74SDS2.5 Applications
- Column-to-beam connections in wood construction
- End-of-beam applications for enhanced structural support
Simpson Strong-Tie ECCQ74SDS2.5 Installation Overview
- Align the column cap with the beam and post
- Secure the cap using the included SDS screws
- Ensure bolt spacing meets NDS code requirements
- Verify the connection for stability and load distribution
Simpson Strong-Tie ECCQ74SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 6-3/4x |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 3 Gauge |
