Simpson Anchors | SKU:
EPB44-12HDG

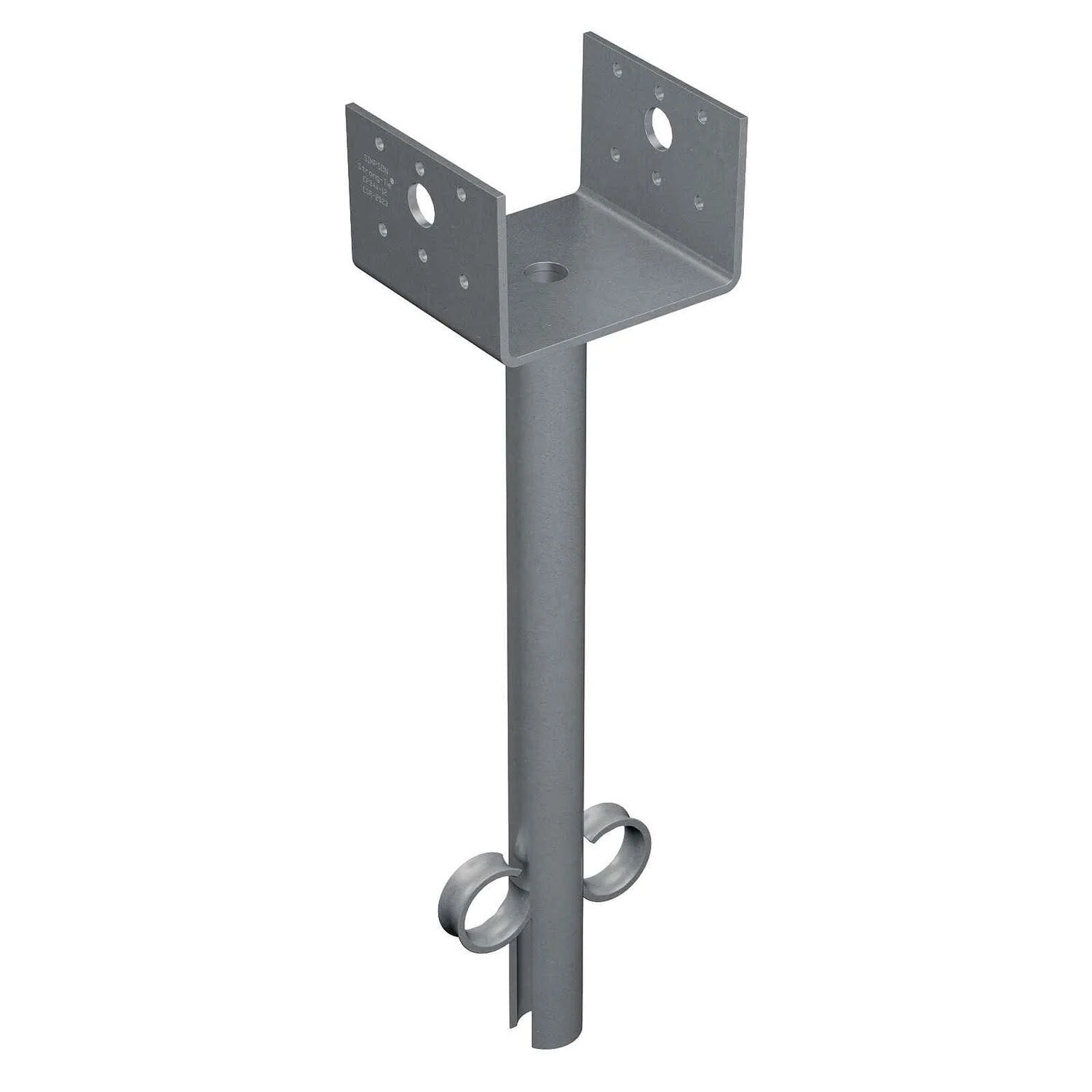

Simpson Strong-Tie EPB44-12HDG (4x4 with 12") Hot-Dip Galvanized Elevated Post Base - Adjustable Standoff for Concrete
$30.96
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie EPB44-12HDG Description
The Simpson EPB44-12HDG is a hot-dip galvanized elevated post base designed for 4x4 posts, featuring a 12-inch pipe and adjustable standoff for concrete applications.
Simpson Strong-Tie EPB44-12HDG Includes
- (1) Hot-Dip Galvanized Elevated Post Base
Simpson Strong-Tie EPB44-12HDG Features
- Hot-dip galvanized for corrosion resistance
- Designed for 4x4 posts
- Adjustable standoff for concrete applications
- 12-inch pipe for elevated support
- Durable steel construction
Simpson Strong-Tie EPB44-12HDG Applications
- Concrete installations requiring elevated post bases
- 4x4 post support in construction projects
- Prevention of rot or decay at post ends
Simpson Strong-Tie EPB44-12HDG Installation Overview
- Drill a 7/8-inch diameter hole 4 inches deep and fill halfway with anchoring adhesive.
- Insert the EPB44-12HDG and adjust to the desired height.
- Ensure the threaded rod is embedded a minimum of 3-1/2 inches.
- Secure with a nut and bearing plate for cast-in-place installations.
Simpson Strong-Tie EPB44-12HDG Specifications
| Material | Steel |
| Finish | Hot-Dip Galvanized |
| Post Size | 4x4 |
| Height | 2-5/16" |
| Width | 3-9/16" |
| Length | 3-1/4" |
| Thickness | 12 Gauge |
| Fasteners Required | (8) 0.162" x 3-1/2" Nails |
NOTE: Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
