Simpson Anchors | SKU:
EPB44HDGMB

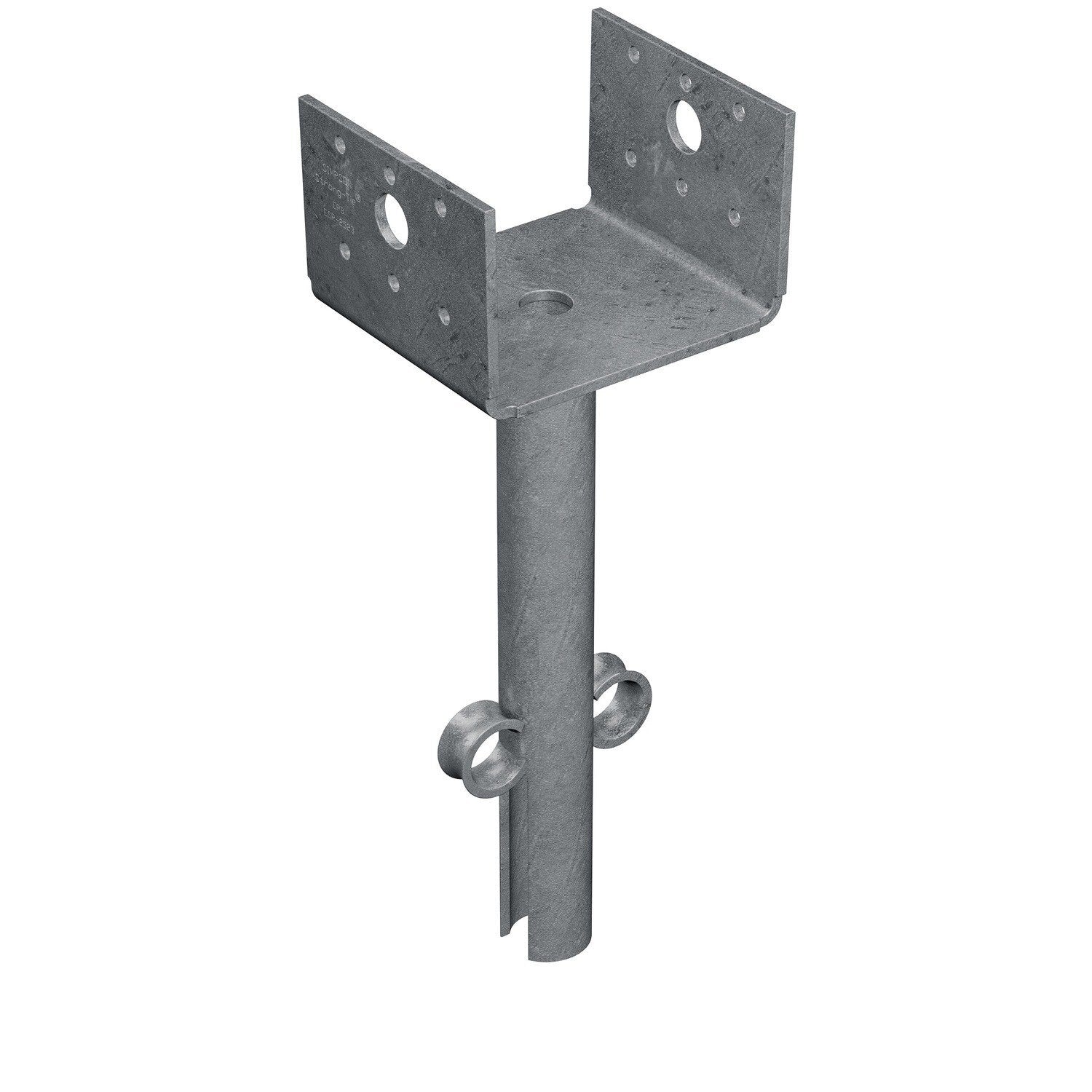

Simpson Strong-Tie EPB44HDGMB (4" x 4") Hot-Dip Galvanized Elevated Post Base (50 Pack)
Free Shipping
$1,361.91
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie EPB44HDGMB Description
The EPB44HDGMB is a hot-dip galvanized elevated post base designed for 4x4 posts, providing durable and reliable support for various construction applications.
Simpson Strong-Tie EPB44HDGMB Includes
- (50) Hot-Dip Galvanized Elevated Post Base for 4x4
Simpson Strong-Tie EPB44HDGMB Features
- Hot-dip galvanized for corrosion resistance
- Designed for 4x4 posts
- Provides 1" to 2 1/2" clearance above concrete
- Durable 12-gauge base plate construction
Simpson Strong-Tie EPB44HDGMB Applications
- Concrete: Suitable for securing posts in concrete foundations
- Construction: Ideal for structural support in wood construction projects
Simpson Strong-Tie EPB44HDGMB Installation Overview
- Drill a 7/8"-diameter hole 4" deep minimum and fill halfway with anchoring adhesive.
- Insert the EPB44HDGMB and adjust to the desired height.
- Ensure the threaded rod is embedded a minimum of 3 1/2".
- For cast-in-place, embed the end with a nut and bearing plate at least 4" from the top of the concrete.
Simpson Strong-Tie EPB44HDGMB Specifications
| Material | 12-gauge base plate |
| Finish | Hot-Dip Galvanized |
| Dimensions | 3 9/16" W x 2 5/16" H x 3 1/4" L |
| Packaging Quantity | 50 |
NOTE: Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
