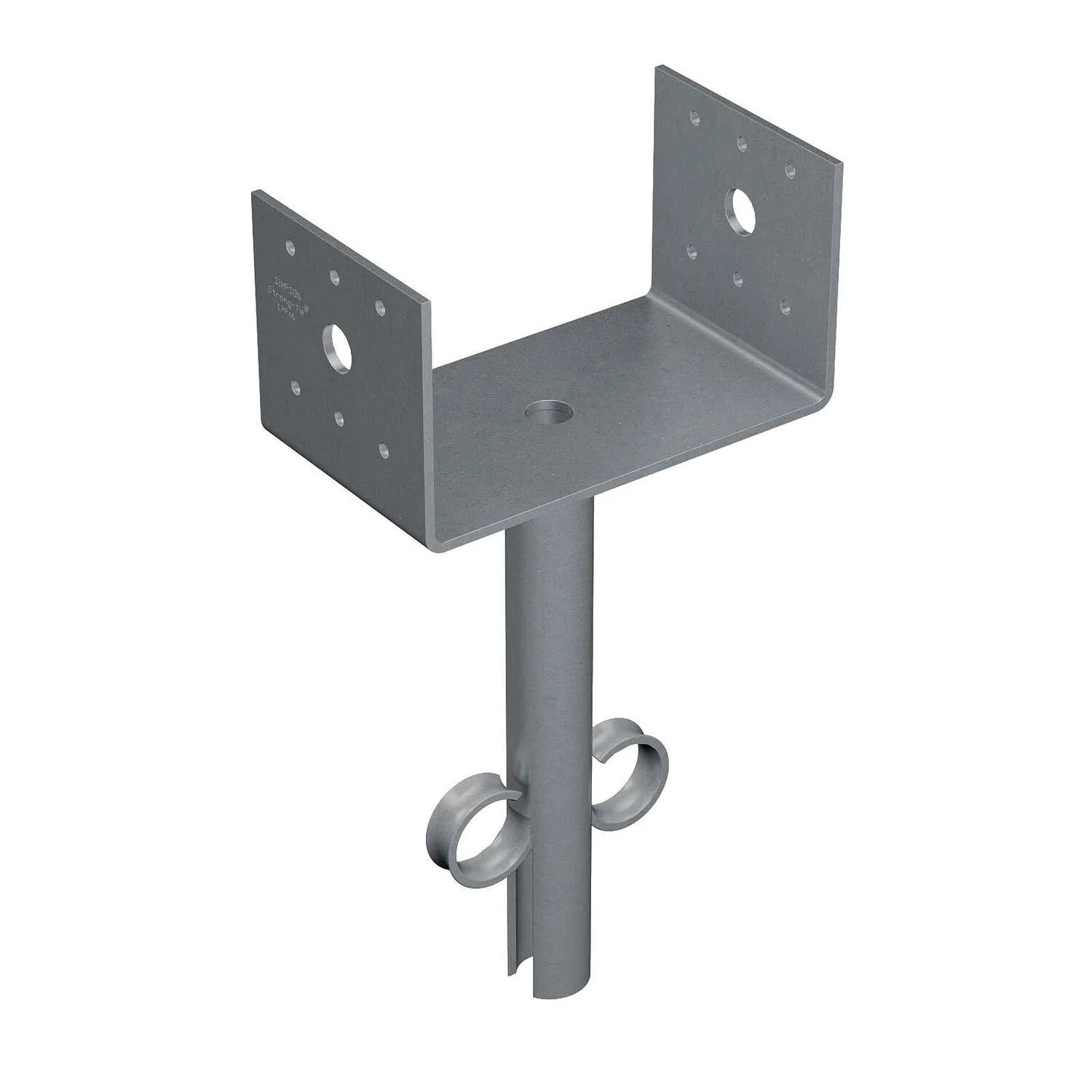

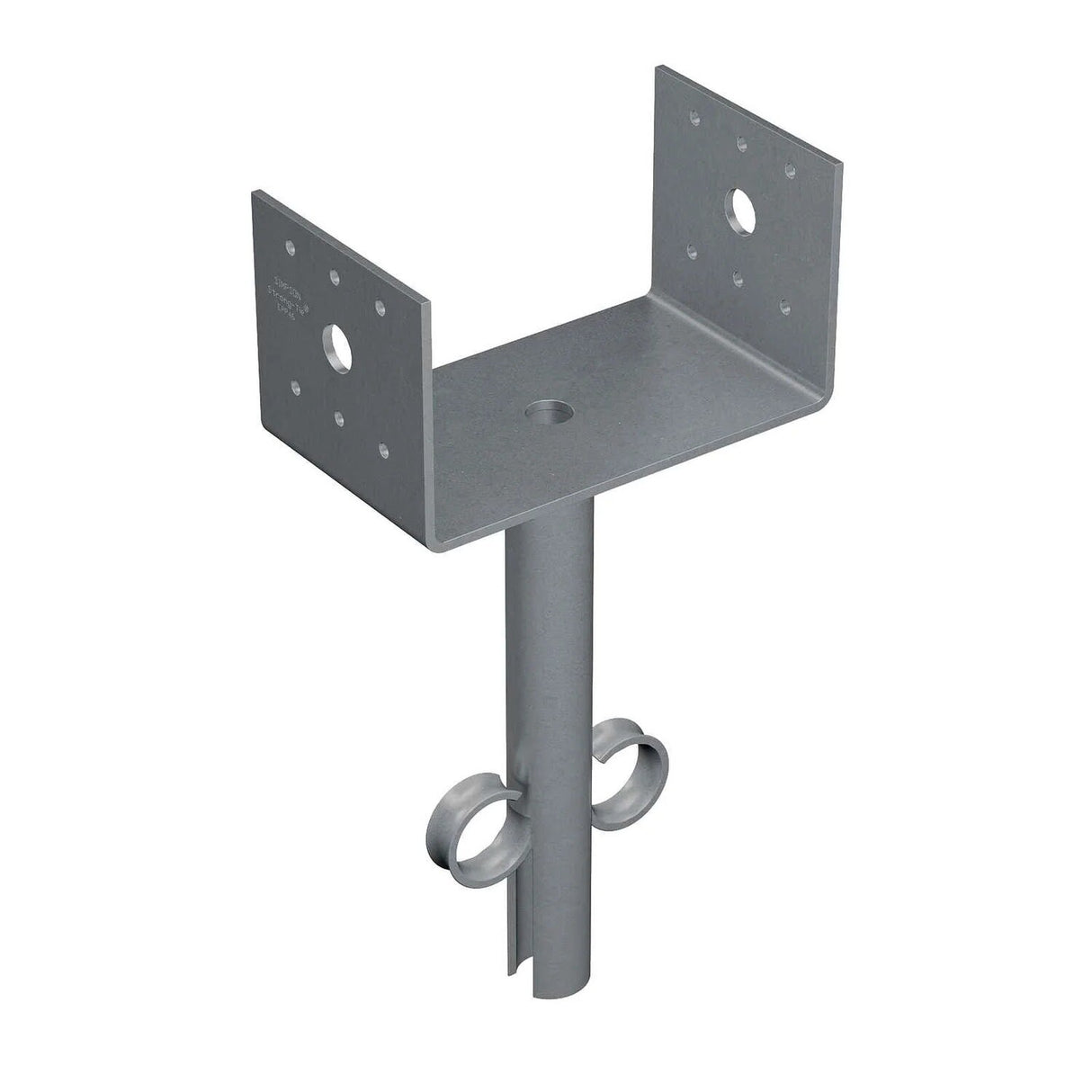

Simpson Strong-Tie EPB46-12 (4" x 6") Elevated Post Base with 12-in. Pipe
$33.16
$47.70
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie EPB46-12 Description
The Simpson EPB46-12 Elevated Post Base is designed for 4x6 posts, providing a secure and durable connection to concrete with a 12-inch pipe and gray paint finish.
Simpson Strong-Tie EPB46-12 Includes
- (1) Elevated Post Base for 4x6 with 12-in. Pipe
Simpson Strong-Tie EPB46-12 Features
- Designed to provide an elevated post base and cast-in-place into concrete
- Made from heavy-gauge steel for durability
- Finished with a gray paint coating for added protection
- 2-inch standoff for moisture barrier and thin finish surface
- Code-required 1-inch standoff to prevent rot or decay
Simpson Strong-Tie EPB46-12 Applications
- Securing 4x6 posts or columns in construction projects
- Providing a durable connection to concrete foundations
- Enhancing stability and strength in structural applications
Simpson Strong-Tie EPB46-12 Installation Overview
- Position the post base in the desired location before pouring concrete
- Ensure the base is aligned and level during installation
- Secure the post to the base using the specified fasteners
Simpson Strong-Tie EPB46-12 Specifications
| Finish | Gray Paint |
| Length | 3-5/16" |
| Material | Steel |
| Fasteners required | (12) 0.162" x 3-1/2" Nails |
| Height | 3" |
| Post size | 4x6 |
| Thickness | 12 Gauge |
| Width | 5-1/2" |
